Product Detailed Parameters
- Description：MEDIUM POWER ECONO
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

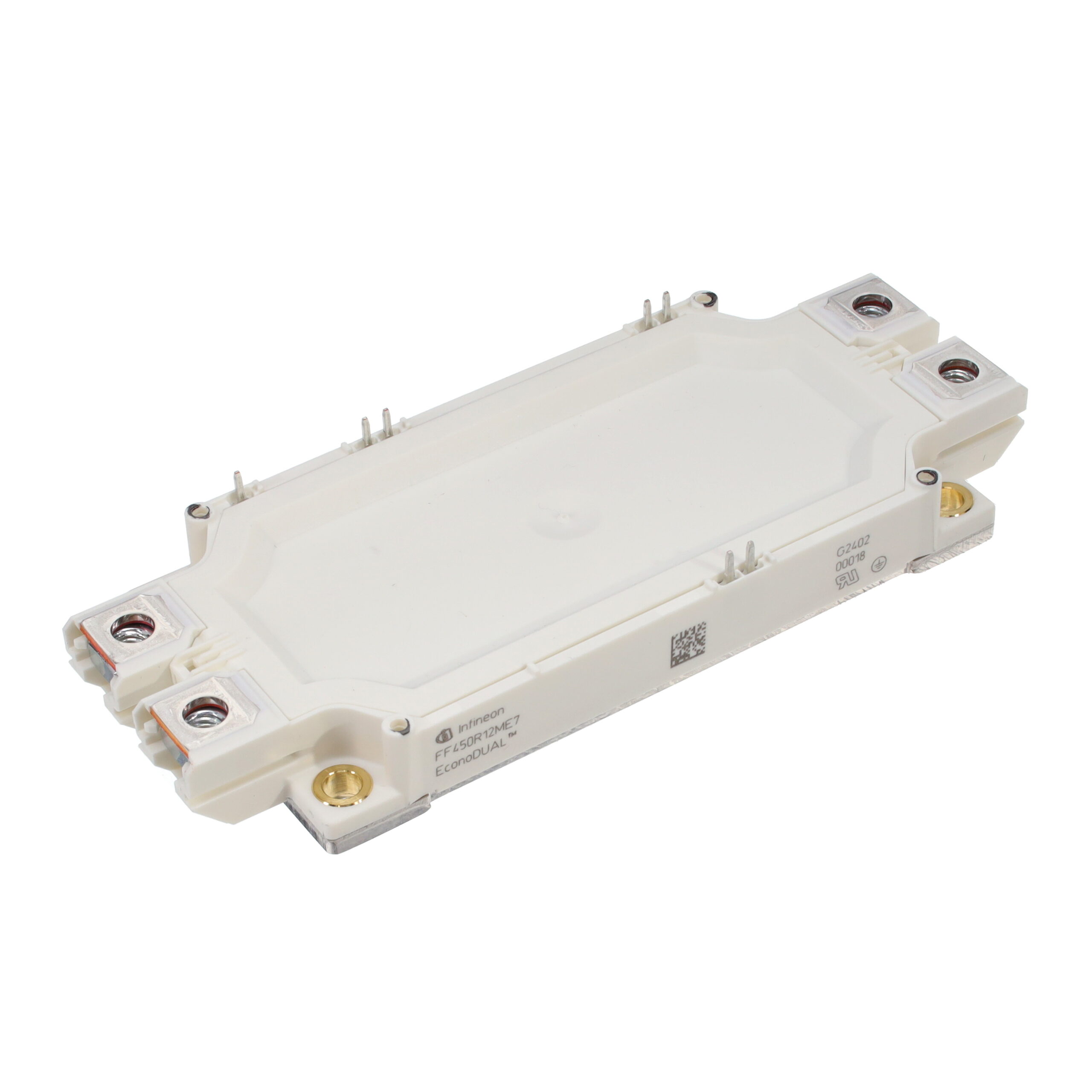

The FF450R12ME7BPSA1 is a half-bridge IGBT module from Infineon's EconoDUAL™3 series, utilizing TRENCHSTOP™ IGBT7 technology. It features an isolated copper baseplate and solder contact terminals. The device supports a collector-emitter voltage of 1200 V and a continuous DC collector current of 450 A at a case temperature of 90 °C. Repetitive peak currents reach 900 A. The integrated NTC thermistor has a rated resistance of 5 kΩ at 25 °C. Operating junction temperatures range from -40 °C to 175 °C.
Feature Summary
- TRENCHSTOP™ IGBT7 technology with positive temperature coefficient for safe parallel operation
- Integrated emitter-controlled diode and NTC thermistor for thermal monitoring
- Isolated copper baseplate with standard housing dimensions
Applications
- High-power converters
- Motor drives
- Servo drives
- UPS systems
- Commercial agriculture vehicles
Procurement Notes
Verify the specific ordering suffix against official documentation to confirm terminal configuration and packaging details. Ensure compatibility with recommended gate drivers listed in the manufacturer's guide. Confirm that the application environment meets the specified insulation coordination and mounting torque requirements outlined in the datasheet.
Selection Notes
Select this component for high-power density industrial applications requiring robust short-circuit withstand capability. Evaluate thermal management strategies based on the provided junction-to-case thermal resistance values. Verify that the switching frequency and load conditions align with the energy loss characteristics defined in the typical performance diagrams.
Part Context
This module belongs to the EconoDUAL™3 family, designed for industrial power electronics. It replaces previous generations like the ME4 series by offering improved switching performance through TRENCHSTOP™ IGBT7 technology. The standardized housing facilitates direct replacement in existing designs while providing enhanced electrical isolation and thermal conductivity.
Replacement Considerations
Direct replacements within the same package include other FF450R12 variants such as FF450R12ME4 or FF450R12KT4. Verify pinout compatibility and thermal resistance specifications before substitution. Note that different technologies may alter switching losses and gate drive requirements.
