FF600R12ME4WB73BPSA1

Overview

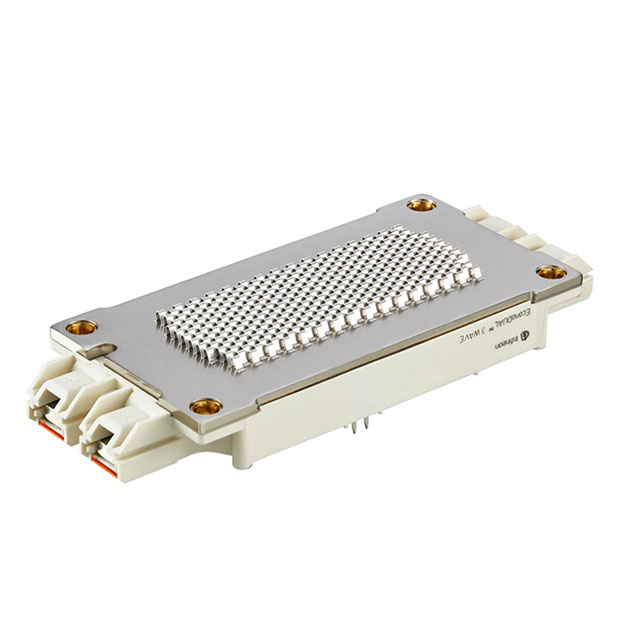

The FF600R12ME4WB73BPSA1 is a dual IGBT module from Infineon Technologies, utilizing the EconoDUAL™3 package. It features Trench/Fieldstop IGBT4 technology and an emitter-controlled diode. The device supports a collector-emitter voltage of 1200 V and a nominal continuous DC collector current of 600 A at a junction temperature of 150°C. The maximum repetitive peak collector current reaches 1200 A. Key electrical parameters include a typical saturation voltage of 1.75 V at 25°C and a gate threshold voltage ranging from 5.20 V to 6.40 V. The module incorporates an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C for thermal monitoring.

Feature Summary

• Integrates Trench/Fieldstop IGBT4 technology with an emitter-controlled diode for optimized switching performance.
• Features a direct-cooled isolated base plate constructed from copper to ensure high power density and efficient heat dissipation.
• Includes an embedded NTC thermistor for precise internal temperature monitoring during operation.
• Designed with PressFIT terminal connections to facilitate secure mounting and reliable electrical contact.

Applications

• High-power converters
• Motor drives
• Servo drives
• UPS systems
• Wind turbines

Procurement Notes

Verify component authenticity by cross-referencing the unique serial number and material code found on the module label against official Infineon records. Confirm that the specific ordering suffix matches the required terminal connection type, as variations exist between solder pin and PressFIT configurations within the same product family.

Selection Notes

Select this module for applications requiring robust industrial qualification under IEC standards. Ensure the cooling system can maintain the fluid temperature at 60°C to achieve the specified thermal resistance values. Verify that the gate driver circuitry provides the recommended ±15 V drive voltage to optimize switching losses and prevent overvoltage conditions.

Part Context

This component belongs to the Infineon EconoDUAL™3 series, which is engineered for high-density power electronics. The module utilizes advanced silicon technology to deliver high current handling capabilities within a standardized housing form factor. It is designed to replace previous generation modules in industrial inverter architectures while offering improved thermal management characteristics.

Replacement Considerations

Consult the official Infineon replacement guide for verified substitute part numbers. Ensure any alternative component matches the mechanical footprint, pinout configuration, and electrical ratings to maintain system compatibility without redesigning the printed circuit board or heatsink interface.

FAQ

What is the maximum operating junction temperature for this module?

The module is qualified for an operating junction temperature range up to 150°C under switching conditions.

How is the internal temperature monitored?

An integrated NTC thermistor is included, providing a rated resistance of 5 kΩ at 25°C to allow for real-time thermal feedback.

What insulation class does the module meet?

The module provides basic insulation (Class 1) according to IEC 61140, with an isolation test voltage of 3.4 kV RMS.
