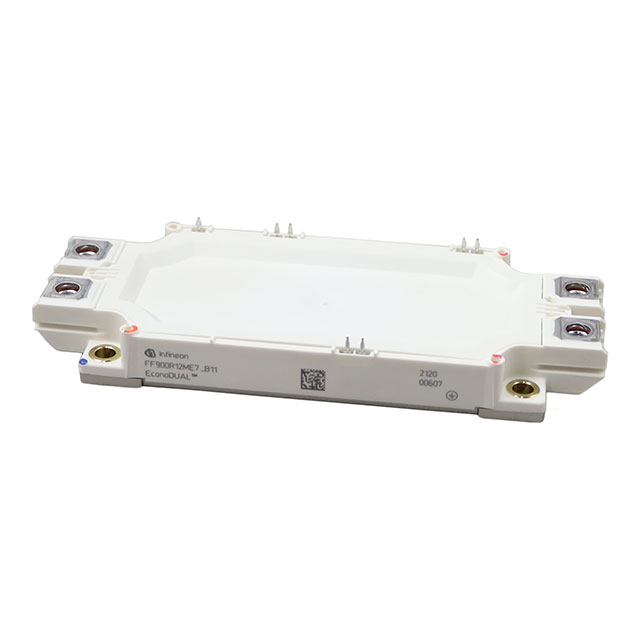

FF900R12ME7B11NPSA1

$168.73

Description：MEDIUM POWER ECONO
Series：EconoDUAL™ 3

SKU:2c8da3ab0f87 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MEDIUM POWER ECONO
Series：EconoDUAL™ 3
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：2 Independent
Vce(on) (Max) @ Vge, Ic：1.8V @ 15V, 900A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-ECONOD-3
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：900 A
Power - Max：-
Current - Collector Cutoff (Max)：100 µA
Input Capacitance (Cies) @ Vce：122 nF @ 25 V

Download product information

FF900R12ME7B11NPSA1

Overview

The FF900R12ME7B11NPSA1 is a half-bridge IGBT module from Infineon's EconoDUAL™3 series, utilizing TRENCHSTOP™ IGBT7 technology. It features an isolated copper baseplate and PressFIT contact technology for robust mechanical integration. The device supports a collector-emitter voltage of 1200 V with a continuous DC collector current of 900 A at 90 °C case temperature. Key electrical parameters include a typical saturation voltage of 1.50 V and forward voltage of 1.80 V at 25 °C. An integrated NTC thermistor provides thermal monitoring, rated at 5 kΩ at 25 °C.

Feature Summary

TRENCHSTOP™ IGBT7 technology providing high power density and leading-edge power cycling capability
PressFIT contact technology ensuring excellent mechanical robustness and simplified assembly
Integrated NTC thermistor for efficient inverter designs and reliable thermal management
Isolated baseplate design with basic insulation class 1 compliance

Applications

Motor drives
Servo drives
UPS systems
Commercial agriculture vehicles
High-power converters

Procurement Notes

Verify the specific ordering suffix against official documentation to confirm component configuration. Ensure compatibility with recommended gate drivers listed by the manufacturer. Confirm that the application environment meets the specified industrial qualification standards and operating temperature ranges defined in the datasheet.

Selection Notes

Select this module for applications requiring high current handling and robust mechanical connections. Consider the thermal resistance values when designing the heatsink interface. Verify that the PCB hole pattern matches the EconoDUAL™3 package dimensions. Ensure the mounting torque adheres to the specified limits to maintain electrical isolation and thermal performance.

Part Context

This component belongs to the EconoDUAL™3 family, which supports current ranges up to 900 A across various voltage classes. The series integrates state-of-the-art trench field-stop technology to maximize efficiency. Modules in this lineup are designed for industrial applications, offering standardized housing and flexible terminal options for diverse power conversion needs.
