FF900R12ME7PB11BPSA1

Overview

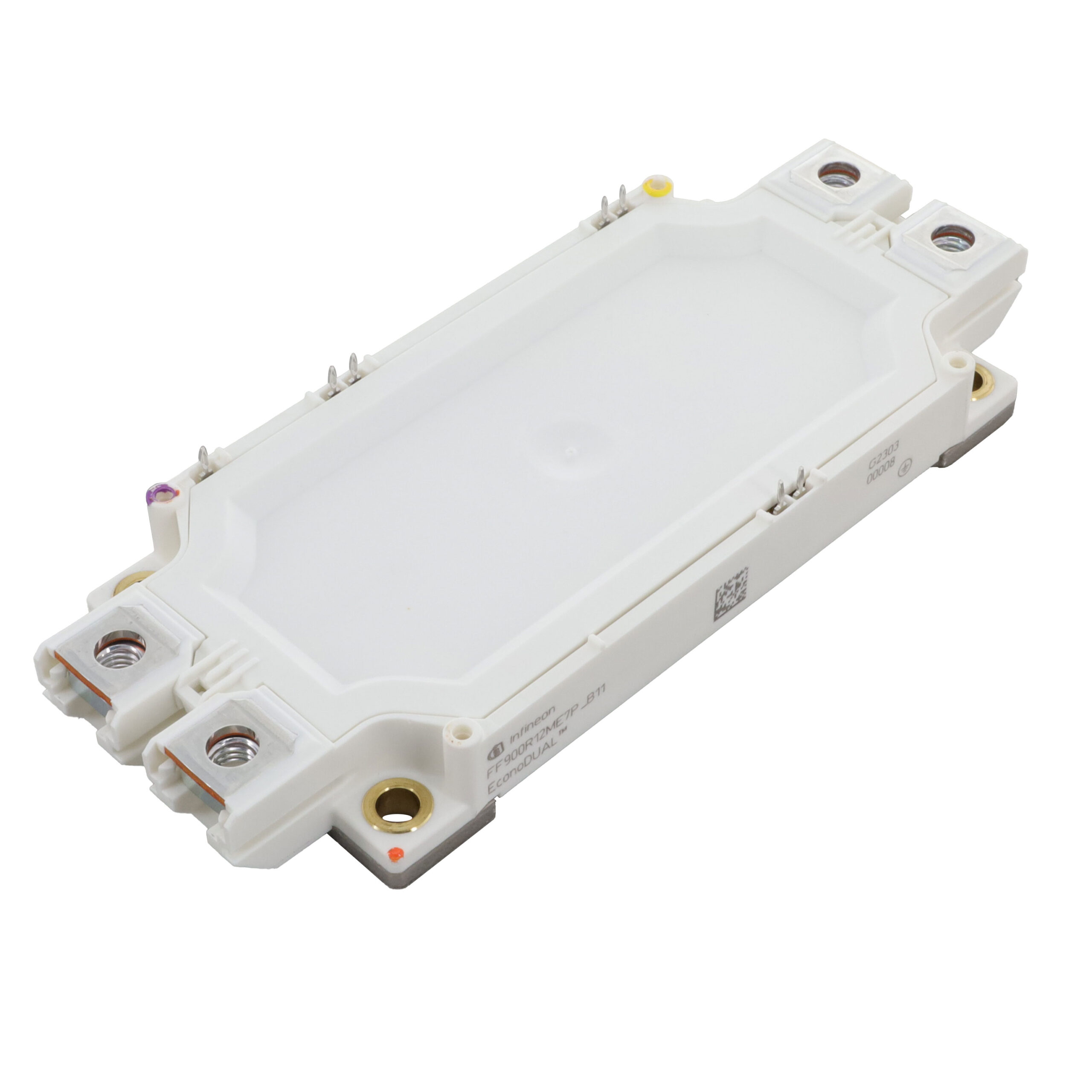

The FF900R12ME7PB11BPSA1 is a half-bridge IGBT module from Infineon's EconoDUAL™3 family, utilizing TRENCHSTOP™ IGBT7 technology. It features a 1200 V collector-emitter voltage (VCES) and a nominal continuous collector current (ICN) of 900 A, with a repetitive peak current (ICRM) of 1800 A. The module incorporates an integrated NTC thermistor for temperature monitoring and utilizes PressFIT contact technology. Key electrical parameters include a typical collector-emitter saturation voltage (VCE,sat) of 1.50 V at 25 °C and a forward voltage (VF) of 1.80 V for the anti-parallel diode. The device operates within a junction temperature range of -40 °C to 175 °C.

Feature Summary

• TRENCHSTOP™ IGBT7 technology providing positive temperature coefficient for safe parallel operation
• PressFIT contact technology enabling high mechanical robustness and simplified assembly
• Integrated NTC thermistor for precise internal temperature monitoring
• Pre-applied thermal interface material (TIM) to ensure consistent thermal performance

Applications

• Uninterruptible Power Supply (UPS) systems
• Servo drives and motor drives
• Commercial agriculture vehicles
• High-power converters

Procurement Notes

Verify component authenticity through official Infineon channels or authorized distributors. Confirm that the specific ordering suffix matches the required technical specifications, as variations may exist within the product line. Ensure storage conditions comply with datasheet guidelines regarding pre-applied thermal interface material to maintain performance integrity upon installation.

Selection Notes

Select this module for applications requiring high power density and robust mechanical connections via PressFIT technology. Consider the 1200 V rating and 900 A current capacity when designing inverter stages. Evaluate gate driver compatibility using the Infineon Gate Driver Finder tool to optimize switching performance and ensure proper thermal management within the specified operating temperature range.

Part Context

This component belongs to the EconoDUAL™3 series, designed for medium to high-power industrial applications. It represents the seventh generation of Infineon's trench field-stop IGBT technology, offering improved efficiency and reliability compared to previous generations. The standard housing facilitates integration into various power electronic systems requiring isolated base plates and high creepage distances.

Replacement Considerations

Direct replacements within the same package and electrical ratings should be sought from the EconoDUAL™3 family. Verify that any substitute maintains the PressFIT termination style and identical pinout configuration. Cross-referencing with other IGBT7 modules in the 1200 V / 900 A class is recommended if form-factor constraints allow.
