FGI3040G2-F085C

Overview

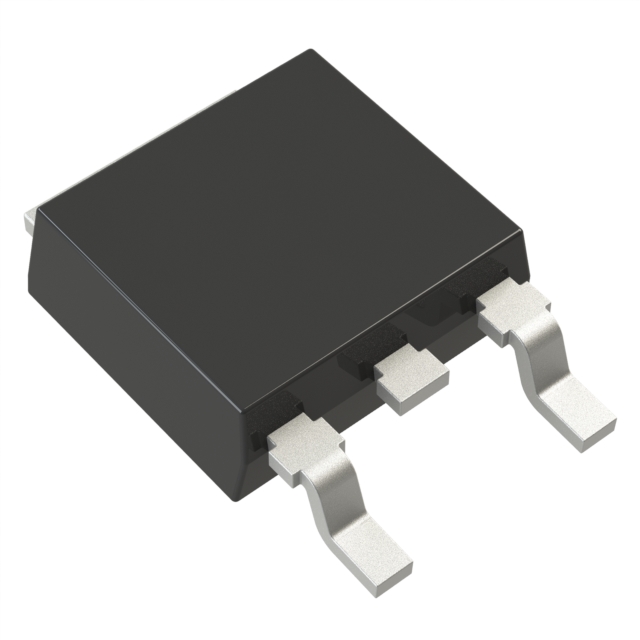

The onsemi FGI3040G2-F085 is an N-channel Ignition IGBT in the ECOSPARK family, housed in a TO-262 (I2PAK) package. It features a 400 V collector-emitter breakdown voltage and supports a continuous collector current of 41 A at 25 °C case temperature. The device incorporates self-clamping technology to handle inductive switching energy up to 300 mJ at 25 °C. It operates with logic-level gate drive voltages and maintains functionality across a junction temperature range of -55 °C to +175 °C.

Feature Summary

• Integrated self-clamping circuitry for robust inductive load handling
• Logic level gate drive capability for simplified control interface
• AEC-Q101 qualified for automotive reliability standards

Applications

• Automotive ignition coil driver circuits
• Coil On Plug (COP) applications

Procurement Notes

Verify component authenticity through authorized distribution channels or direct manufacturer verification. Confirm that the specific ordering suffix matches the required package type and shipping configuration. Ensure compliance with RoHS and Pb-Free material declarations as specified in the official datasheet documentation.

Selection Notes

Select this component when designing automotive ignition systems requiring high surge tolerance. Evaluate thermal management requirements based on the 150 W power dissipation rating at 25 °C case temperature. Consider the 400 V breakdown voltage margin relative to system operating conditions.

Part Context

This part belongs to the ECOSPARK 300 mJ, 400 V N-Channel Ignition IGBT series. It shares electrical characteristics with other variants in the family, distinguished primarily by their physical package configurations such as D2PAK, DPAK, and TO-220.

Replacement Considerations

Direct substitutes within the same family include FGB3040G2-F085, FGD3040G2-F085, and FGP3040G2-F085. Note that the datasheet indicates FGP3040G2-F085 and FGI3040G2-F085 are marked as discontinued.
