FL06500A

$1.63

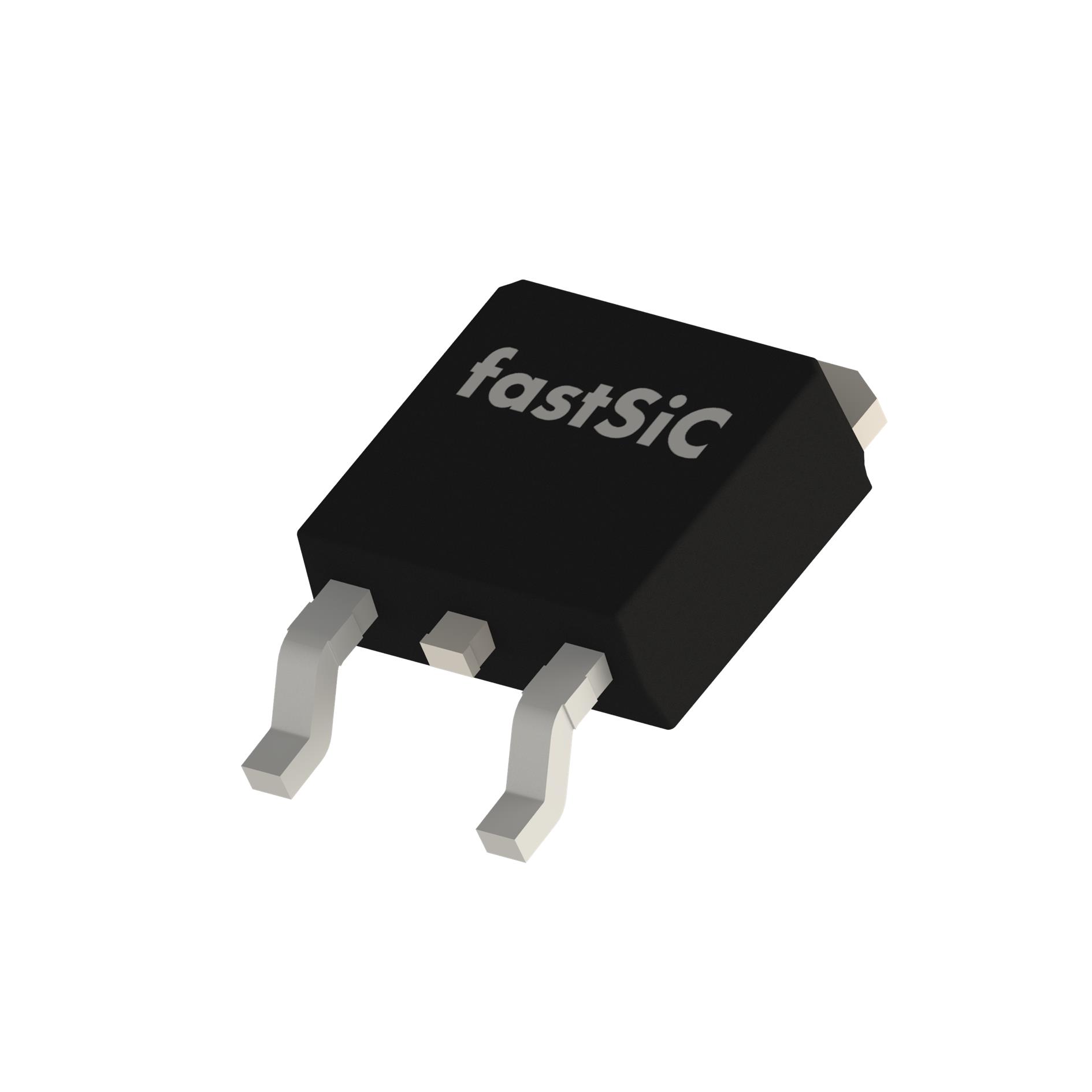

Description：SICFET N-CH 650V 6.1A TO-252
Series：Lightning
Mfr：fastSiC
Package：Tape & Reel (TR)

SKU:9634c56ffbca Category: Single FETs, MOSFETs Brand: fastSiC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FL06500A is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists fastSiC. Its product description is SICFET N-CH 650V 6.1A TO-252. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for FL06500A

Description：SICFET N-CH 650V 6.1A TO-252
Series：Lightning
Mfr：fastSiC
Package：Tape & Reel (TR)
FET Type：N-Channel
Technology：SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)：650 V
Current - Continuous Drain (Id) @ 25°C：6.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：15V
Rds On (Max) @ Id, Vgs：660mOhm @ 1A, 15V
Vgs(th) (Max) @ Id：2.2V @ 3mA
Gate Charge (Qg) (Max) @ Vgs：10.3 nC @ 12 V
Vgs (Max)：15V
Input Capacitance (Ciss) (Max) @ Vds：223 pF @ 400 V
FET Feature：-
Power Dissipation (Max)：29W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：TO-252
Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63

Single FETs, MOSFETs datasheet and documents for FL06500A

FL06500A

Single FETs, MOSFETs Overview

The FL06500A is a Silicon Carbide MOSFET from the Falcon Series by Fast SiC Semiconductor Inc., housed in a TO-252 (DPAK) package. It features a 650V drain-source voltage rating and a typical on-state resistance of 500mΩ at 25°C. The device supports a continuous drain current of 6.1A and a pulse current of 11A, with a maximum power dissipation of 29W. Operating junction and storage temperatures range from -55°C to 175°C. Recommended gate-source turn-on voltage is 12V to 15V.

Single FETs, MOSFETs Feature Summary

Optimized RDS(on) combined with rapid switching behavior for high efficiency
Low profile packaging with low parasitic inductance
High avalanche endurance capability
Compatible with standard 12V gate drivers

Single FETs, MOSFETs Applications

Switching mode power supplies
Power factor correction circuits
Portable adapters
Telecom power systems
Renewable energy applications
Class D amplifiers

Single FETs, MOSFETs Procurement Notes

Verify the specific part number against the manufacturer's official datasheet to confirm electrical parameters and package type. Ensure compatibility with standard 12V gate drivers and check thermal management requirements for the TO-252 package. Confirm RoHS compliance and halogen-free status as specified in the documentation before procurement.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring high-frequency operation and compact system design. Consider the 500mΩ on-resistance and 6.1A continuous current rating for load requirements. Evaluate thermal impedance characteristics for heat dissipation needs within the -55°C to 175°C operating temperature range.

Single FETs, MOSFETs Part Context

The FL06500A belongs to the Falcon Series of Silicon Carbide MOSFETs manufactured by Fast SiC Semiconductor Inc. This series is designed to enable high-temperature applications and allow for high-frequency operation. The component aims to realize compact and lightweight systems while maintaining high reliability through optimized performance characteristics.

Single FETs, MOSFETs Replacement Considerations

For comparable products, contact Fast SiC Semiconductor Inc. directly via their official website (www.fastsic.com). No specific substitute part numbers are listed in the provided datasheet.
