FM-104-PIN

Overview

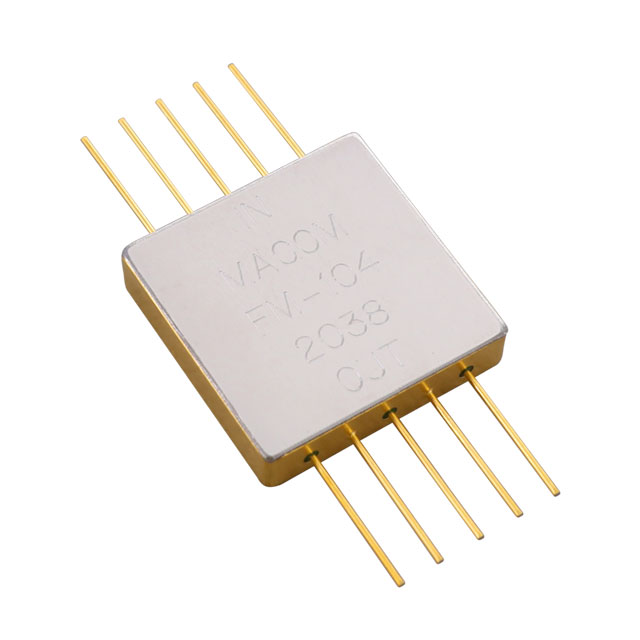

The FM-104-PIN is a general-purpose RF IC frequency doubler manufactured by MACOM Technology Solutions. It operates within a frequency range of 150MHz to 3GHz and utilizes an FP-3 package. The device employs a balanced diode activation design to achieve excellent conversion loss and odd-order term suppression.

Feature Summary

• Balanced diode activation design for improved performance
• Excellent conversion loss characteristics
• Effective odd-order harmonic suppression

Applications

• General purpose RF frequency doubling applications
• Broadband RF signal processing systems

Procurement Notes

Verify the specific suffix (PIN) against official MACOM documentation to confirm pinout and packaging details. Ensure the operating frequency range aligns with system requirements. Cross-reference datasheets from authorized distributors to confirm current availability and technical specifications before procurement.

Selection Notes

Select this component when a general-purpose frequency doubler is required for frequencies between 150MHz and 3GHz. Consider the FP-3 package constraints and the need for balanced diode activation benefits. Evaluate conversion loss and harmonic suppression needs against alternative broadband doublers.

Part Context

This part belongs to the RF Misc ICs and Modules category under MACOM's portfolio. It is designed as a broadband frequency multiplier, distinct from single-frequency or narrow-band variants. The PIN suffix typically indicates a specific tape-and-reel or tray packaging configuration for surface-mount assembly.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult MACOM official documentation for direct replacements or functional equivalents within the same product family.
