FM82P2003

Overview

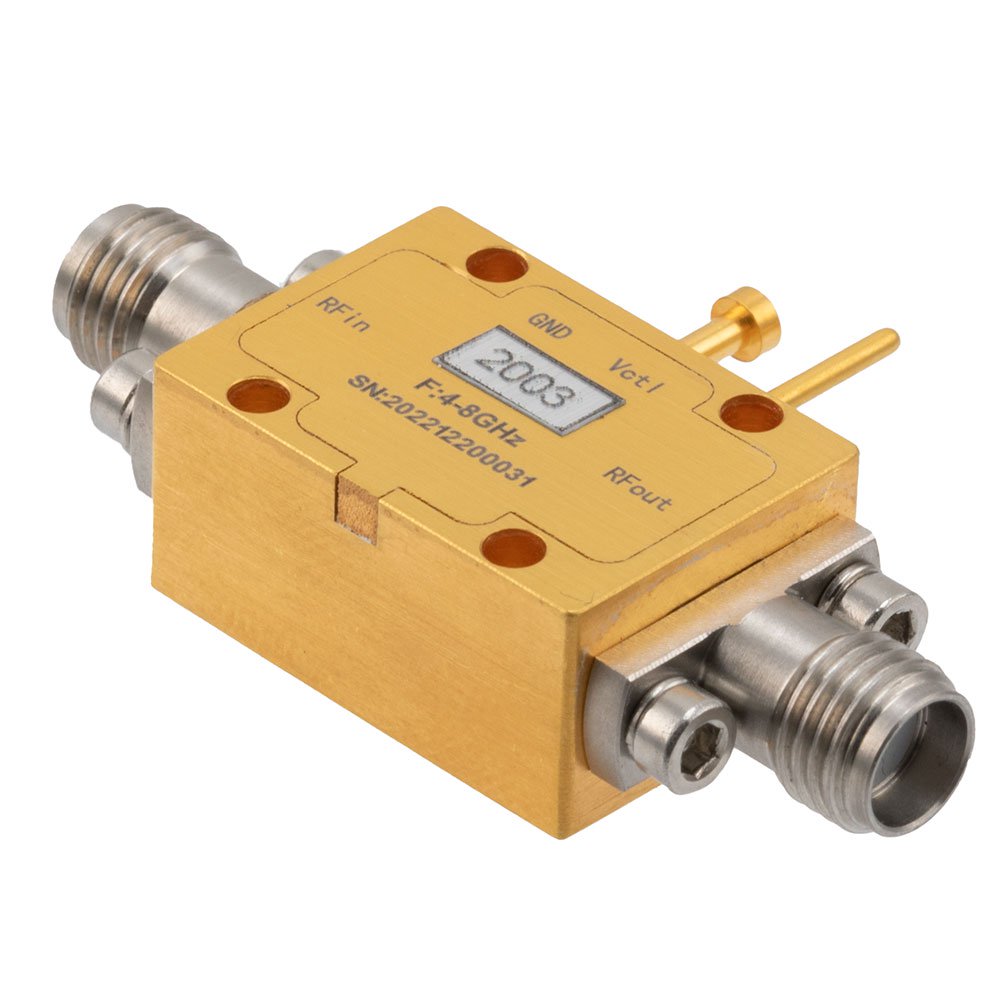

The FM82P2003 is a general-purpose RF IC phase shifter manufactured by Fairview Microwave. It operates within a frequency range of 4 GHz to 8 GHz and utilizes SMA connectors for signal interfacing. This component is designed for applications requiring precise phase adjustment in radio frequency circuits. The module integrates phase shifting capabilities into a compact form factor suitable for various RF system configurations.

Feature Summary

• Provides adjustable phase shifting functionality across the specified frequency band
• Utilizes standard SMA connector interfaces for easy integration
• Designed as a general-purpose solution for RF signal conditioning

Applications

• RF test and measurement equipment
• Wireless communication systems
• Phased array antenna systems

Procurement Notes

Verify the specific SMA connector gender and pin configuration required for your application before ordering. Confirm that the operating frequency range of 4 GHz to 8 GHz aligns with your system requirements. Ensure compatibility with existing RF infrastructure regarding impedance and power handling capabilities.

Selection Notes

Select this component when a dedicated phase shifting module is needed between 4 GHz and 8 GHz. Consider the SMA interface for standard connectivity needs. Evaluate the general-purpose nature against specific phase resolution requirements of your design.

Part Context

This phase shifter belongs to Fairview Microwave's portfolio of RF integrated circuits and modules. It complements their range of signal conditioning components, offering specialized functionality for frequency-specific phase control tasks in modern electronic systems.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. Users should consult Fairview Microwave technical support for potential alternatives or cross-reference options based on electrical specifications.
