FM82P2009

Overview

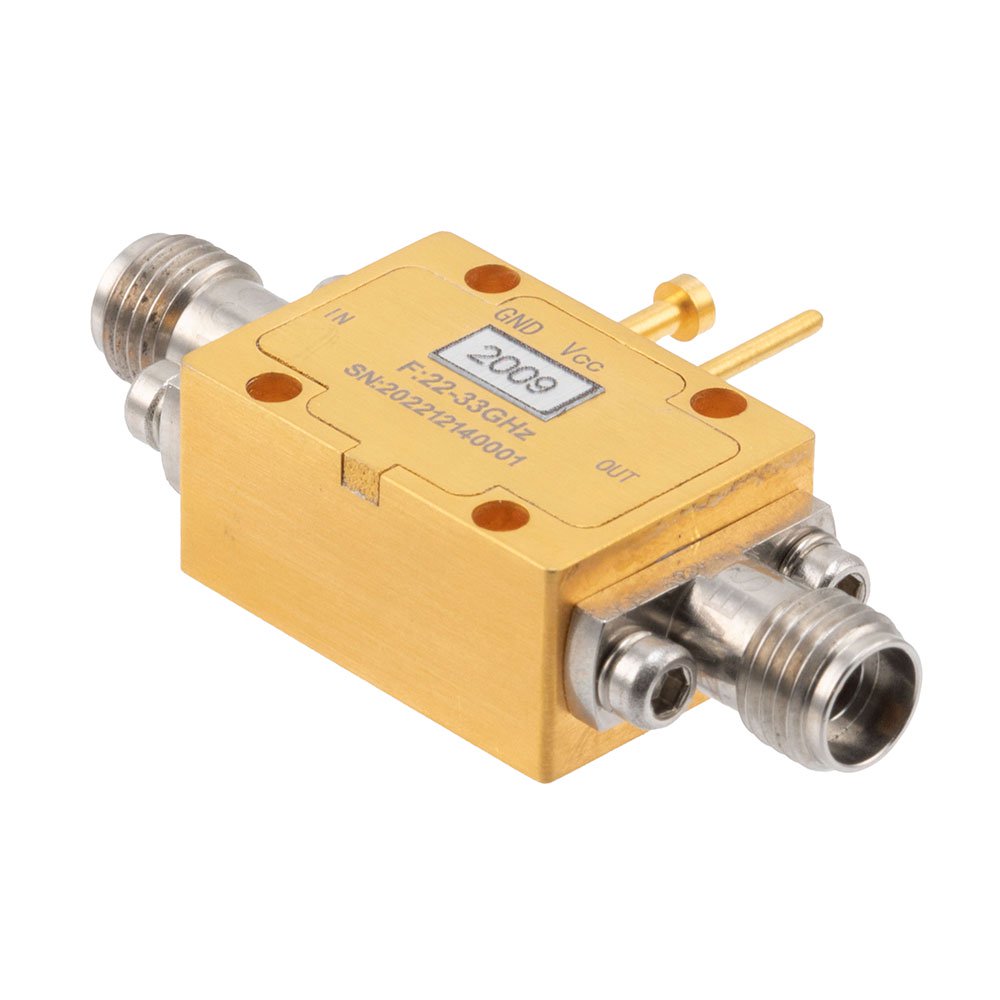

The FM82P2009 is an analog phase shifter manufactured by Fairview Microwave, designed for operation within the 22 GHz to 33 GHz frequency range. It provides a continuous 360-degree phase adjustment capability controlled by an analog voltage input ranging from 0V to +14V. The device features 2.92mm connectors and supports a maximum input power of +15 dBm at the control pin. This component serves as a signal conditioning element for high-frequency RF applications requiring precise phase manipulation.

Feature Summary

• Provides continuous 360-degree phase shift coverage across the specified microwave frequency band
• Utilizes analog voltage control for precise phase adjustment with defined input ranges
• Engineered with 2.92mm interface connectors to ensure reliable high-frequency signal integrity

Applications

• Phased array antenna systems requiring beam steering
• Microwave communication links needing phase alignment
• Test and measurement instrumentation for signal characterization

Procurement Notes

Verify the specific datasheet version for the FM82P2009 to confirm exact electrical tolerances and mechanical dimensions before integration. Ensure that the control voltage supply matches the 0V to +14V requirement and that the system can handle the +15 dBm maximum pin power rating. Confirm connector compatibility with existing 2.92mm infrastructure to prevent impedance mismatches during installation.

Selection Notes

Select this component when a wideband analog phase shift is required between 22 GHz and 33 GHz. The 360-degree range allows for full cycle modulation, making it suitable for complex modulation schemes. Consider the 2.92mm connector type for compatibility with standard high-frequency test equipment and interconnects in laboratory or production environments.

Part Context

Fairview Microwave produces specialized RF components for demanding wireless applications. The FM82P2009 belongs to their signal conditioning portfolio, specifically addressing phase control needs in millimeter-wave bands. These products are typically used in advanced radar, satellite communications, and high-speed data transmission systems where signal phase accuracy is critical for performance.

Replacement Considerations

No public substitute part numbers are confirmed for the FM82P2009. Verify if other models from the same manufacturer offer similar 2.92mm interfaces and frequency ranges if direct replacement is necessary.
