Product Detailed Parameters
- Description：PHASE SHIFTER SMA 2 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Phase Shifter
- Frequency：0Hz ~ 2GHz
- RF Type：Radar
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

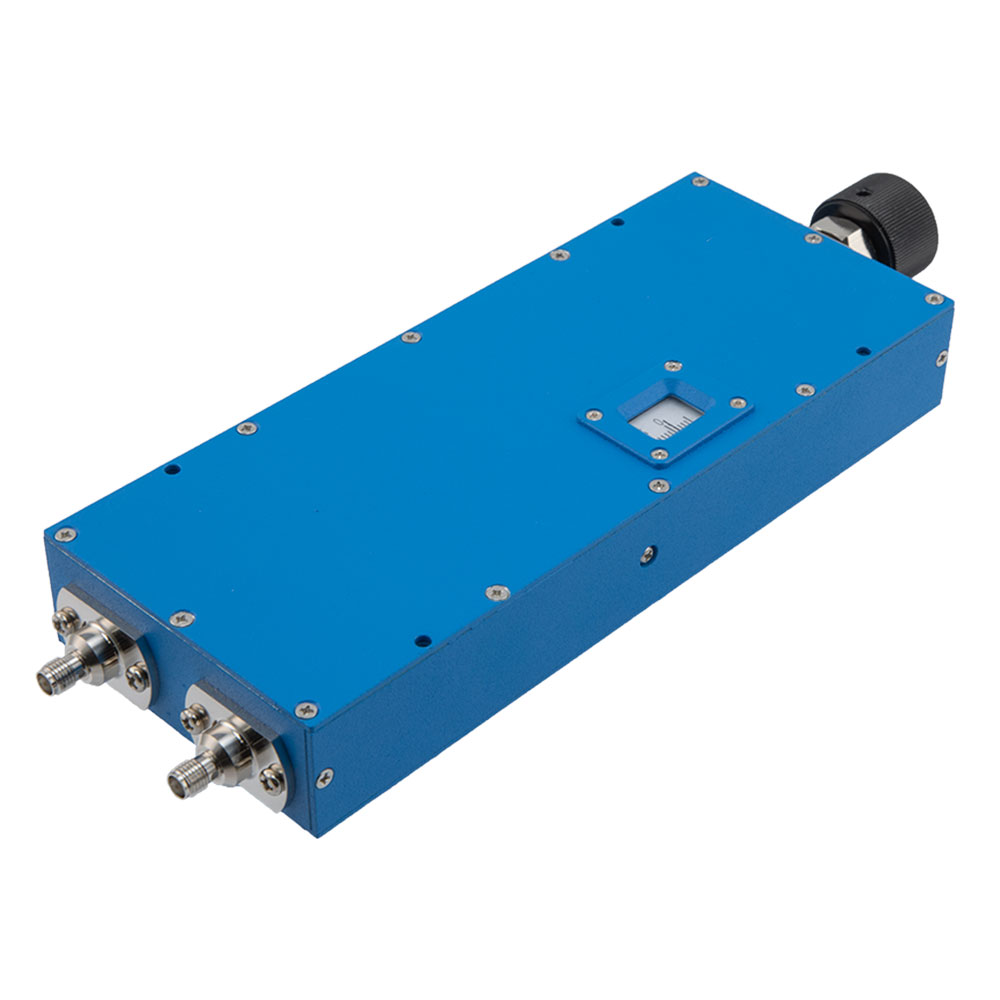

The FM82P5007 is an adjustable phase shifter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates across a frequency range from DC to 2 GHz. The device features a rotary dial mechanism that allows for continuous phase adjustment within a tuning range of 0 to 180 degrees. Phase variation is specified at 90 degrees per GHz. The component utilizes SMA female connectors for interfacing and is packaged individually in a bag.
Feature Summary
- Continuous phase adjustment via rotary dial design
- Operates from DC to 2 GHz frequency range
- SMA female connectorized interface
Applications
- Radar systems requiring phase control
- RF signal conditioning circuits
- Test and measurement equipment
Procurement Notes
Verify the specific datasheet version before procurement, as manufacturer specifications may be updated. Confirm that the SMA female connector type aligns with your system requirements. Check regional availability restrictions, as distribution channels may limit sales in certain areas. Ensure handling procedures account for the mechanical nature of the rotary adjustment feature during installation.
Selection Notes
Select this component when variable phase shifting is required within the 2 GHz bandwidth. The rotary dial design offers manual adjustment capabilities suitable for benchtop or fixed-installation scenarios. Consider the physical size and weight constraints, as the unit includes mechanical adjustment components. Verify compatibility with existing SMA infrastructure in the RF chain.
Part Context
This part belongs to the Fairview Microwave signal conditioning category, specifically within the phase shifter sub-class. It is distinct from fixed phase shifters due to its adjustable nature. The product line focuses on microwave and RF interconnect solutions, providing hardware for precise signal manipulation in high-frequency environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users must evaluate alternative adjustable phase shifters based on matching frequency ranges, connector types, and phase tuning specifications if this specific model is unavailable.
