FM82P5008

Overview

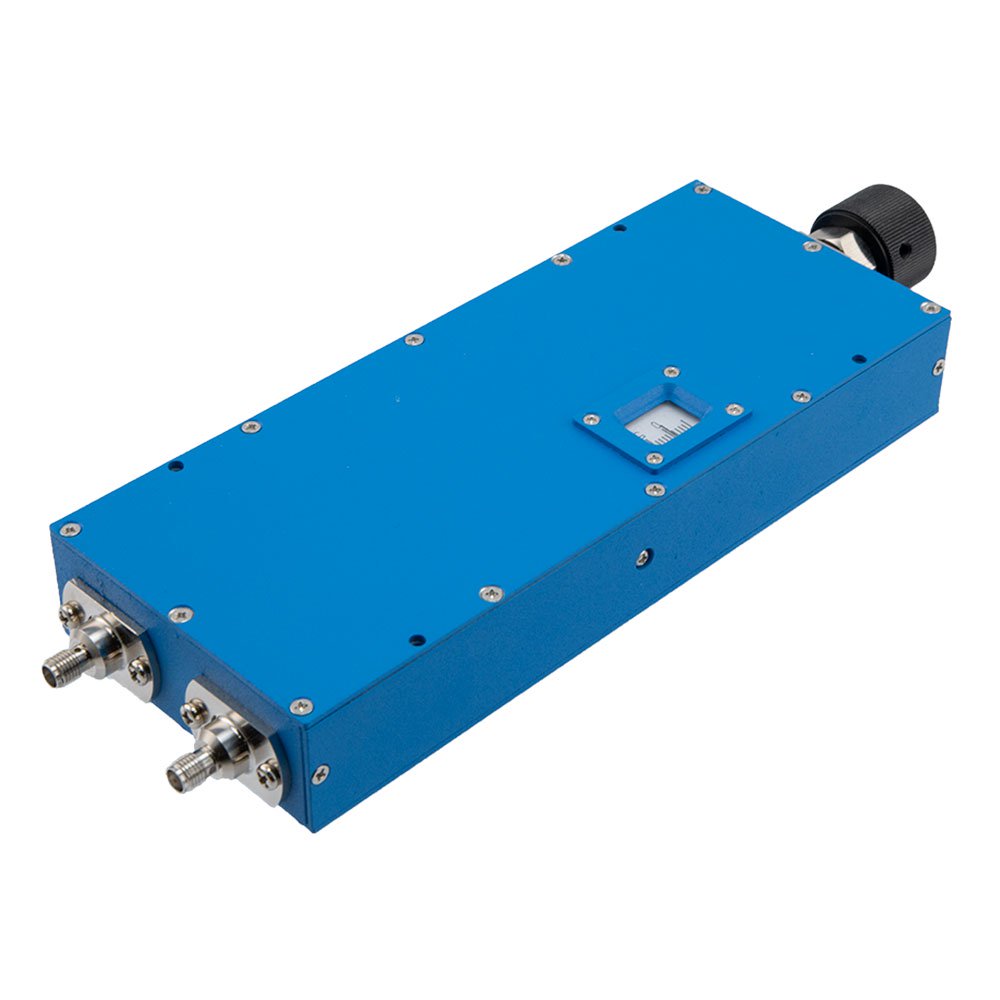

The FM82P5008 is an adjustable phase shifter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates across a frequency range from DC to 4 GHz. The device provides an adjustable phase shift capability of 90 degrees per GHz, allowing for precise control over signal phase within the specified bandwidth. It features SMA female connectors for interfacing and utilizes a rotary dial design for continuous adjustment. This component is categorized under signal conditioning products and falls within the filters sub-category.

Feature Summary

• Adjustable phase shifting with a rate of 90 degrees per GHz
• Continuous phase adjustment via precision rotary dial design
• Operates from DC up to 4 GHz frequency range
• Equipped with SMA female connectors for connection

Applications

• RF signal conditioning systems
• Radar system phase alignment
• Test and measurement equipment requiring variable phase control
• Communication systems needing precise phase tuning

Procurement Notes

Verify availability through authorized distributors as supply status may be restricted or limited. Confirm connector type and frequency specifications match system requirements before ordering. Check for updated datasheets to ensure compliance with current technical standards. Ensure proper handling due to sensitive RF components. Review shipping restrictions if applicable to your region.

Selection Notes

Select this model when continuous phase adjustment is required between DC and 4 GHz. The 90 degrees per GHz adjustment rate suits applications needing fine-tuned phase control. SMA connectors are standard for many RF setups. Consider physical size and weight constraints if integrating into compact systems. Verify interface compatibility with existing test fixtures or circuit boards.

Part Context

This component belongs to Fairview Microwave's line of signal conditioning devices, specifically phase shifters. It is part of a series that includes models like FM82P5007 and FM82P5018, which offer different frequency ranges and adjustment capabilities. These products are generally used in high-frequency electronic applications where phase manipulation is critical for system performance.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Fairview Microwave directly for potential alternatives or cross-reference options based on specific electrical and mechanical requirements.
