Product Detailed Parameters
- Description：PHASE SHIFTER SMA 4 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Phase Shifter
- Frequency：0Hz ~ 4GHz
- RF Type：Radar
- Secondary Attributes：720° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

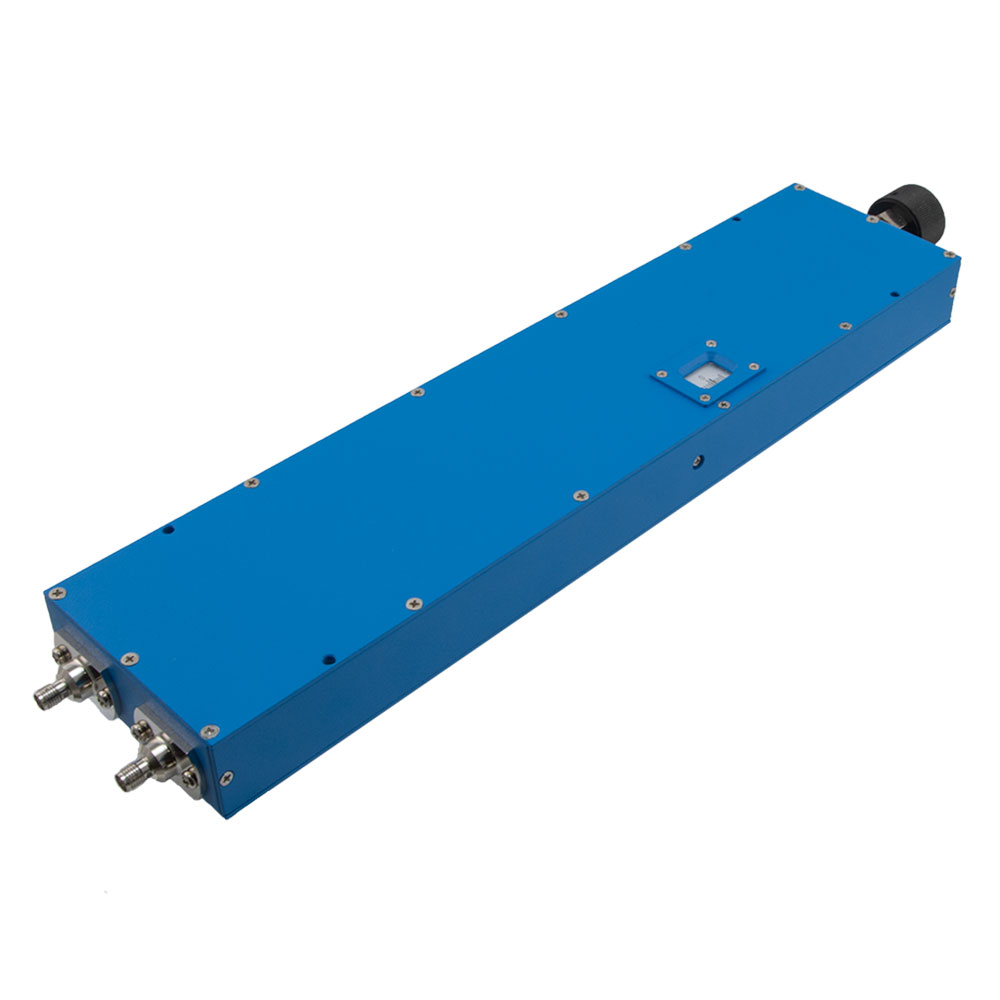

The FM82P5010 is an adjustable phase shifter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates across a frequency range from DC to 4 GHz. The device provides a phase tuning range of 0 to 720 degrees, achieving an adjustment rate of 180 degrees per GHz. It features SMA female connectors and utilizes a precision rotary dial design for continuous phase control.
Feature Summary
- Precision rotary dial mechanism enables continuous and controllable phase adjustment
- Operates from DC up to 4 GHz with a total tuning range of 0 to 720 degrees
- Equipped with SMA female connectors for interconnection
Applications
- Signal conditioning systems requiring precise phase alignment
- RF test and measurement equipment setups
- Phased array antenna calibration and beam steering
Procurement Notes
Verify the specific connector type and mechanical dimensions against your system requirements before ordering. Confirm that the 0 to 720-degree tuning range meets your application's phase shift needs. Ensure compatibility with SMA female interfaces. Check current availability status as distribution may vary by region.
Selection Notes
Select this component when a wide continuous phase adjustment range is required within the 4 GHz bandwidth. The rotary dial design offers manual control precision suitable for laboratory or fixed installation environments. Consider the physical size and weight if space constraints are critical in your assembly.
Part Context
This model belongs to Fairview Microwave's line of signal conditioning components, specifically categorized under phase shifters. It serves as a passive RF component used to modify the phase of a signal without altering its amplitude significantly. The product is distinct from variable attenuators or amplifiers within the same manufacturer portfolio.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should verify mechanical fit and electrical specifications carefully when considering alternative phase shifters from other manufacturers.
