FM82P5015

$1,209.39

Description：PHASE SHIFTER TYPE N 4 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:f50f39d4e029 Category: RF Misc ICs and Modules Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PHASE SHIFTER TYPE N 4 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Function：Phase Shifter
Frequency：0Hz ~ 4GHz
RF Type：Radar
Secondary Attributes：360° Phase Shift
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FM82P5015

Overview

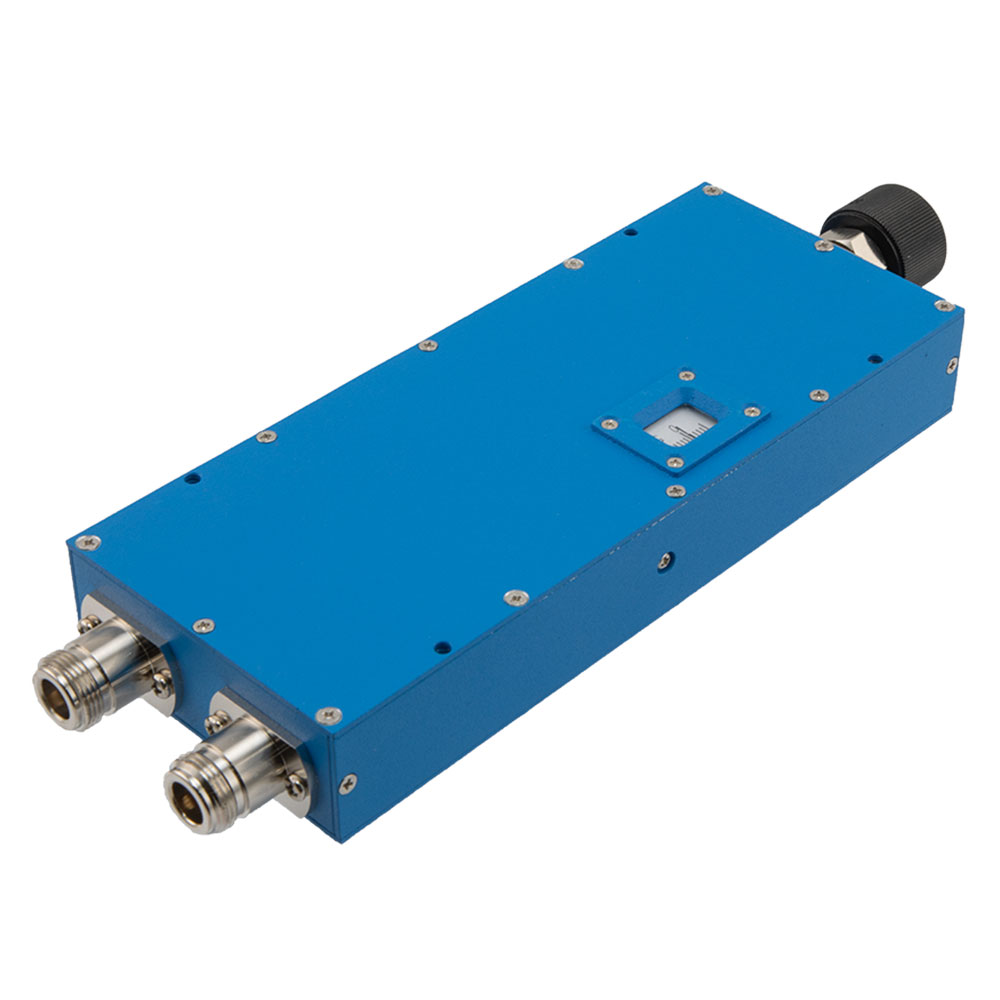

The FM82P5015 is an adjustable phase shifter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates across a frequency range from DC to 4 GHz. The device provides an adjustable phase shift of 90 degrees per GHz, allowing for precise control over signal timing. It features N-type connectors for interfacing and utilizes a precision rotary dial design to facilitate manual adjustment. This component is packaged individually in a bag and weighs approximately 1.179 kg.

Feature Summary

Adjustable phase shift capability with a rate of 90 degrees per GHz
Precision rotary dial design for controllable phase adjustment
Operates from DC up to 4 GHz frequency range
Equipped with N-type connectors for signal connection

Applications

RF signal conditioning systems
Phase alignment in microwave circuits
Test and measurement equipment requiring variable phase control

Procurement Notes

Verify the specific connector type and frequency range requirements against the official datasheet before ordering. Confirm that the N-type interface matches your system infrastructure. Ensure the 4 GHz maximum frequency meets your application needs. Check for any regional sales restrictions or availability updates from authorized distributors prior to finalizing procurement decisions.

Selection Notes

Select this component when variable phase control within the DC to 4 GHz band is required. The 90 degrees per GHz adjustment rate offers fine-tuning capabilities. Consider the physical size and weight if space constraints exist. Ensure compatibility with N-type mating connectors in the existing setup.

Part Context

The FM82P5015 belongs to the signal conditioning category, specifically within phase shifters. It is part of Fairview Microwave's portfolio of RF components designed for high-precision applications. This model serves as a specialized tool for adjusting signal phase in microwave frequencies.
