FM82P5023

Overview

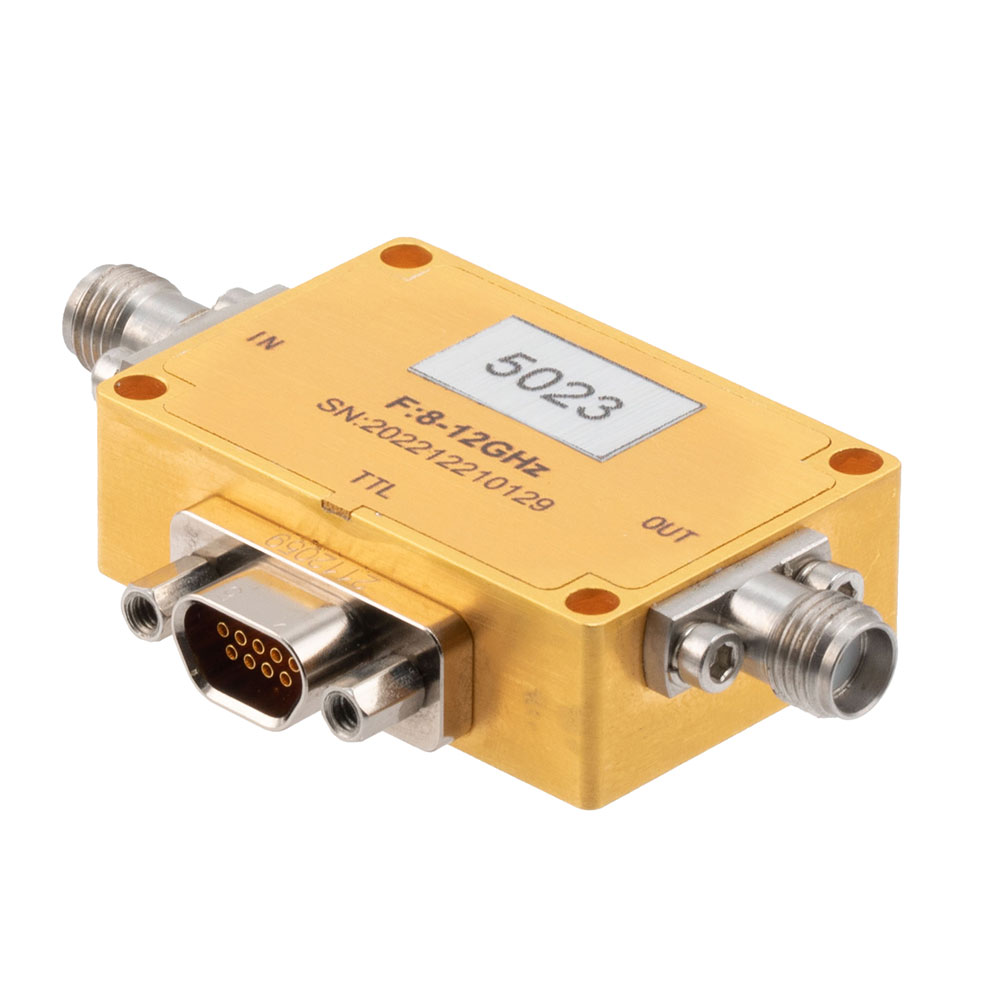

The FM82P5023 is a 6-bit TTL programmable phase shifter manufactured by Fairview Microwave. It operates within a frequency range of 8 GHz to 12 GHz and features SMA connectors. The device provides a typical phase shift from 0° to 360° with a step size of 5.625°. It utilizes TTL digital control for precise adjustment. The typical insertion loss is 9.3 dB, and the unit is packaged in a bag.

Feature Summary

• Digitally controlled via six TTL bits for programmable phase adjustment
• Operates across the 8 GHz to 12 GHz frequency band
• Provides continuous phase shift capability from 0° to 360°

Applications

• Phased array antenna systems
• Microwave test and measurement equipment
• RF signal processing circuits

Procurement Notes

Verify the specific datasheet version for the FM82P5023 to confirm electrical tolerances and mechanical dimensions. Ensure that the system interface supports the required TTL logic levels for digital control. Confirm connector type compatibility before integration into the RF chain.

Selection Notes

Select this component when a wideband phase shift solution is required between 8 GHz and 12 GHz. The 6-bit resolution offers a balance between control complexity and phase accuracy. Consider the typical insertion loss of 9.3 dB when designing gain stages or link budgets for high-frequency applications.

Part Context

This part belongs to Fairview Microwave's line of signal conditioning components, specifically focusing on programmable phase shifters. It complements other adjustable phase devices like the FM82P5015 and FM82P5017, which operate at lower frequencies up to 4 GHz. The FM82P5023 extends these capabilities into the higher microwave spectrum.

Replacement Considerations

No public confirmed substitute part numbers are available for the FM82P5023.
