Product Detailed Parameters
- Description：PHASE SHIFTER 2.92MM 37 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Phase Shifter
- Frequency：32GHz ~ 37GHz
- RF Type：General Purpose
- Secondary Attributes：360° Phase Shift
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

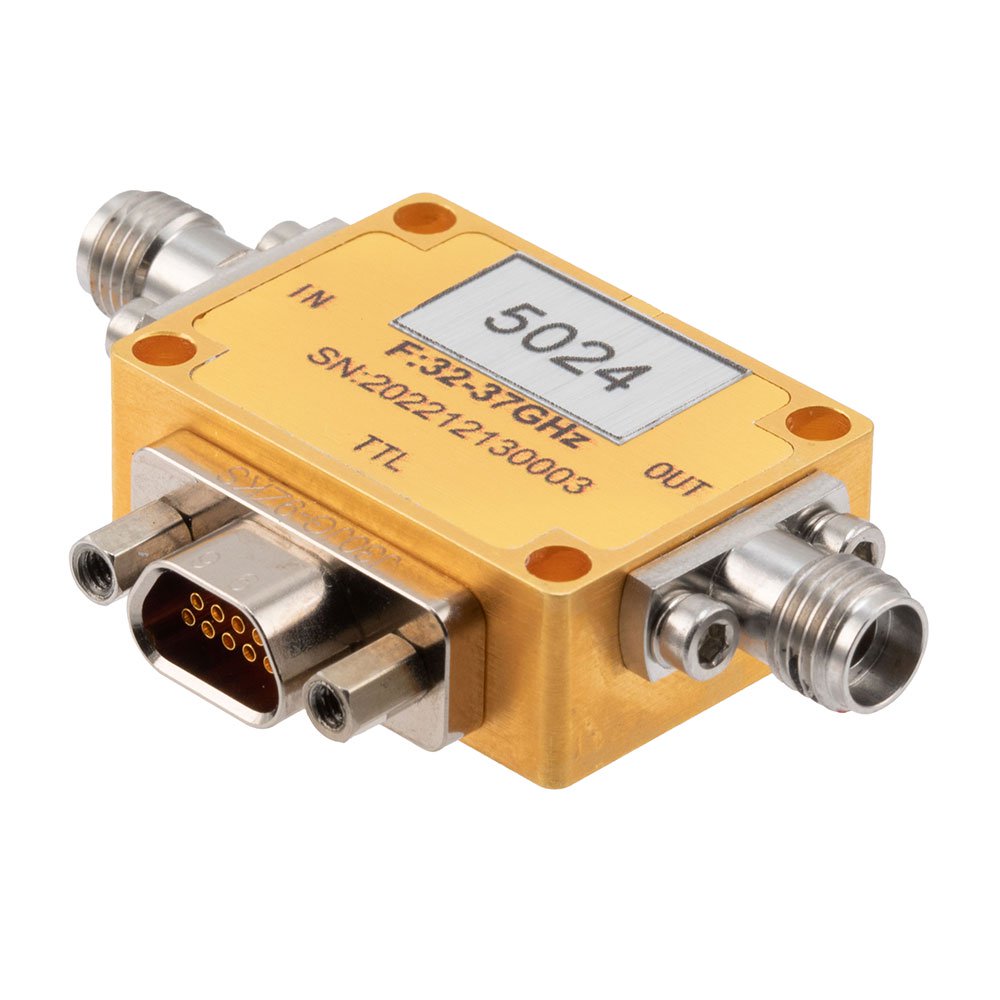

The FM82P5024 is a programmable phase shifter manufactured by Fairview Microwave, designed for high-frequency applications. It operates within a frequency range of 32 GHz to 37 GHz and provides a typical phase shift from 0° to 360°. The device utilizes TTL digital control with five control bits, resulting in a typical step size of 11.25°. It features a 2.92mm connector interface and is characterized by its insertion loss specifications suitable for precision signal processing tasks.
Feature Summary
- Utilizes TTL digital control logic for precise phase adjustment
- Operates at millimeter-wave frequencies up to 37 GHz
- Provides full 360-degree phase shift capability
Applications
- Phased array antenna systems
- Millimeter-wave test and measurement equipment
- High-speed communication links requiring phase modulation
Procurement Notes
Verify the specific datasheet version for exact insertion loss and return loss values before integration. Confirm that the 2.92mm connector compatibility matches your system interconnects. Ensure the TTL voltage levels align with your control circuitry. Check current availability as lead times may vary for specialized RF components.
Selection Notes
Select this component when operating within the 32-37 GHz band requires digital phase control. The 5-bit resolution offers a balance between control granularity and complexity. Consider the physical size and thermal requirements associated with the specified connector type during board layout.
Part Context
This part belongs to Fairview Microwave's programmable phase shifter series, targeting advanced RF and microwave engineering needs. It serves as a critical component for beamforming and signal steering in modern wireless infrastructure and radar systems where precise phase alignment is mandatory.
Replacement Considerations
Direct substitutes are not explicitly listed in public documentation. Evaluate other 5-bit TTL programmable phase shifters in the 32-37 GHz range with 2.92mm connectors, ensuring matching electrical performance metrics.
