Product Detailed Parameters
- Description：BIPHASE MODULATOR SMA 8GHZ-18GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Modulator
- Frequency：8GHz ~ 18GHz
- RF Type：Radar
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

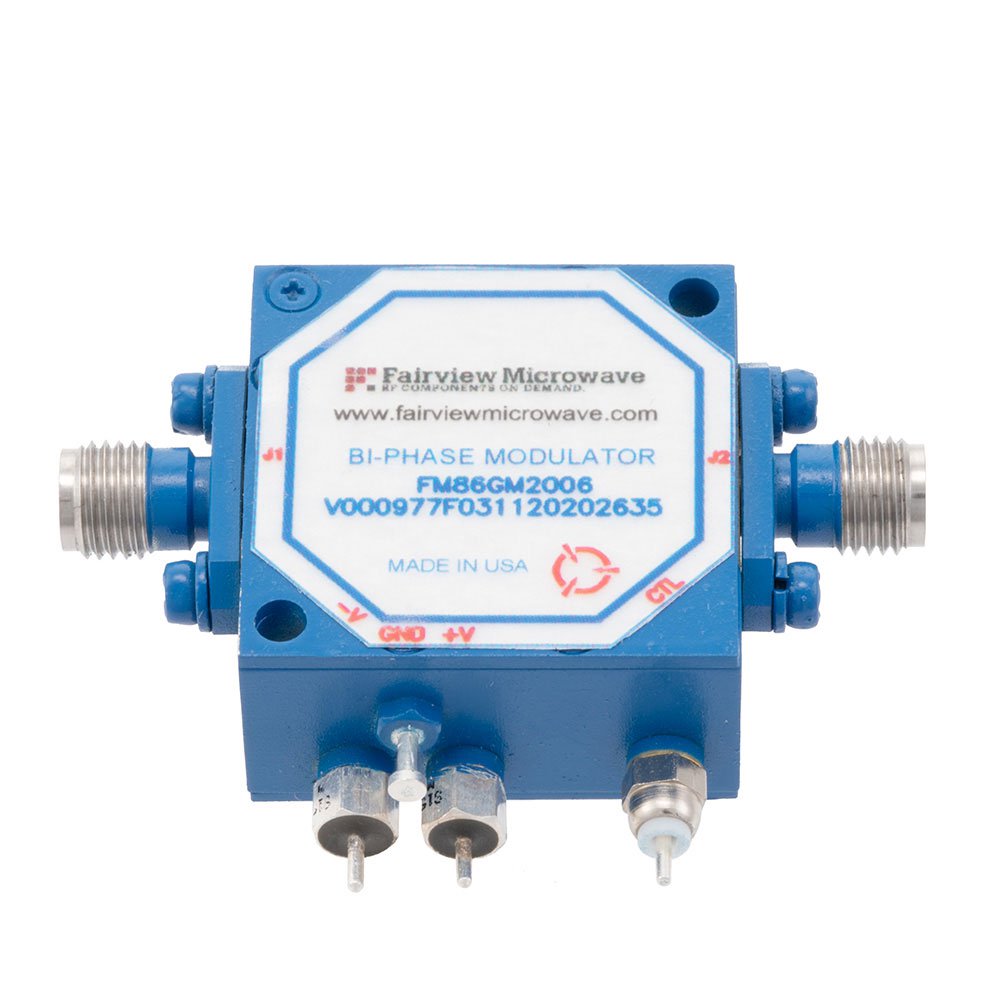

The FM86GM2006 is a bi-phase modulator manufactured by Fairview Microwave, designed for operation within the 8 GHz to 18 GHz frequency range. It utilizes SMA connectors for signal interfacing and accepts TTL control signals to switch between 0 and 180-degree phase states. The component features a switching speed of 75 nanoseconds, enabling rapid phase modulation for radar and communication systems.
Feature Summary
- Bi-phase modulation capability with 0 and 180-degree phase states
- Operates across an 8 GHz to 18 GHz frequency spectrum
- Utilizes TTL logic levels for control input
- Equipped with SMA connectors for RF interface
Applications
- Radar system phase modulation
- Communication system signal processing
- RF test and measurement equipment
Procurement Notes
Verify the specific datasheet version and connector pinout configuration prior to integration. Ensure that the TTL control voltage levels match the system logic requirements. Confirm mechanical dimensions and mounting constraints against the design specifications to ensure proper fit within the assembly.
Selection Notes
Select this component when high-speed phase switching is required in the microwave frequency band. The 75 ns switching speed supports applications demanding rapid state transitions. Verify compatibility with existing SMA infrastructure and ensure the operating temperature range meets environmental conditions.
Part Context
This part belongs to Fairview Microwave's RF integrated circuits and modules category. It serves as a specialized active component for phase manipulation in high-frequency circuits, distinct from passive cables or general-purpose amplifiers found in the same product line.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer engineering support for direct replacements or functional equivalents.
