FMAM1074

Overview

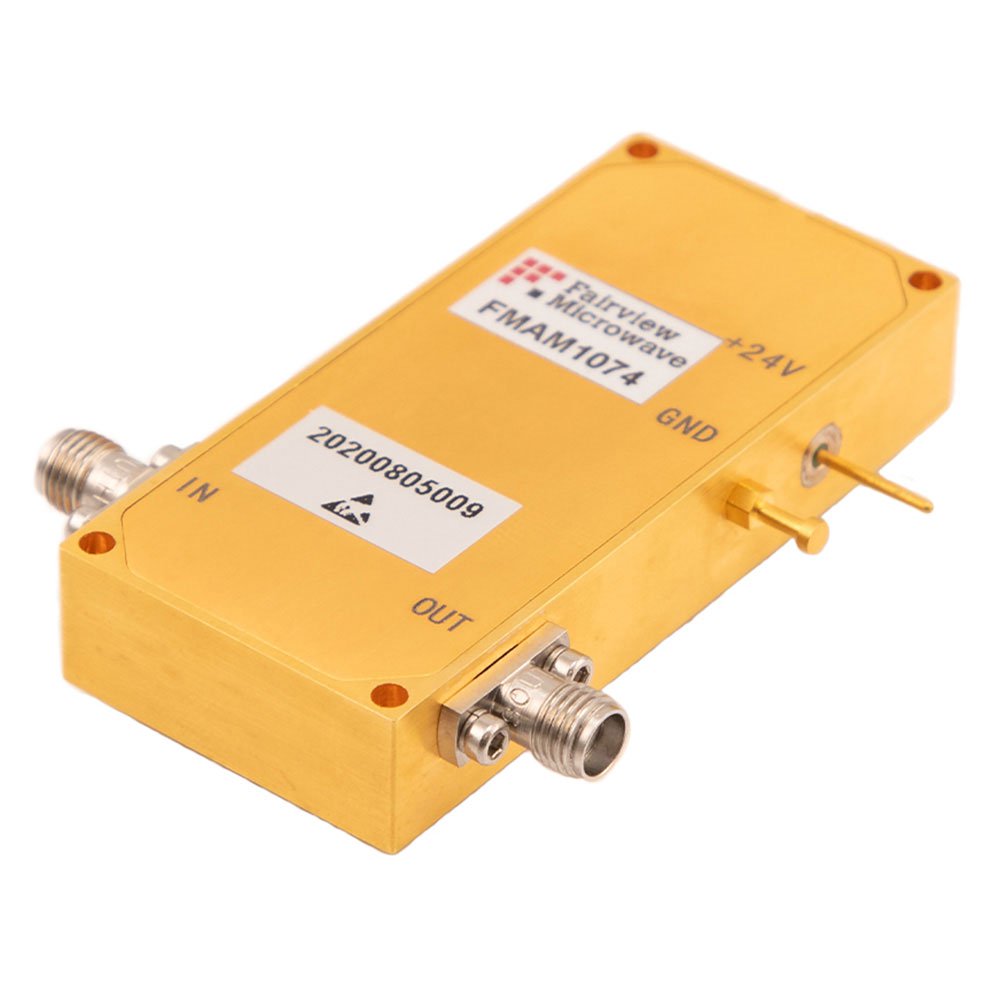

The FMAM1074 is a low noise amplifier module manufactured by Fairview Microwave. It utilizes Gallium Nitride (GaN) technology to deliver a gain of 29 dB across an operating frequency range of 1 GHz to 23 GHz. The device features input protection and achieves a noise figure of 3.5 dB with a saturated power output (Psat) of 23 dBm. It employs SMA connectors for interface connections.

Feature Summary

• Utilizes GaN technology for high-performance amplification
• Includes built-in input protection mechanisms
• Provides wideband operation from 1 GHz to 23 GHz

Applications

• Wideband communication systems
• Test and measurement instrumentation
• Electronic warfare applications

Procurement Notes

Verify component authenticity through authorized channels due to discontinued status. Confirm SMA connector compatibility and GaN module specifications against original datasheets. Ensure supply chain integrity to avoid counterfeit replacements in critical RF infrastructure deployments.

Selection Notes

Select this model for applications requiring broad bandwidth coverage up to 23 GHz. Evaluate the 29 dB gain and 3.5 dB noise figure against system link budget requirements. Consider the 23 dBm Psat capability for signal strength needs within the specified frequency range.

Part Context

This component belongs to the Fairview Microwave RF amplifier portfolio, specifically designed as a low noise amplifier module. It represents a specialized solution for high-frequency signal processing using advanced semiconductor materials.

Replacement Considerations

The product status is listed as discontinued. No public confirmed substitute part numbers are available in the provided documentation.
