FMAM1077

Overview

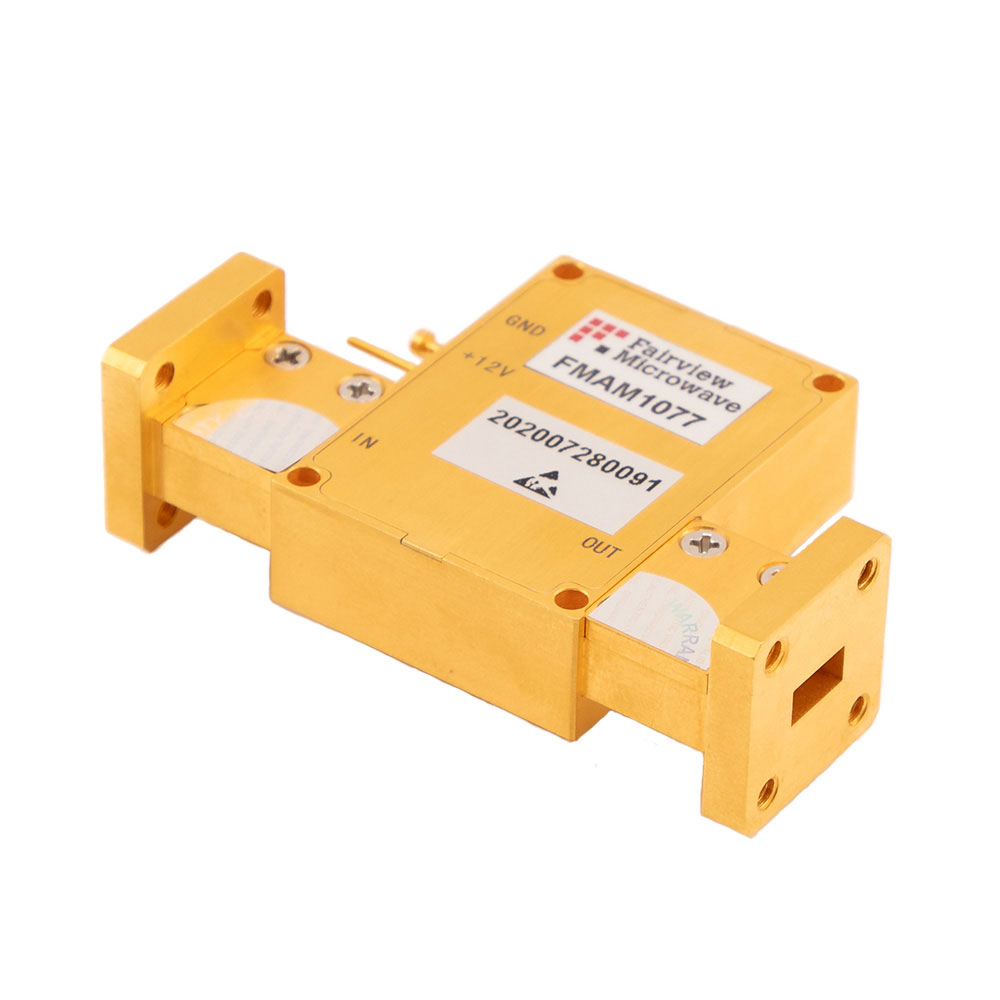

The FMAM1077 is a waveguide low noise amplifier manufactured by Fairview Microwave, designed for operation within the 27 GHz to 40 GHz frequency range. It provides a nominal gain of 35 dB with a typical noise figure of 3 dB. The device features a saturation power output (Psat) of 12 dBm and a 1 dB compression point (P1dB) of 10 dBm. It utilizes a WR28 waveguide interface and operates on a 15 V supply current of 110 mA. Key linearity metrics include an output third-order intercept point (OIP3) of 20 dBm.

Feature Summary

• Waveguide-integrated low noise amplification architecture
• High gain performance in millimeter-wave spectrum
• Optimized noise figure for signal integrity

Applications

• Millimeter-wave communication systems
• Satellite ground station receivers
• Electronic warfare signal processing
• Radar front-end modules

Procurement Notes

Verify the specific datasheet revision and technical specifications directly from Fairview Microwave before procurement. Confirm that the WR28 waveguide interface matches your system requirements. Ensure proper handling procedures are followed due to the sensitive nature of waveguide components. Cross-reference the electrical parameters against your design constraints to ensure compatibility.

Selection Notes

Select this component when high-gain amplification is required in the 27-40 GHz band with strict noise figure limitations. The waveguide interface necessitates compatible flange connections in the RF chain. Consider the 15 V DC supply requirement and thermal management needs associated with the specified power consumption and output power levels during system integration.

Part Context

This part belongs to the Fairview Microwave RF Amplifier category, specifically within the Low Noise Amplifier subcategory. It is categorized under Wireless & RF Integrated Circuits. The manufacturer specializes in providing specialized RF interconnects and active components for high-frequency applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate other waveguide LNA models from Fairview Microwave or alternative manufacturers based on matching WR28 interface and 27-40 GHz operational bandwidth.

FAQ

What is the input/output interface type for the FMAM1077?

The FMAM1077 uses a WR28 waveguide interface.

What is the operating voltage for this amplifier?

The device operates at 15 V.
