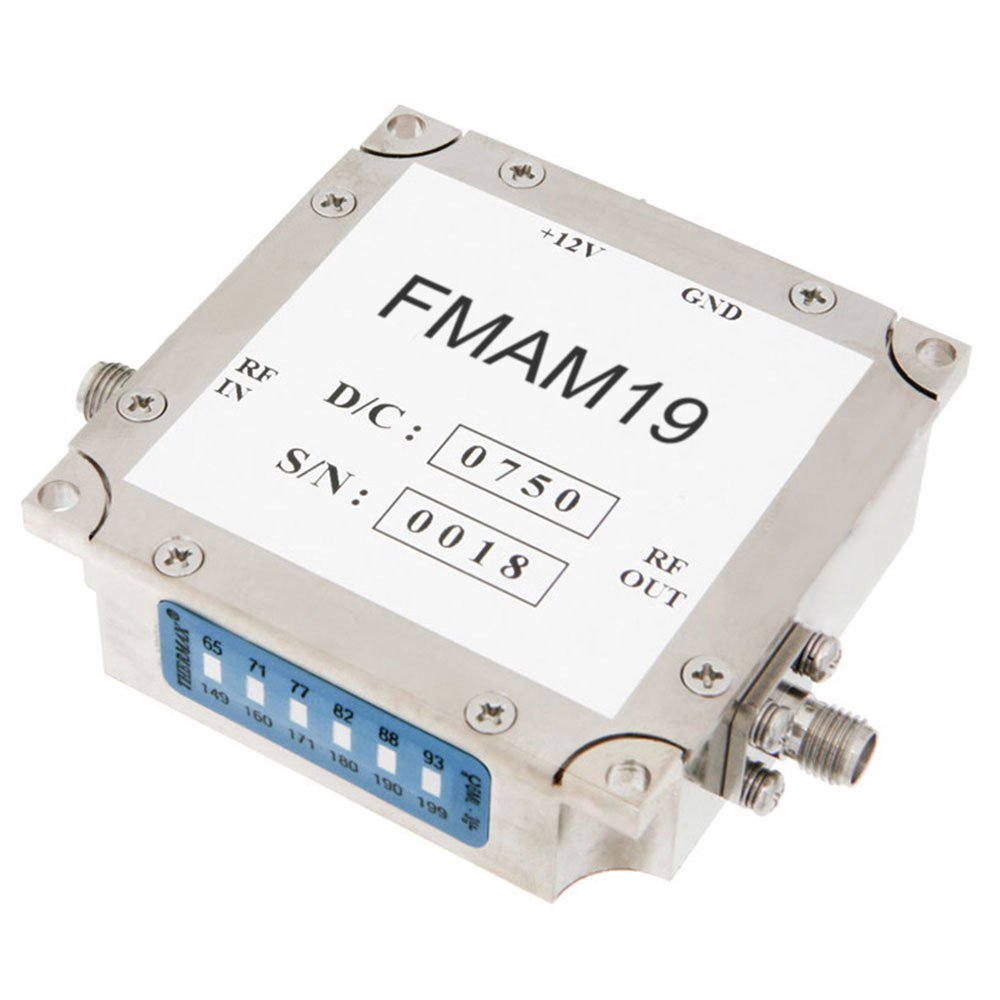

FMAM19

$361.17

Description：GAIN BLOCK AMP SMA 1GHZ-4GHZ 26
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:1b85b5ae2d12 Category: RF Amplifiers Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：GAIN BLOCK AMP SMA 1GHZ-4GHZ 26
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency：1GHz ~ 4GHz
P1dB：15dBm
Gain：26dB
Noise Figure：2.5dB
RF Type：General Purpose
Voltage - Supply：12V
Current - Supply：120mA
Test Frequency：-
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FMAM19

Overview

The FMAM19 is a block amplifier manufactured by Fairview Microwave, designed for radio frequency signal amplification. It operates within a frequency range of 1 GHz to 4 GHz. The device provides a gain of 26 dB and features a 1 dB compression point (P1dB) of 15 dBm. It utilizes SMA connectors for input and output interfaces.

Feature Summary

Provides 26 dB gain across the 1 GHz to 4 GHz operating band
Features SMA connectors for standard RF interfacing
Designed as a block amplifier for signal conditioning

Applications

RF signal chain integration
Test and measurement equipment
Communication systems

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm datasheet revision and electrical specifications match application requirements. Check current availability status as supply conditions may vary. Ensure proper handling procedures are followed during installation.

Selection Notes

Select this model when a 26 dB gain is required within the 1-4 GHz spectrum. Consider the 15 dBm P1dB limit for linearity requirements. Verify SMA connector compatibility with existing system interfaces. Evaluate thermal management needs based on power dissipation characteristics.

Part Context

This component belongs to the Fairview Microwave RF Amplifier product line. It falls under the category of wireless and RF integrated circuits. The manufacturer specializes in microwave and RF components for various electronic applications.
