FMAM3291

Overview

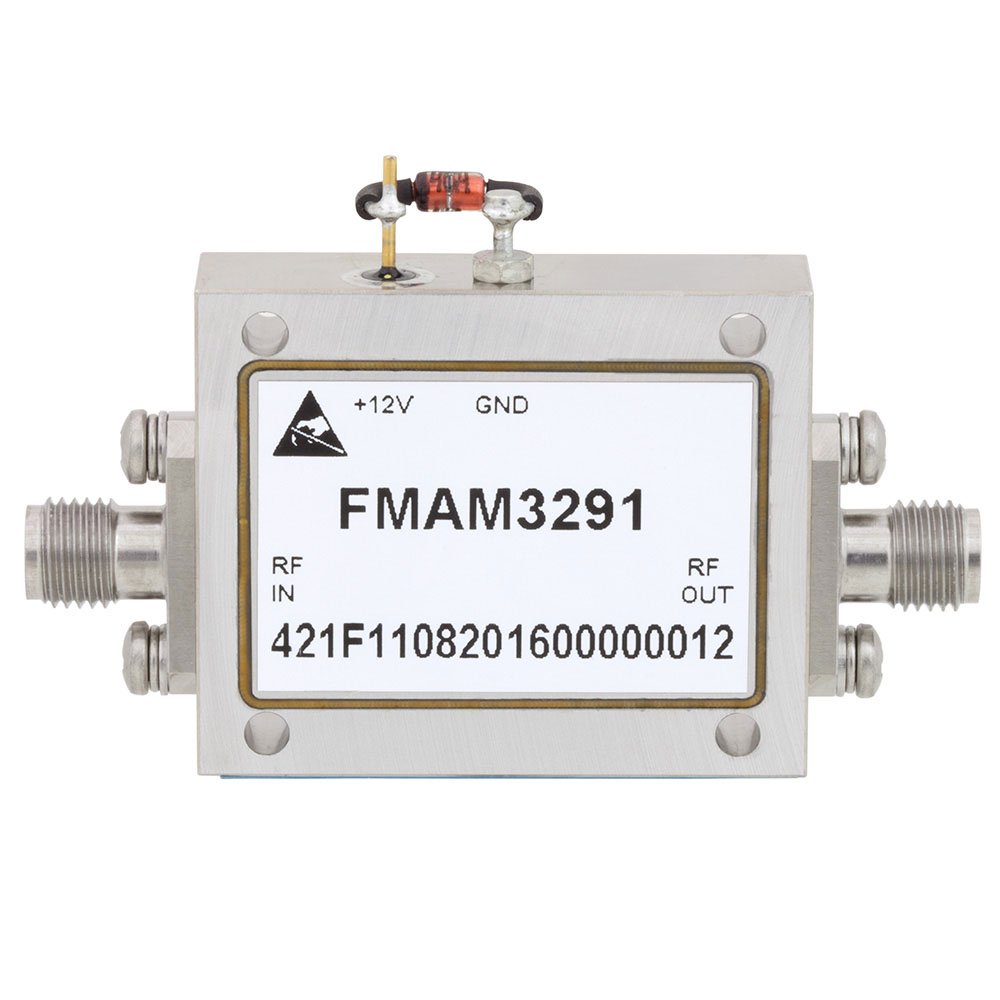

The FMAM3291 is a low noise broadband amplifier manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 8 GHz and features a nominal gain of 30 dB. The device exhibits a noise figure of 2.5 dB and provides an output power of 13 dBm at the 1-dB compression point. It utilizes SMA connectors for interfacing.

Feature Summary

• Broadband amplification across the 2 GHz to 8 GHz spectrum
• Low noise figure specification of 2.5 dB
• High gain performance with 30 dB nominal value
• SMA connector interface configuration

Applications

• RF signal chain integration
• Test and measurement instrumentation
• Communication system front-ends

Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm datasheet revisions match procurement requirements. Ensure environmental specifications align with operational conditions. Validate connector types and pinouts against system interface needs before acquisition.

Selection Notes

Evaluate the 30 dB gain and 2.5 dB noise figure against system link budget requirements. Consider the 2 GHz to 8 GHz operating range for frequency compatibility. Assess the 13 dBm output power capability relative to downstream component input levels. Verify SMA connector suitability for the specific application environment.

Part Context

This component belongs to the Fairview Microwave RF Amplifier product line, specifically categorized under wireless and radio frequency integrated circuits. It serves as a discrete active device designed for signal conditioning within broader electronic systems requiring precise amplification characteristics.
