FMAM3300

Overview

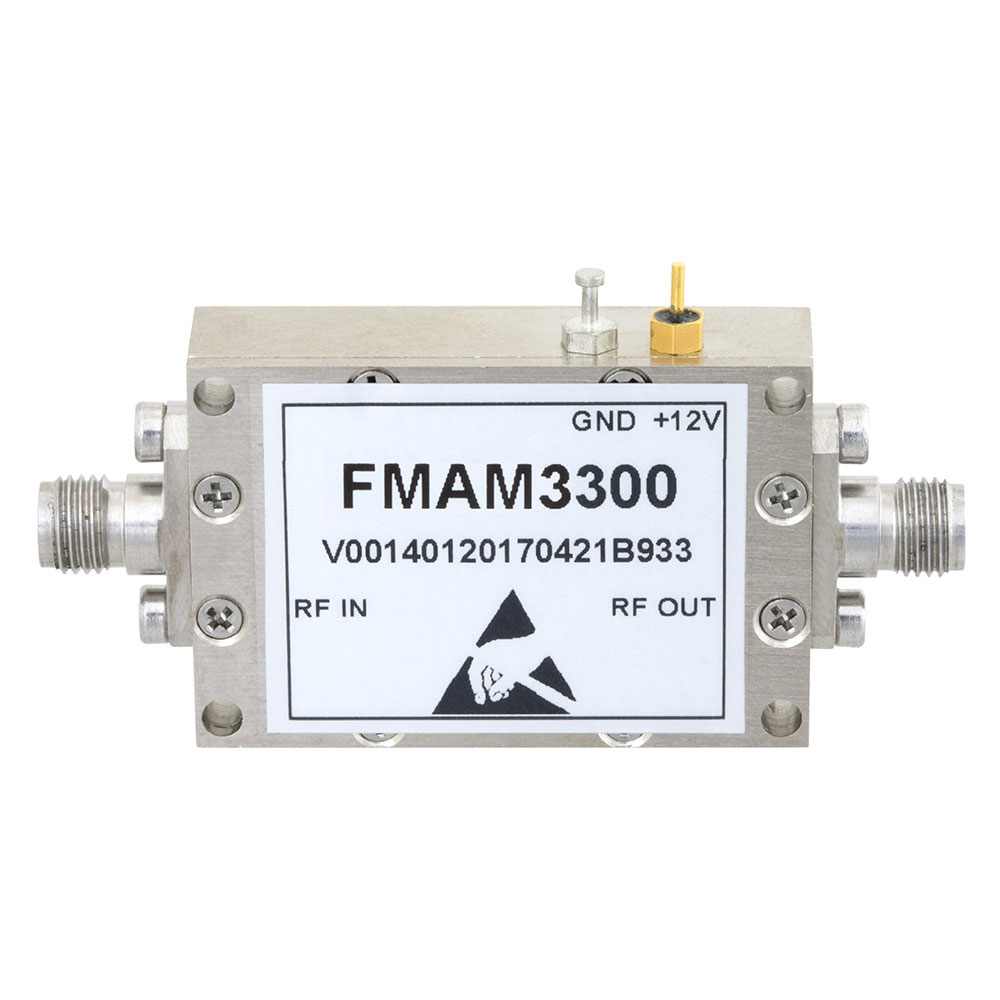

The FMAM3300 is an RF amplifier manufactured by Fairview Microwave, designed for high-frequency applications. It operates within a frequency range of 26.5 GHz to 40 GHz. The component provides a gain of 43 dB and features a noise figure of 2 dB. Key performance metrics include a P1dB output power of 12 dBm. The device utilizes 2.92mm connectors for interface compatibility.

Feature Summary

• Operates in the millimeter-wave frequency spectrum from 26.5 GHz to 40 GHz
• Provides high signal amplification with 43 dB gain
• Maintains low noise characteristics with a 2 dB noise figure

Applications

• Millimeter-wave communication systems
• Test and measurement instrumentation
• Satellite ground station equipment

Procurement Notes

Verify compliance status including RoHS and REACH regulations before integration. Confirm connector type matches system requirements. Check datasheet for thermal management needs. Ensure operating voltage aligns with power supply capabilities. Validate frequency range against application specifications.

Selection Notes

Choose this amplifier for applications requiring operation above 26 GHz. Consider the 2.92mm interface for precision connections. Evaluate the 12 dBm P1dB limit for linearity requirements. Assess the 2 dB noise figure impact on system sensitivity. Compare gain stability across the full bandwidth.

Part Context

Fairview Microwave produces specialized RF components for demanding environments. The FMAM3300 belongs to their RF amplifier series. These components support high-frequency signal processing. The manufacturer focuses on reliable interconnect solutions. This model targets niche millimeter-wave markets.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
