FMAM3304

Overview

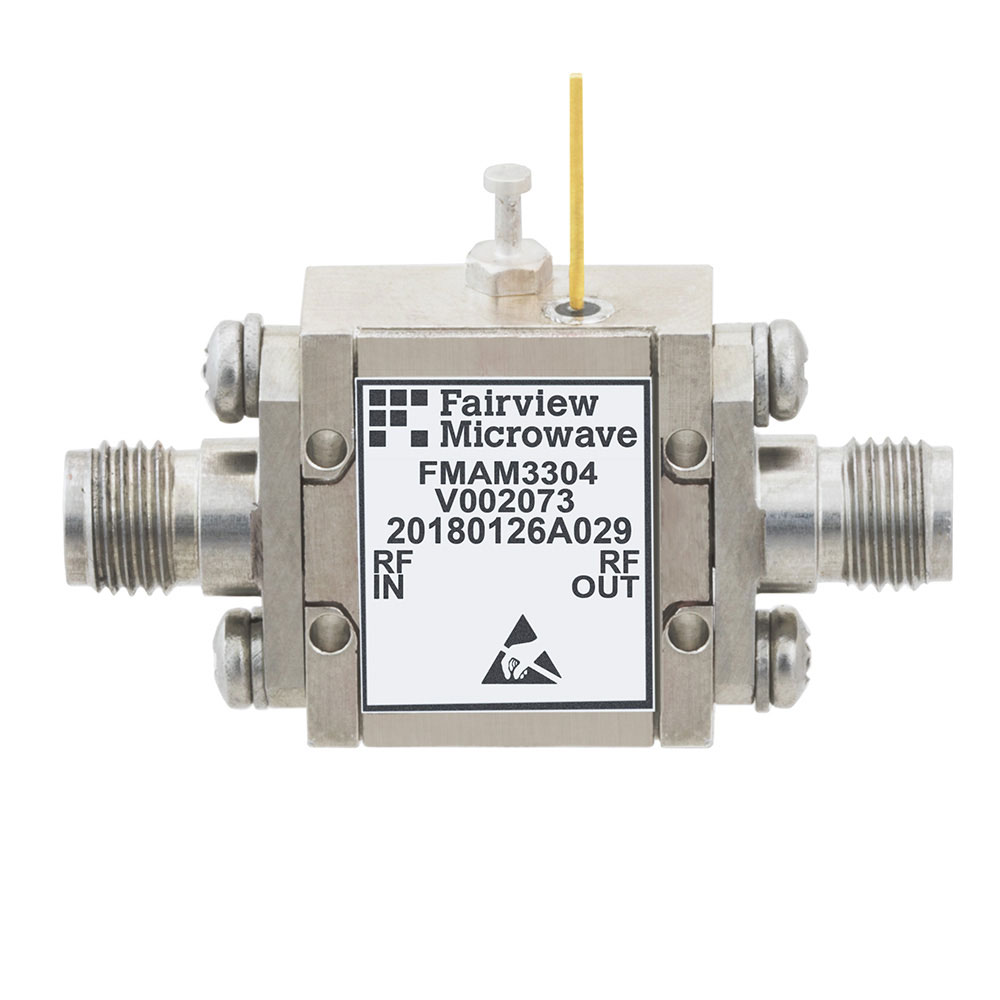

The FMAM3304 is a low noise broadband amplifier manufactured by Fairview Microwave. It operates within the frequency range of 18 GHz to 40 GHz. The device provides a gain of 30 dB and features a noise figure of 4.5 dB. It delivers an output power of 10 dBm. The component utilizes a 2.92mm interface connector.

Feature Summary

• Broadband amplification across the 18 GHz to 40 GHz spectrum
• Low noise figure for sensitive signal reception
• High gain capability for signal boosting

Applications

• Test and measurement instrumentation
• Aerospace and defense radar systems
• Satellite communication links

Procurement Notes

Verify the specific datasheet version and connector orientation prior to ordering. Confirm that the 2.92mm interface matches the system requirements. Ensure the operating environment supports the specified frequency range and power levels. Check for any specific handling instructions regarding high-frequency components.

Selection Notes

Select this model when broadband coverage from 18 GHz to 40 GHz is required. The 4.5 dB noise figure makes it suitable for low-signal applications. The 30 dB gain is adequate for general amplification needs in this band. Consider the 2.92mm connector compatibility with existing test fixtures.

Part Context

This component belongs to Fairview Microwave's RF amplifier portfolio, designed for high-frequency applications. It serves as a critical element in systems requiring signal integrity over wide bandwidths. The product is positioned for professional engineering and industrial use cases.
