FMAM3501

Overview

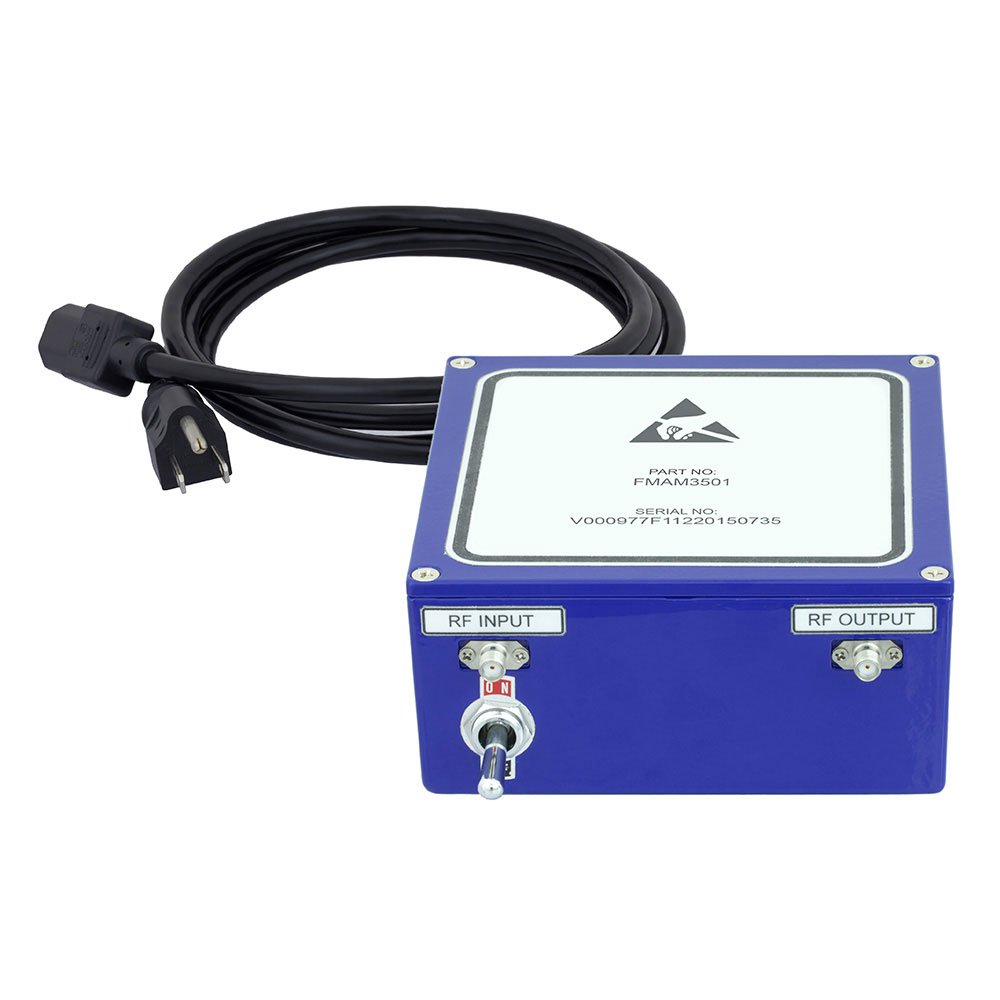

The FMAM3501 is a broadband high gain amplifier manufactured by Fairview Microwave, designed for operation within the 20 GHz to 40 GHz frequency range. This RF amplifier provides a nominal gain of 30 dB and supports an input power level of 10 dBm. The component utilizes 2.92mm connectors for signal interfacing. It is classified as a general-purpose RF amplifier module intended for high-frequency applications requiring stable amplification performance across the specified millimeter-wave spectrum.

Feature Summary

• Provides broadband amplification with 30 dB gain across the 20 GHz to 40 GHz operational range
• Utilizes 2.92mm connector interface for precise signal transmission
• Supports 10 dBm input power levels for standard signal handling

Applications

• Millimeter-wave communication systems
• Test and measurement instrumentation
• Radar signal processing

Procurement Notes

Verify the specific datasheet version and connector tolerance requirements before procurement. Confirm that the 2.92mm interface compatibility matches existing system infrastructure. Ensure thermal management solutions are adequate for continuous operation at 40 GHz. Validate supply chain authenticity through authorized Fairview Microwave channels to guarantee component integrity and performance specifications.

Selection Notes

Select the FMAM3501 when application requirements demand high gain in the 20-40 GHz band. Consider the 2.92mm connector type for interface compatibility. Evaluate the 30 dB gain against system noise figure budgets. Assess the 10 dBm input power capability relative to source signal levels. Compare physical module dimensions against available chassis space constraints.

Part Context

This component belongs to the Fairview Microwave RF amplifier product line, specifically engineered for high-frequency wireless and radar applications. It complements other broadband amplifiers in the manufacturer's portfolio by addressing the upper millimeter-wave spectrum needs. The module design integrates GaN or similar technology to achieve stable performance in demanding electromagnetic environments.
