FMAM3595

Overview

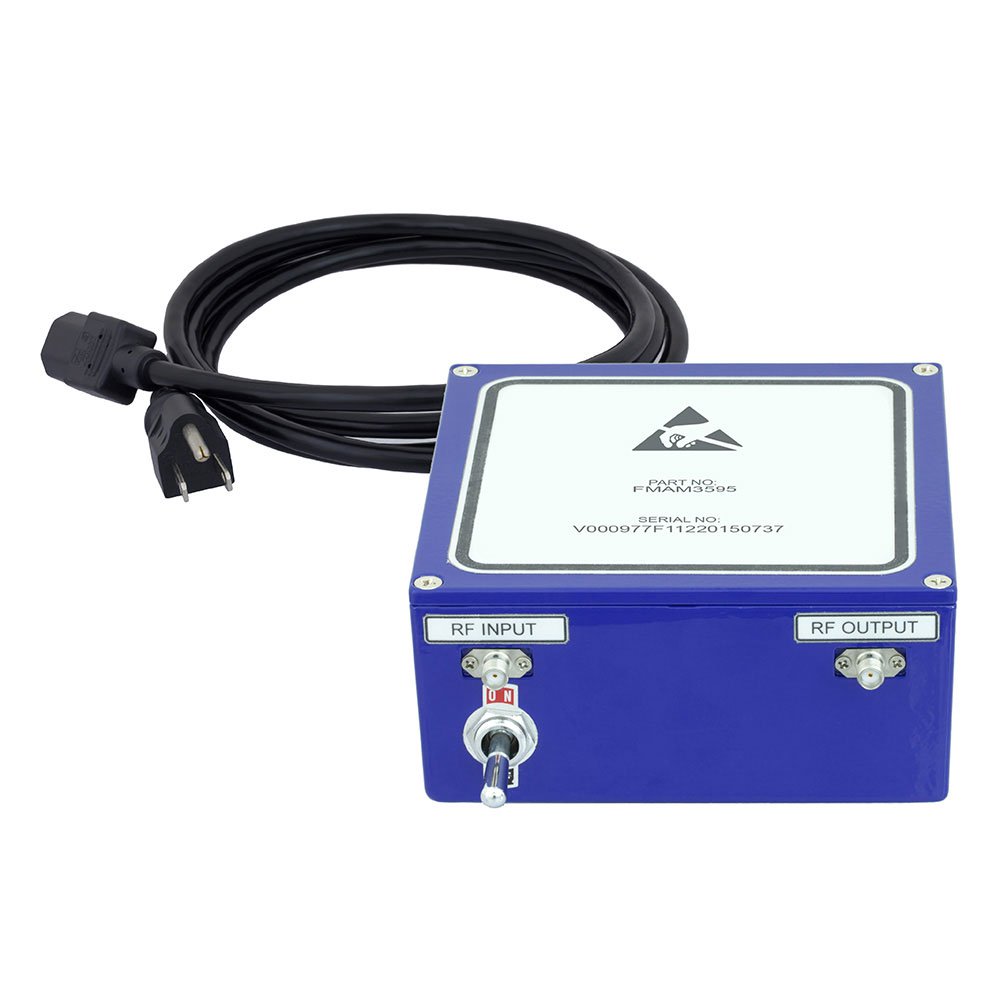

The FMAM3595 is a broadband high gain amplifier manufactured by Fairview Microwave, designed for operation across the 1.0 to 40.0 GHz frequency range. It delivers a typical gain of 40 dB with a P1dB output power of +22 dBm. The unit requires a 120 VAC power supply and utilizes 2.92mm connectors for signal interfacing.

Feature Summary

• Provides broadband amplification across an ultra-wide frequency spectrum from 1.0 to 40.0 GHz
• Delivers high gain performance with a typical value of 40 dB
• Supports high output power capability at the P1dB compression point

Applications

• High-frequency test and measurement systems requiring wideband signal amplification
• Satellite communication ground station equipment
• Radar system signal processing chains

Procurement Notes

Verify that the specific order includes the required 120 VAC power supply configuration, as this is distinct from standard DC-powered RF modules. Confirm connector type compatibility with existing 2.92mm interfaces before integration. Ensure environmental conditions match the operational specifications for reliable performance in high-frequency applications.

Selection Notes

Select this component when a single-stage solution is needed for frequencies up to 40 GHz. The 40 dB gain suits applications demanding significant signal boost without cascading multiple stages. Consider the 120 VAC requirement for power infrastructure planning compared to lower voltage alternatives.

Part Context

This model belongs to Fairview Microwave's portfolio of portable and benchtop RF amplifiers. It serves as a specialized solution for ultra-wideband testing scenarios where standard amplifiers cannot cover the full 1 to 40 GHz range. The design integrates high-performance active components within a ruggedized enclosure suitable for laboratory or field use.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific ultra-wideband specification. Alternative solutions may require cascaded amplifier stages to achieve similar bandwidth and gain characteristics.
