FMAM4038

Overview

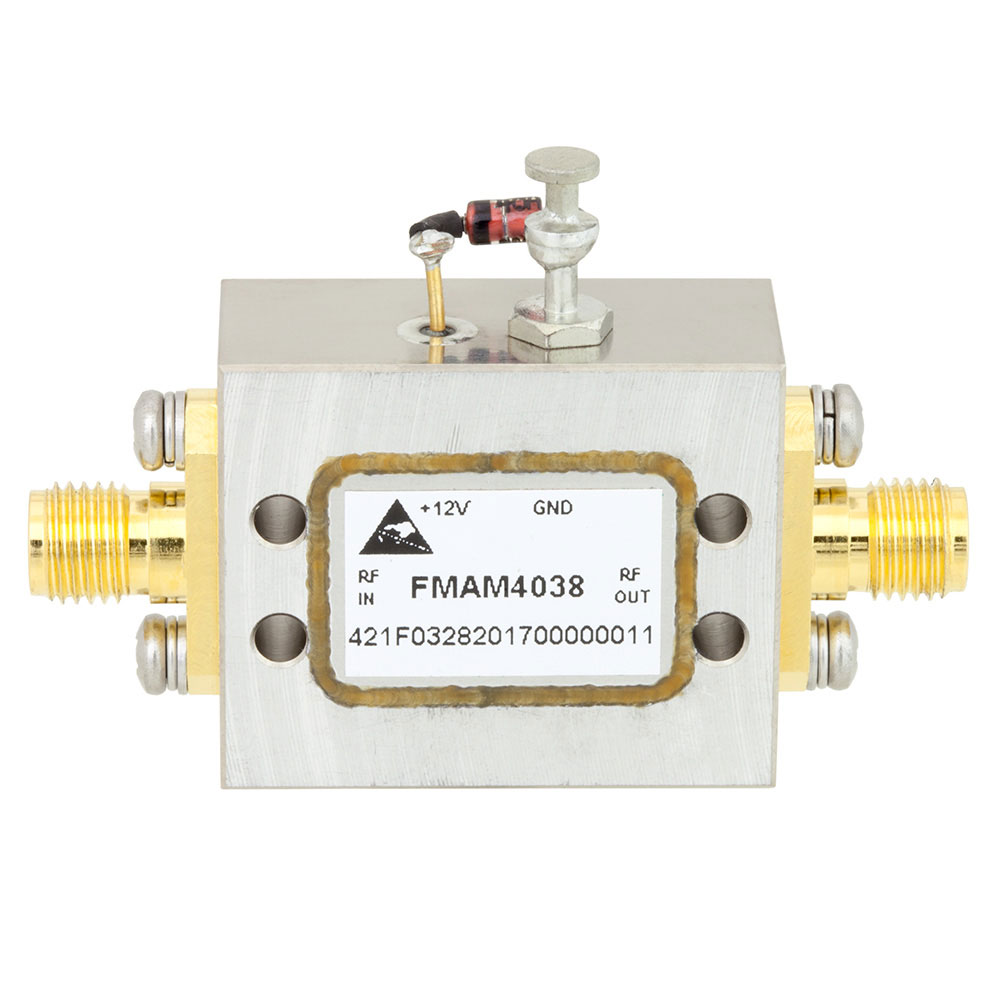

The FMAM4038 is a medium power broadband RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 500 MHz to 2 GHz. The device provides a gain of 14 dB and an output power of 24 dBm. It requires an operating supply voltage between 11 V and 15 V. The unit features SMA connectors for signal interfacing.

Feature Summary

• Broadband amplification across the 500 MHz to 2 GHz spectrum
• Medium power output capability with 24 dBm specification
• Integrated SMA interface connectors

Applications

• RF signal chain integration
• Test and measurement instrumentation
• Communication system prototyping

Procurement Notes

Verify component authenticity through authorized Fairview Microwave distributors or certified partners. Confirm datasheet revisions match the specific batch delivered. Ensure supply voltage requirements align with system design before deployment. Check for RoHS compliance documentation if required by project specifications.

Selection Notes

Select this model when a broadband solution is needed between 500 MHz and 2 GHz. Consider the 14 dB gain and 24 dBm output power against system linearity requirements. Verify that the SMA connector type matches existing board layouts. Ensure the 11 V to 15 V supply range is compatible with available power rails.

Part Context

This component belongs to the Fairview Microwave RF amplifier portfolio, designed for wireless and RF integrated circuit applications. It serves as a discrete active element for signal conditioning in high-frequency environments.
