FMAM4041

Overview

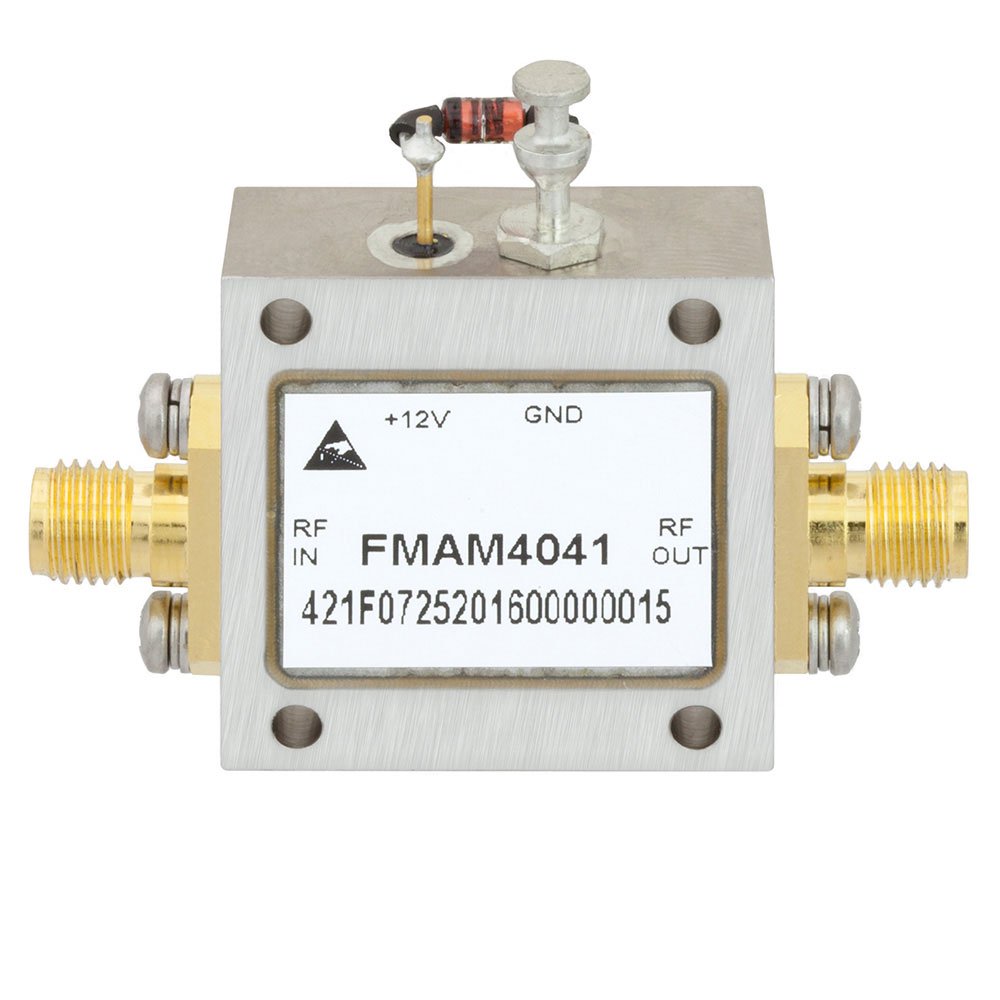

The FMAM4041 is a medium power broadband RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 6 GHz and features SMA connectors for input and output interfaces. The device provides a gain of 22 dB and delivers an output power of 500 mW. This component is designed for applications requiring reliable signal amplification across the specified microwave frequency band.

Feature Summary

• Broadband operation capability spanning from 2 GHz to 6 GHz
• Medium power output performance with 500 mW specification
• Integrated SMA connector interfaces for direct system integration

Applications

• Microwave communication systems
• Test and measurement equipment
• Signal distribution networks

Procurement Notes

Verify the specific datasheet version and manufacturer documentation before finalizing design integration. Confirm that the SMA interface compatibility matches your system requirements. Ensure thermal management solutions are adequate for the 500 mW output power level during continuous operation. Check for any RoHS compliance certifications if required by your manufacturing standards.

Selection Notes

Select this amplifier when a fixed 22 dB gain is sufficient for your application needs. Consider the 500 mW power limit when designing for high-linearity requirements. Evaluate the SMA connector type against existing infrastructure to avoid adapter usage. Compare performance metrics against other broadband amplifiers in the 2-6 GHz range for optimal system efficiency.

Part Context

This component belongs to the Fairview Microwave RF amplifier product line, specifically categorized as a medium power broadband solution. It serves as a discrete active device for signal conditioning in microwave frequencies. The SMA interface standardizes its connectivity within common laboratory and industrial test setups.

Replacement Considerations

No public confirmed substitute part numbers are available.
