FMAM4042

Overview

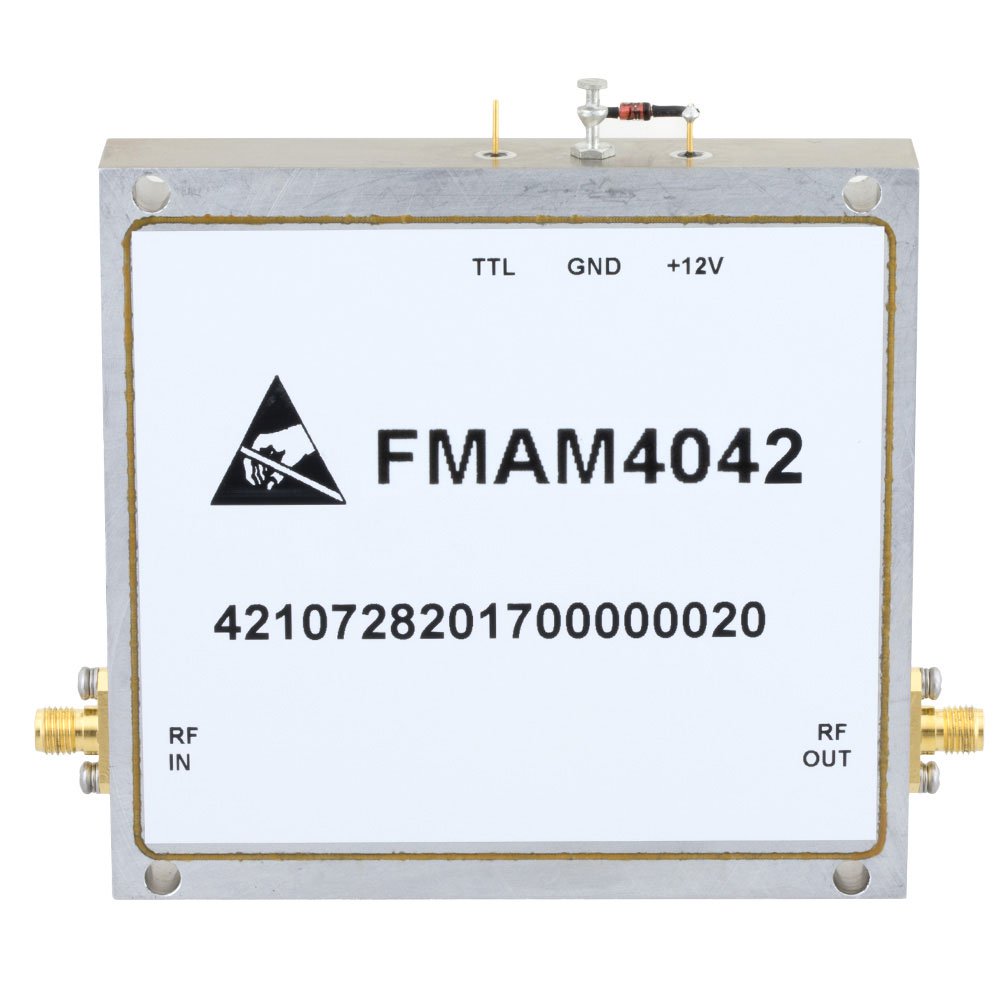

The FMAM4042 is a medium power broadband RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 6 GHz and utilizes SMA connectors for input and output interfaces. The component delivers a gain of 36 dB and supports an output power level of 3 Watts. This amplifier is designed for applications requiring stable performance across its specified bandwidth, providing reliable signal amplification in radio frequency systems.

Feature Summary

• Broadband operation spanning 2 GHz to 6 GHz
• Medium power capability with 3 Watt output
• High gain performance at 36 dB
• Standard SMA connector interface

Applications

• RF signal distribution systems
• Test and measurement equipment
• Communication infrastructure components

Procurement Notes

Verify the specific datasheet version for the FMAM4042 to confirm current electrical tolerances and mechanical dimensions. Ensure that the SMA connector mating requirements align with system design specifications. Check manufacturer documentation for any updates regarding material composition or compliance standards before finalizing procurement plans.

Selection Notes

Select the FMAM4042 when a broadband solution is required between 2 GHz and 6 GHz with moderate power handling. The 36 dB gain suits applications needing significant signal boost without excessive linearity concerns typical of high-power stages. Consider thermal management if operating continuously near the 3 Watt limit.

Part Context

This component belongs to Fairview Microwave's portfolio of RF amplifiers, specifically targeting the medium power segment. It complements other models like the FMAM4052F and FMAM4062F by offering a distinct frequency range and power profile suitable for different stages of RF chain design.

FAQ

What is the operating frequency range?

The FMAM4042 operates from 2 GHz to 6 GHz.

What type of connectors does it use?

It uses SMA connectors for both input and output.
