FMAM4052F

Overview

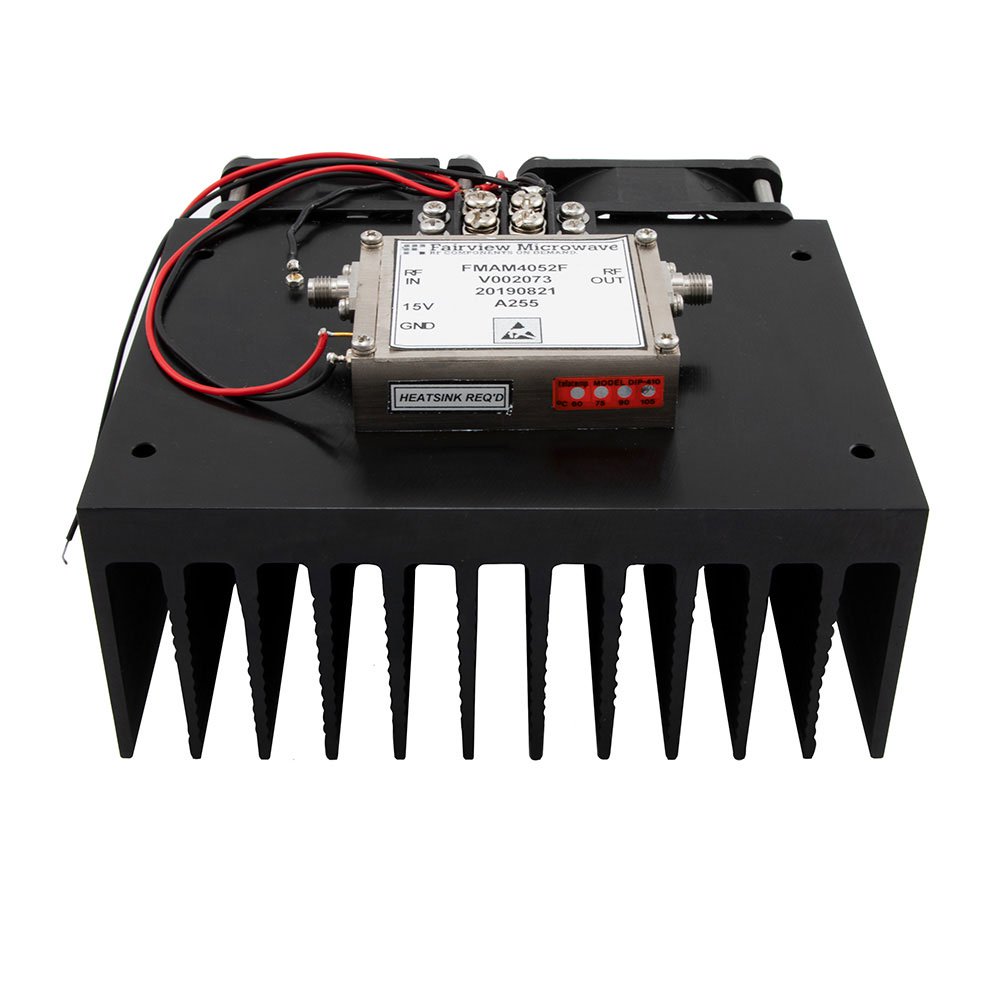

The FMAM4052F is a medium power RF amplifier module manufactured by Fairview Microwave. It operates within a frequency range of 100 MHz to 18 GHz and features SMA connectors for input and output interfaces. The device delivers a P1dB output power of 31 dBm and maintains a noise figure of 6 dB. Designed for robust thermal management, the unit includes an integrated heatsink. The component weighs 1.361 kg and is packaged in a bag configuration.

Feature Summary

• Integrated heatsink design for enhanced thermal dissipation during operation
• Wideband operational capability spanning from 100 MHz to 18 GHz
• High output power performance with 31 dBm P1dB specification

Applications

• RF signal amplification in wideband communication systems
• Test and measurement instrumentation requiring high-frequency gain
• Military and aerospace radar subsystems

Procurement Notes

Verify current supply status directly with the manufacturer or authorized distributors, as availability may be restricted. Confirm that the SMA connector interface and specific frequency range requirements align with your system design before procurement. Ensure proper thermal handling procedures are established due to the integrated heatsink and significant unit weight.

Selection Notes

Select this model when a wide frequency span up to 18 GHz is required alongside substantial output power. The integrated heatsink makes it suitable for applications where external cooling solutions are impractical. Verify that the 6 dB noise figure meets the sensitivity requirements of the intended signal chain.

Part Context

This component belongs to the Fairview Microwave RF Amplifier product line, specifically categorized under wireless and RF modules. It represents a specialized solution for engineers needing reliable mid-power amplification across multiple microwave bands without requiring complex external thermal management infrastructure.

Replacement Considerations

Consult official Fairview Microwave documentation for verified substitute part numbers. No public substitutes are confirmed in available records.
