FMAM4054F

Overview

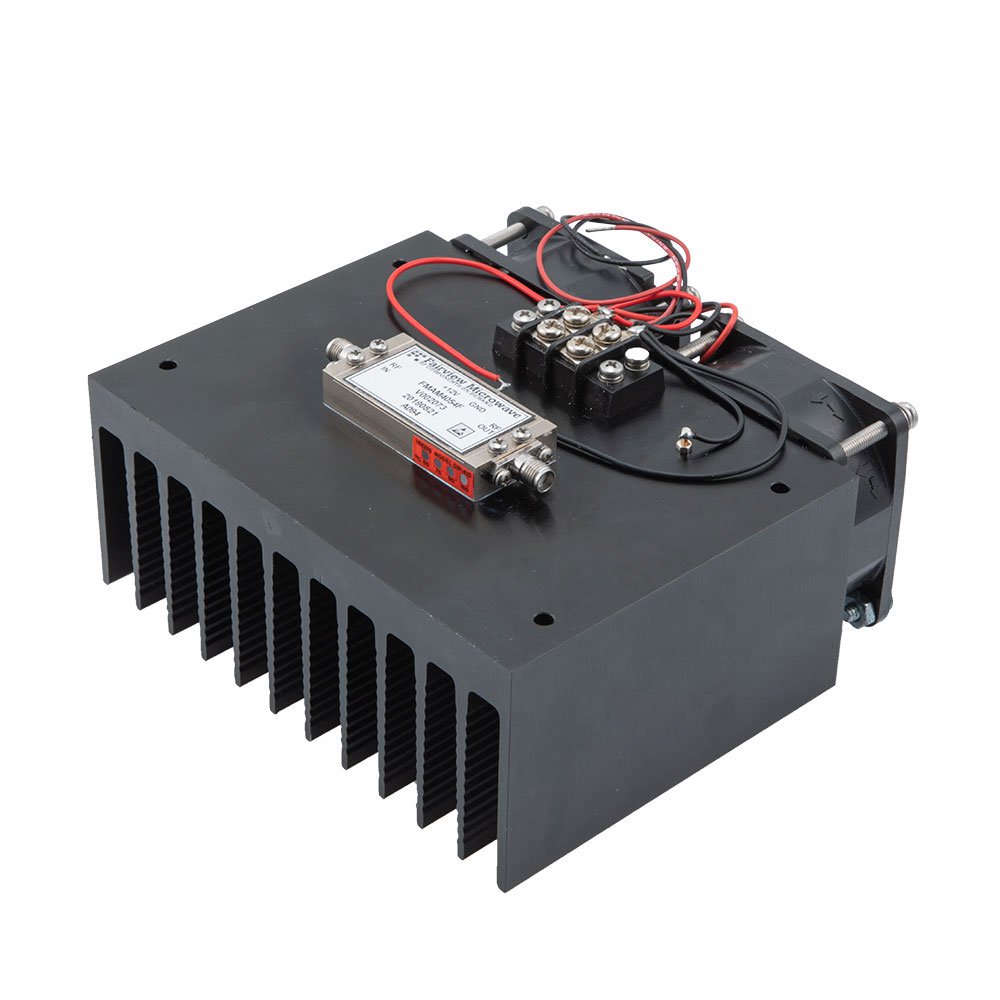

The FMAM4054F is a medium power RF amplifier manufactured by Fairview Microwave, designed for operation within the 2 GHz to 8 GHz frequency range. It features an integrated heatsink and utilizes SMA connectors for signal interfacing. The device operates with a supply current of 1.2 A and delivers a P1dB output power of 1 Watt. Packaged in a bag with a unit weight of 1.361 kg, this component serves as a specialized radio frequency solution for wireless applications requiring stable amplification across its specified bandwidth.

Feature Summary

• Integrated heatsink design for thermal management
• SMA connector interface for standard RF connections
• Medium power amplification capabilities

Applications

• Wireless communication systems
• Radar signal processing
• Test and measurement equipment

Procurement Notes

Verify specific availability status through authorized distributors, as stock levels may be restricted or subject to regional sales limitations. Confirm that the SMA connector type aligns with existing system requirements. Ensure the operating supply current of 1.2 A is supported by the power infrastructure. Review the official datasheet for detailed electrical characteristics and mechanical dimensions before integration into final designs.

Selection Notes

Select the FMAM4054F when a medium power amplifier is required for frequencies between 2 GHz and 8 GHz. Consider the integrated heatsink if thermal dissipation is a critical design constraint without external cooling solutions. Verify compatibility with SMA interfaces and ensure the power supply can provide the necessary 1.2 A operating current. This component is suitable for applications prioritizing reliable RF performance within its defined operational bandwidth.

Part Context

The FMAM4054F belongs to Fairview Microwave's portfolio of radio frequency amplifiers, specifically categorized under medium power devices. It is part of a series designed for wireless and RF integrated circuit applications. Similar models in the product line include the FMAM4026 and FMAM4061F, which offer different frequency ranges and power outputs while maintaining comparable connector types and packaging styles for modular system integration.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate alternative Fairview Microwave models such as the FMAM4026 or FMAM4061F based on specific frequency and power requirements. Ensure any replacement matches the SMA interface and thermal management needs of the original design.
