FMAM4060F

Overview

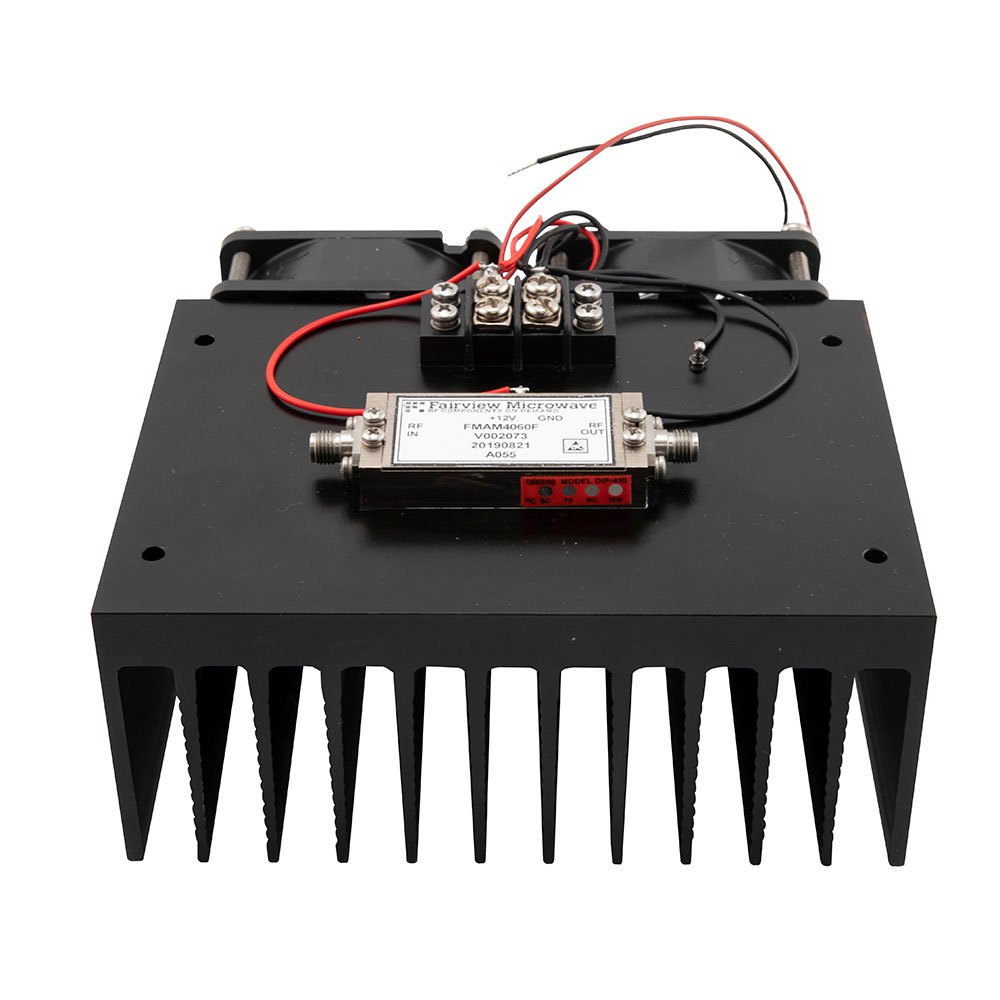

The FMAM4060F is a medium power RF amplifier manufactured by Fairview Microwave, designed for operation within the 6 GHz to 12 GHz frequency range. This component delivers a gain of 40 dB and achieves a 1 dB compression point (P1dB) of 1 Watt. It utilizes SMA connectors for interfacing and is RoHS compliant. The unit is classified as a general-purpose power amplifier suitable for wireless applications requiring high gain and moderate output power in the specified microwave band.

Feature Summary

• Provides 40 dB of signal gain across the operational bandwidth
• Achieves 1 Watt P1dB output power capability
• Operates effectively from 6 GHz to 12 GHz
• Incorporates SMA connector interfaces for integration

Applications

• Wireless communication systems
• Microwave test and measurement equipment
• RF signal distribution networks

Procurement Notes

Verify the specific datasheet version for the FMAM4060F model to confirm exact electrical tolerances and thermal requirements. Ensure that the SMA connector gender and mating specifications align with the system interface design. Confirm RoHS compliance status if environmental regulations apply to the final assembly. Cross-reference the 6-12 GHz frequency range against the actual application spectrum to ensure adequate performance margins.

Selection Notes

Select the FMAM4060F when a fixed 40 dB gain and 1 Watt P1dB output are required within the 6-12 GHz band. Compare against models like FMAM4062F if a wider 6-18 GHz range is needed instead. Consider the SMA interface compatibility with existing PCB or cable assemblies. Evaluate thermal management needs given the medium power classification and heatsink presence typical of this series.

Part Context

This part belongs to Fairview Microwave's medium power amplifier series, characterized by integrated heatsinks and SMA connectivity. It complements other models such as FMAM4061F and FMAM4063F, which offer different frequency ranges or power levels. The series targets applications requiring reliable RF amplification in microwave frequencies without the complexity of custom discrete designs.

Replacement Considerations

FMAM4062F offers a broader 6-18 GHz range with similar 1 Watt P1dB power but may require verification of gain flatness differences. FMAM4061F provides 27 dBm P1dB in the same 6-18 GHz band, representing a lower power alternative. Direct substitution requires checking connector compatibility and thermal dissipation requirements.
