FMAM4062F

Overview

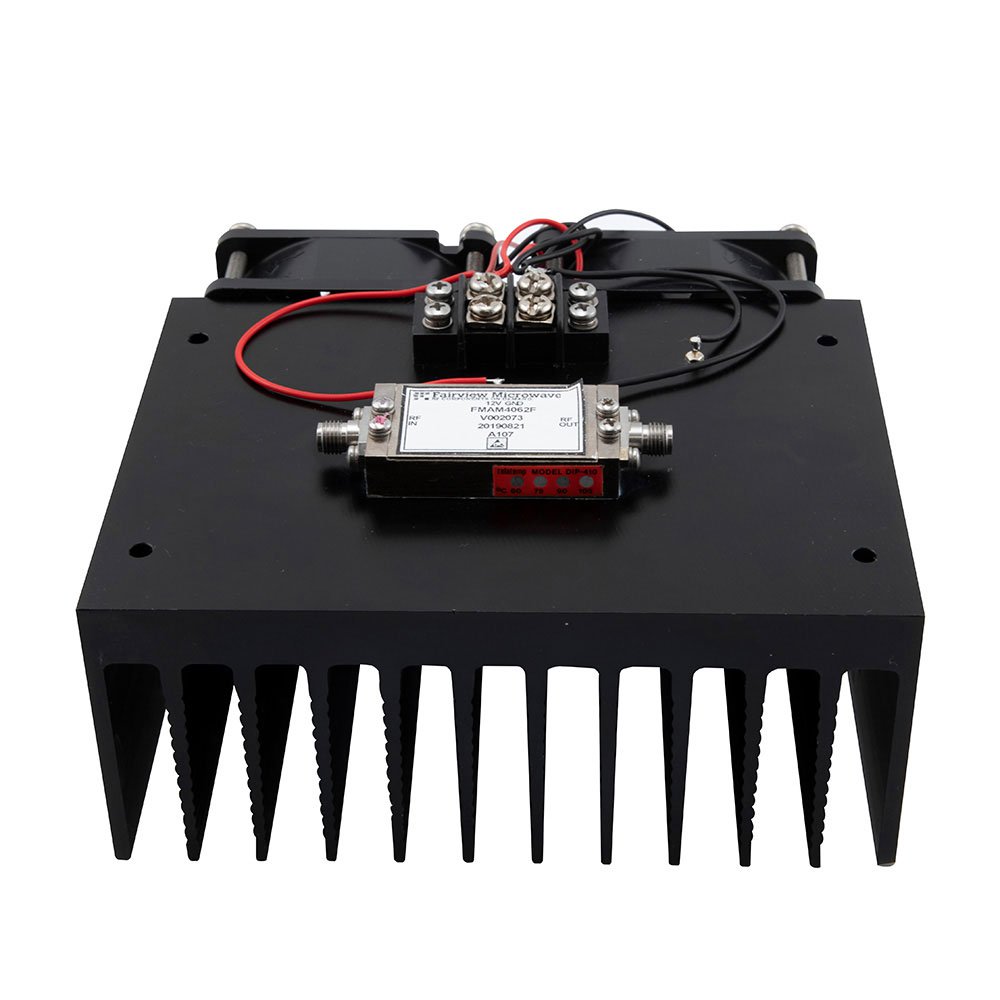

The FMAM4062F is a medium power RF amplifier manufactured by Fairview Microwave, designed for operation within the 6 GHz to 18 GHz frequency range. It features SMA connectors and includes an integrated heatsink for thermal management. The device delivers a P1dB output power of 1 Watt and requires an operating supply current of 1.8 A. Classified under Power Amplifiers in the Wireless & RF Integrated Circuits subcategory, it is packaged individually in bags.

Feature Summary

• Integrated heatsink design for enhanced thermal dissipation
• SMA connector interface for signal connectivity
• Medium power amplification capability

Applications

• RF signal amplification in microwave systems
• Test and measurement equipment
• Wireless communication infrastructure

Procurement Notes

Verify component authenticity through official Fairview Microwave channels or authorized distributors. Confirm datasheet specifications match application requirements, particularly regarding the 1.8 A supply current and 6-18 GHz operational range. Check for RoHS compliance status as indicated in product documentation. Ensure proper handling due to the presence of a heatsink assembly.

Selection Notes

Select this model when a medium power amplifier is required for frequencies between 6 GHz and 18 GHz with SMA interfaces. Consider the 1.8 A current draw for power supply design. The integrated heatsink suggests suitability for applications requiring passive thermal management without additional cooling solutions. Verify compatibility with system impedance and connector types.

Part Context

This component belongs to the Fairview Microwave RF Amplifier line, specifically categorized under Medium Power Amplifiers. It is part of a series offering various frequency ranges and power levels, distinguished by its specific 6-18 GHz coverage and 1 Watt P1dB performance metric.

Replacement Considerations

Consult Fairview Microwave technical support for verified substitute part numbers. Cross-reference specifications such as frequency range, P1dB power, and connector type before considering alternatives from other manufacturers.
