FMAM5030F

Overview

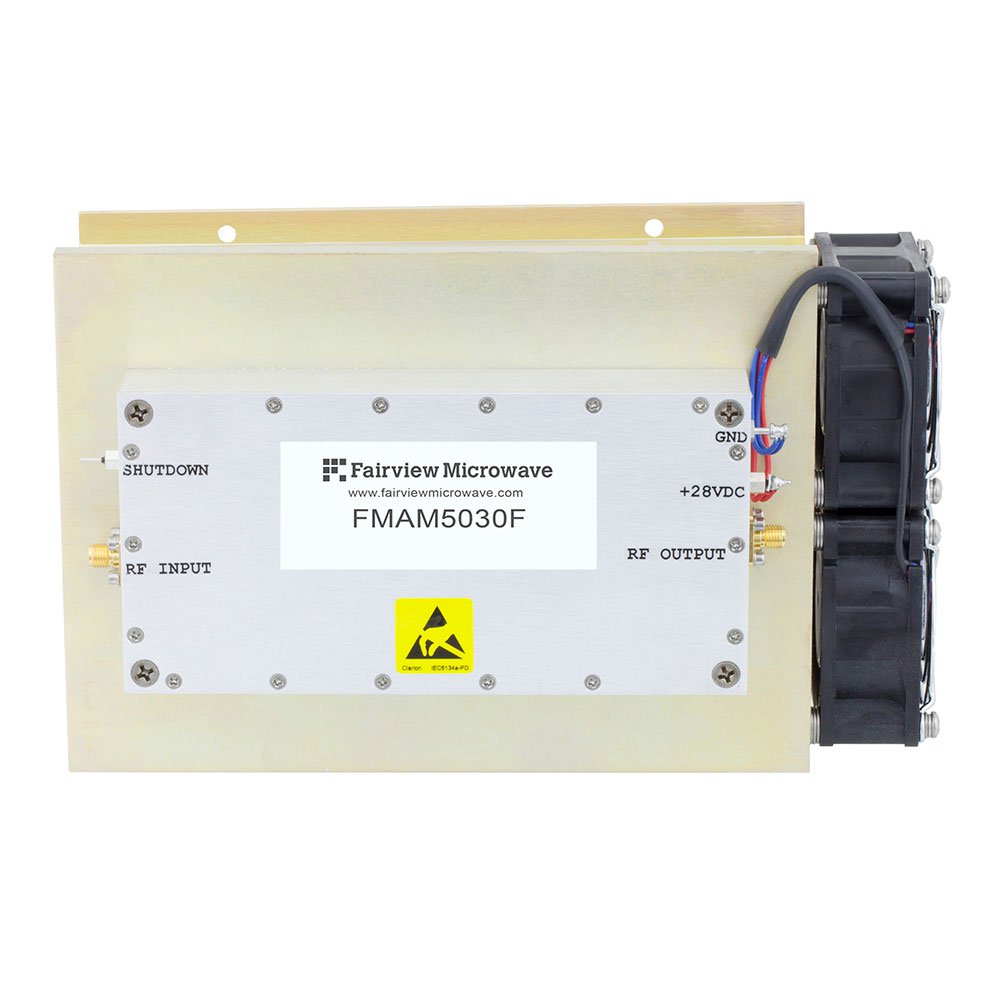

The FMAM5030F is a power amplifier module manufactured by Fairview Microwave, designed for operation within the 1 MHz to 1 GHz frequency range. It features SMA connectors and is packaged as a standalone module. The device delivers a P1dB output power level, making it suitable for applications requiring moderate RF power amplification in the lower microwave spectrum.

Feature Summary

• Operates across a wide frequency band from 1 MHz to 1 GHz
• Integrated SMA input and output connectors for standard interfacing
• Designed as a compact power amplifier module

Applications

• General RF signal amplification
• Test and measurement equipment
• Communication systems operating below 1 GHz

Procurement Notes

Verify the specific P1dB output power rating against the official datasheet before integration, as this parameter defines the linear operating region. Confirm that the SMA connector type matches your system interface requirements. Ensure thermal management solutions are adequate for the expected power dissipation during continuous operation.

Selection Notes

Select this component when a broadband power amplifier is required for frequencies up to 1 GHz. The SMA interface simplifies integration into existing test setups. Consider the P1dB specification to ensure the amplifier meets the linearity needs of your application without excessive compression.

Part Context

This part belongs to Fairview Microwave's portfolio of RF modules and amplifiers. It complements other models like the FMAM5033F, which targets higher frequencies (700 MHz to 2.7 GHz) with significantly higher power output capabilities using GaN technology.
