FMAM5031

Overview

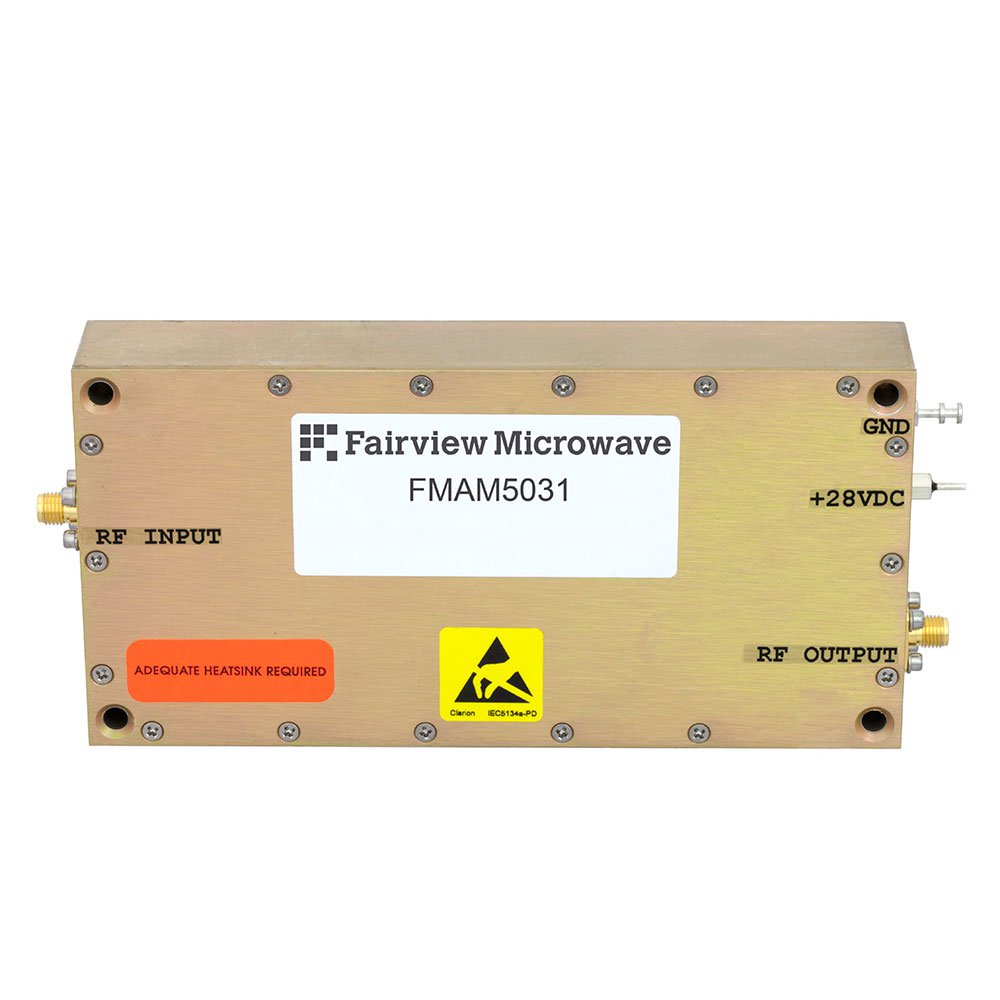

The FMAM5031 is a high-power LDMOS RF amplifier module manufactured by Fairview Microwave. It operates within a frequency range of 20 MHz to 1 GHz and provides a gain of 46 dB. The device delivers a saturated output power (Psat) of 25 watts and features an input third-order intercept point (IP3) of 48 dBm. Electrical connections are facilitated through SMA input and SMA output connectors. The unit includes a heatsink for thermal management.

Feature Summary

• Utilizes LDMOS technology for high-power amplification
• Provides high gain performance across a wide frequency band
• Includes integrated heatsink for thermal regulation

Applications

• RF signal amplification in wireless communication systems
• Test and measurement equipment signal conditioning
• Broadband RF transmission applications

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm datasheet revisions match the specific production lot. Ensure environmental compliance documentation aligns with project requirements. Validate connector integrity and package specifications prior to integration. Review supply chain restrictions and availability status before finalizing procurement plans.

Selection Notes

Select this model when a wideband 20 MHz to 1 GHz operational range is required. Choose the FMAM5031 for applications demanding 25-watt saturated output power. Consider this part for designs requiring 46 dB gain with SMA interface compatibility. Evaluate thermal management needs due to the high-power LDMOS architecture.

Part Context

This component belongs to the Fairview Microwave RF amplifier product line. It is categorized under wireless and RF integrated circuits. The manufacturer specializes in professional RF modules and accessories. This specific model represents a general-purpose high-power solution within their portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available.
