FMAM5032F

Overview

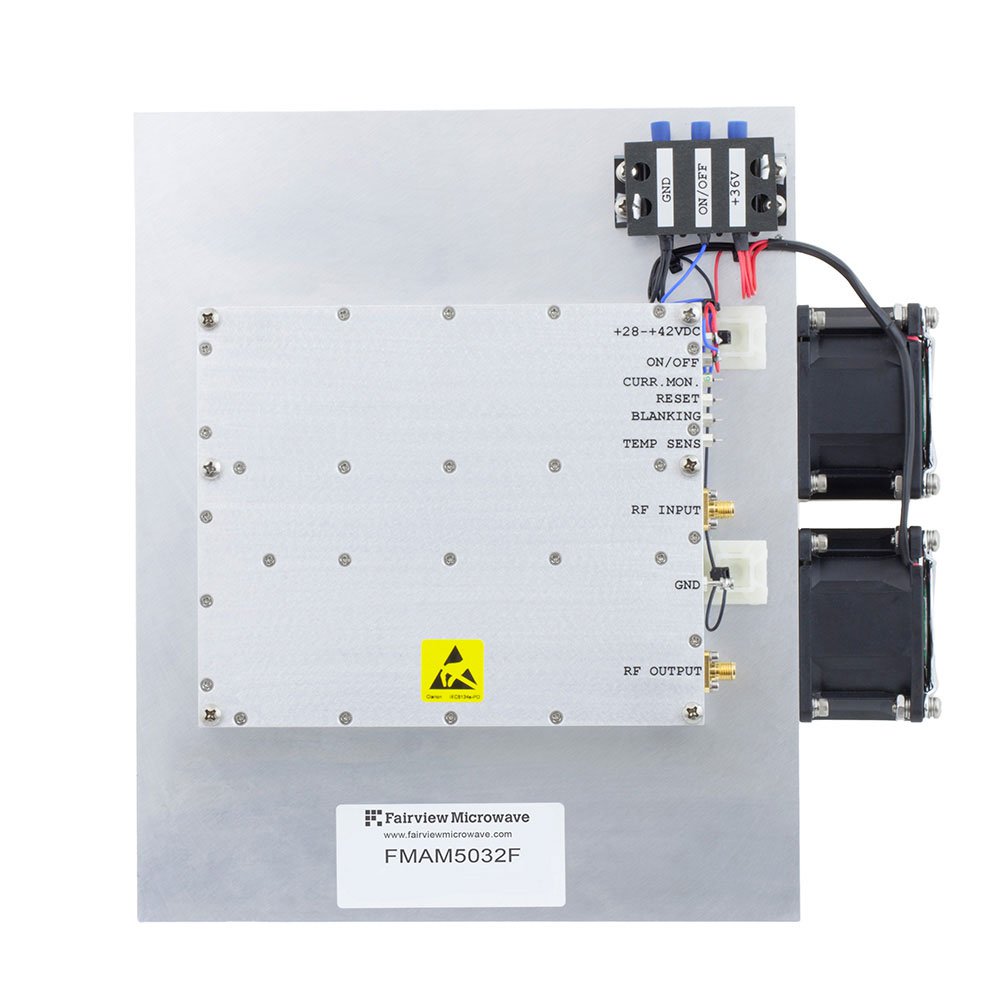

The FMAM5032F is a medium power GaAs amplifier manufactured by Fairview Microwave. It operates within a frequency range of 500 MHz to 3 GHz and delivers a saturated output power (Psat) of 1.5 Watts. The device features an input third-order intercept point (IP3) of 41 dBm, indicating strong linearity for its class. Connectivity is provided via SMA interfaces. The unit is equipped with an integrated heatsink and fan assembly to manage thermal loads during operation. This configuration supports high-power applications requiring reliable signal amplification across the specified UHF and VHF bands.

Feature Summary

• Medium power GaAs technology for efficient amplification
• Integrated heatsink and active cooling fan system
• High linearity performance with 41 dBm IP3
• SMA connector interface for standard RF integration

Applications

• UHF/VHF signal boosting in communication systems
• Test and measurement equipment signal conditioning
• Broadband transmitter output stages
• RF test fixtures requiring high linearity

Procurement Notes

Verify availability through authorized distributors as stock status may be restricted. Confirm that the specific variant includes the required SMA connectors and cooling assembly. Ensure the operating environment supports the thermal management requirements of the integrated fan and heatsink design before finalizing procurement.

Selection Notes

Select this model when a medium power amplifier is needed between 500 MHz and 3 GHz. The 1.5 W Psat and 41 dBm IP3 make it suitable for applications prioritizing linearity over maximum output power. Consider the physical size and power consumption of the integrated cooling solution compared to passive-cooled alternatives.

Part Context

This component belongs to Fairview Microwave's RF Modules category, specifically designed for wireless and RF integrated circuit applications. It complements other medium power amplifiers in the lineup, offering a balance of gain, power, and linearity for general-purpose RF systems.

Replacement Considerations

The FMAM5034 is a documented substitute part number from the same manufacturer. Verify that the FMAM5034's frequency range and power specifications meet the specific application requirements before substitution.
