FMAM5034F

Overview

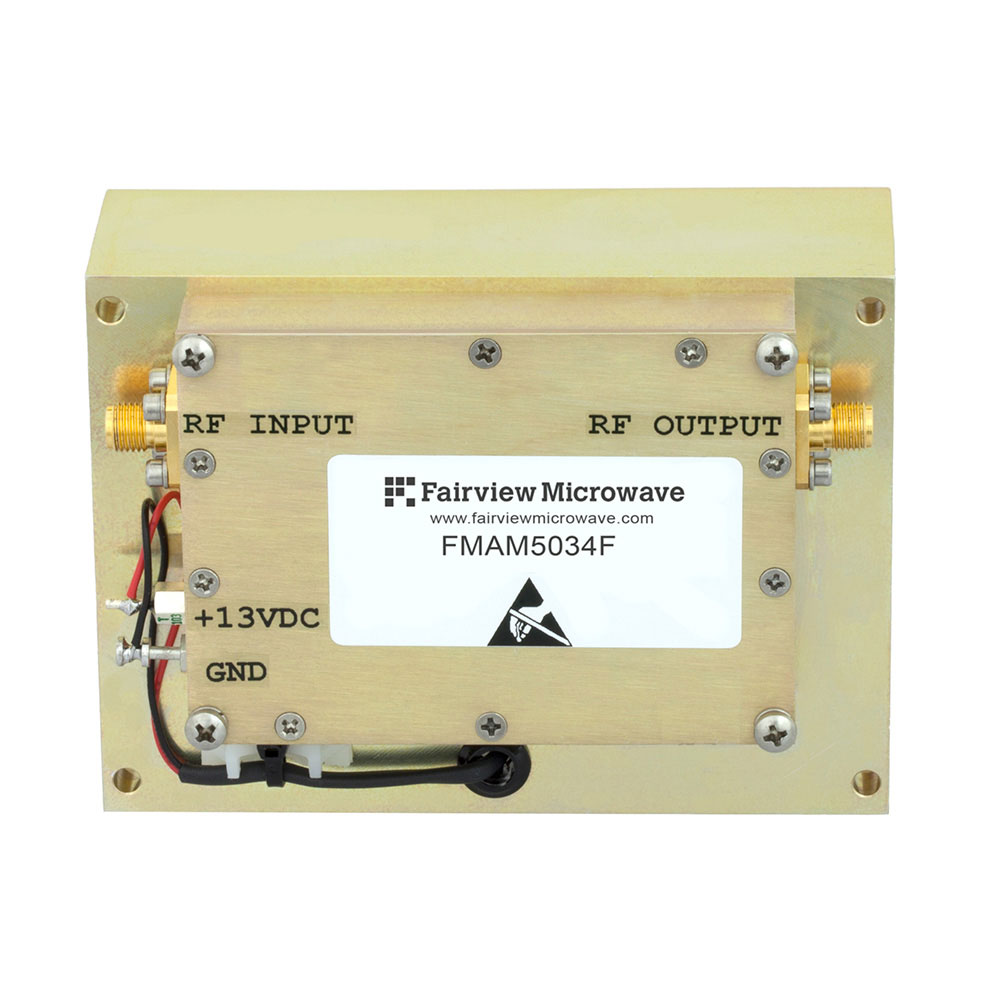

The FMAM5034F is a medium power GaAs RF amplifier module manufactured by Fairview Microwave. It operates within a frequency range of 800 MHz to 4.2 GHz and delivers a saturated output power (Psat) of 1.5 Watts. The device features a third-order intercept point (IP3) of 41 dBm, ensuring linearity in signal processing applications. Connectivity is provided via SMA interfaces. To manage thermal performance during operation, the unit is equipped with an integrated heatsink and fan assembly.

Feature Summary

• Utilizes Gallium Arsenide (GaAs) technology for medium power amplification
• Includes active cooling components consisting of a heatsink and fan
• Provides SMA connector interfaces for RF signal input and output

Applications

• RF signal amplification in communication systems
• Test and measurement equipment requiring stable gain
• Wireless infrastructure components operating within the specified frequency band

Procurement Notes

Verify component authenticity through authorized Fairview Microwave distributors or certified partners. Confirm that the specific revision matches project requirements. Ensure proper handling procedures are followed due to the presence of active cooling elements. Check for any regional distribution restrictions before finalizing procurement plans.

Selection Notes

Select this model when a medium power GaAs solution is required between 800 MHz and 4.2 GHz. Consider the integrated thermal management system if passive cooling is insufficient for the enclosure environment. Verify that SMA connectors align with existing system interconnects. Evaluate the 1.5 Watt Psat against load requirements to ensure adequate headroom.

Part Context

This component belongs to the Fairview Microwave RF amplifier portfolio, specifically designed for medium power applications. It represents a specialized module integrating the amplifier die with necessary thermal control hardware. The product line focuses on providing reliable performance in demanding RF environments without requiring external cooling solutions from the end user.

Replacement Considerations

No public substitute part numbers are documented for this specific configuration. Direct replacement requires matching the GaAs technology, 1.5W Psat, 41dBm IP3, and SMA interface specifications. Any alternative must accommodate the same thermal profile and physical mounting constraints.
