FMAM5035F

Overview

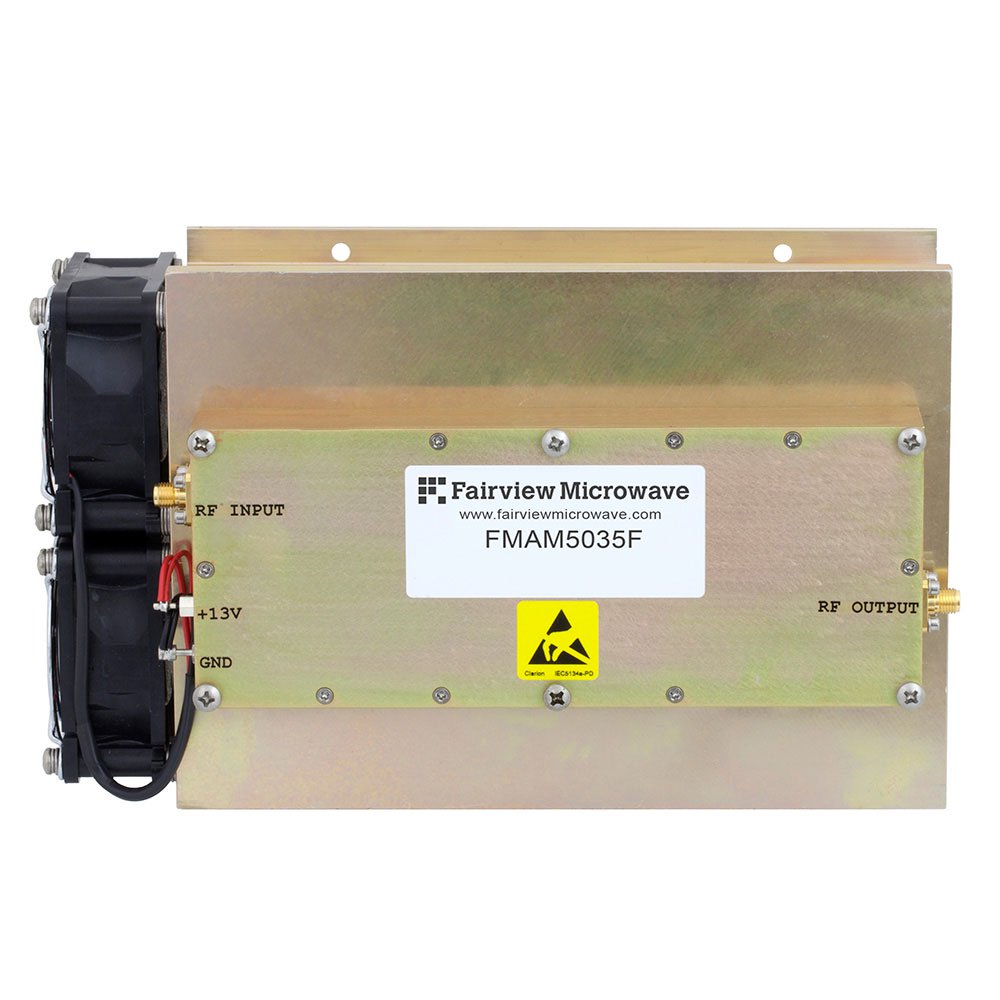

The FMAM5035F is a high-power RF amplifier manufactured by Fairview Microwave, designed for operation within the 800 MHz to 2 GHz frequency range. This module delivers a gain of 41 dB and achieves a saturated output power (Psat) of 12 watts. It features a third-order intercept point (IP3) of 50 dBm, indicating strong linearity for high-power applications. The device utilizes SMA connectors for interface connectivity and includes an integrated heatsink to manage thermal performance during sustained high-power operation.

Feature Summary

• High gain amplification capability with 41 dB signal boost
• High power output handling up to 12 watts saturated power
• Superior linearity characterized by 50 dBm IP3 specification
• Integrated thermal management via attached heatsink

Applications

• Wireless communication base station transmitter chains
• Test and measurement instrumentation signal generation
• Military radar system intermediate frequency stages
• Broadband radio frequency signal boosting

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the specific unit matches the FMAM5035F designation and includes the specified SMA connectors and heatsink assembly. Request original manufacturer documentation to validate technical specifications against current datasheets before integration into critical systems.

Selection Notes

Select this model when designing systems requiring significant power amplification in the sub-2 GHz band. Ensure the application can accommodate the physical dimensions associated with the SMA connector and external heatsink. Verify that the 50 Ohm impedance matches the surrounding circuitry to maintain optimal signal transfer and minimize reflection losses.

Part Context

This component belongs to the Fairview Microwave RF amplifier portfolio, specifically engineered for robust performance in demanding radio frequency environments. It represents a discrete solution for engineers needing reliable high-power amplification without custom design efforts. The product integrates active semiconductor elements with passive matching networks within a shielded enclosure.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative high-power amplifiers from Fairview Microwave or other manufacturers only if they match the 800 MHz to 2 GHz range, 41 dB gain, and 12 W Psat requirements while maintaining compatible SMA interfaces.
