FMAM5039

Overview

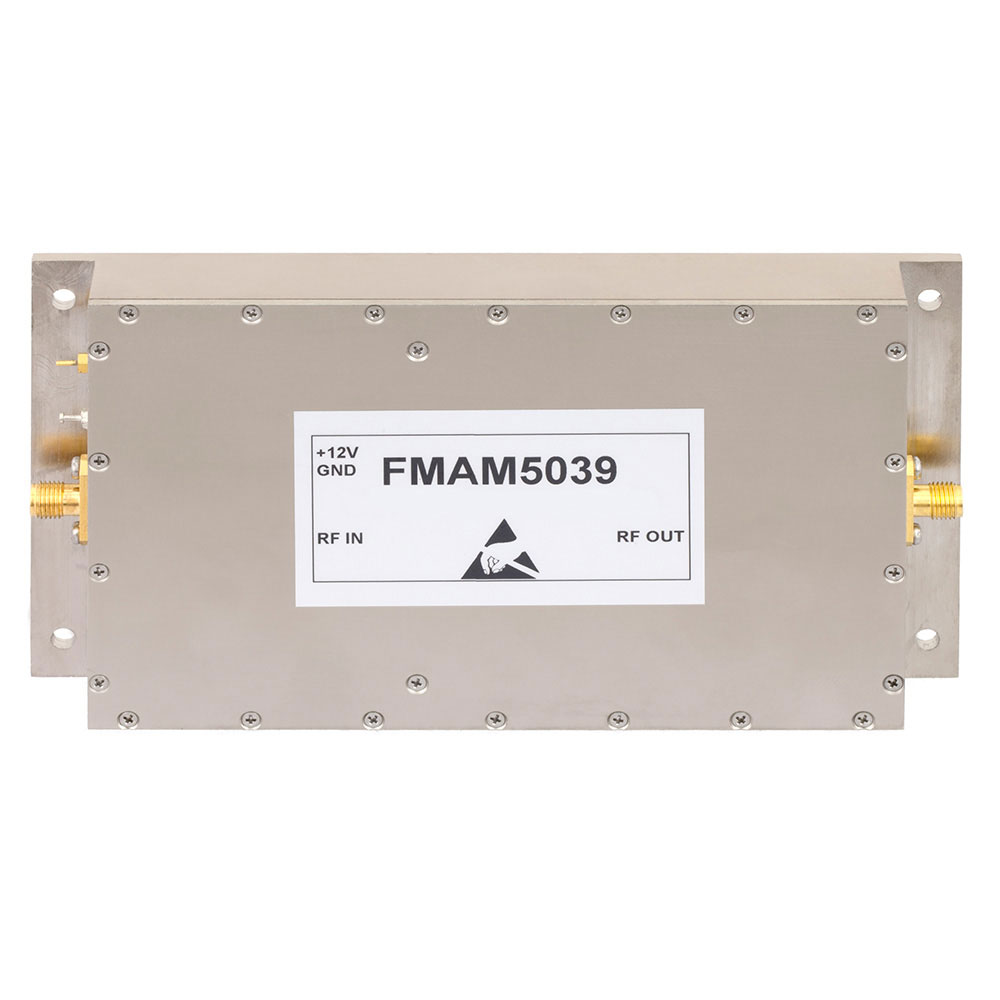

The FMAM5039 is a high-power RF amplifier manufactured by Fairview Microwave, designed for operation within the 860 MHz to 960 MHz frequency range. It delivers a nominal small signal gain of 42 dB and achieves a saturated output power (P1dB) of 25 Watts. The device features a third-order intercept point (IP3) of 58 dBm, ensuring strong linearity for demanding applications. Electrical performance is supported by an operating supply voltage of 11.5 V to 13 V and a current draw of 6.5 A. Signal interfaces utilize SMA connectors for both input and output connections.

Feature Summary

• High power output capability with 25 Watt P1dB saturation
• Broadband operation covering 860 MHz to 960 MHz
• High linearity characterized by 58 dBm IP3
• Standard SMA connector interface for integration

Applications

• Wireless communication base station transmitters
• Test and measurement signal generation equipment
• Industrial, Scientific, and Medical (ISM) radio frequency systems

Procurement Notes

Verify component authenticity through authorized Fairview Microwave distributors or certified partners. Confirm that the received unit matches the specific FMAM5039 designation and includes original manufacturer documentation. Ensure handling procedures comply with electrostatic discharge (ESD) safety standards during installation. Validate electrical specifications against official datasheets prior to system integration to guarantee performance reliability.

Selection Notes

Select the FMAM5039 when high output power and wide bandwidth are required in the sub-GHz spectrum. Its 42 dB gain and 25 W P1dB rating suit applications needing significant signal amplification. Consider the 6.5 A current requirement for adequate power supply design. The SMA interface facilitates straightforward connection to standard RF test gear and transmission lines without requiring custom adapters.

Part Context

Fairview Microwave specializes in RF and microwave components for testing and industrial environments. The FMAM5039 belongs to their high-power amplifier portfolio, targeting users who need reliable signal boosting in the 860-960 MHz band. This model complements other broadband amplifiers in the series, offering a balance of high gain and substantial output power for robust RF system architectures.

Replacement Considerations

No public confirmed substitute part numbers are available for this component.
