FMAM5040

Overview

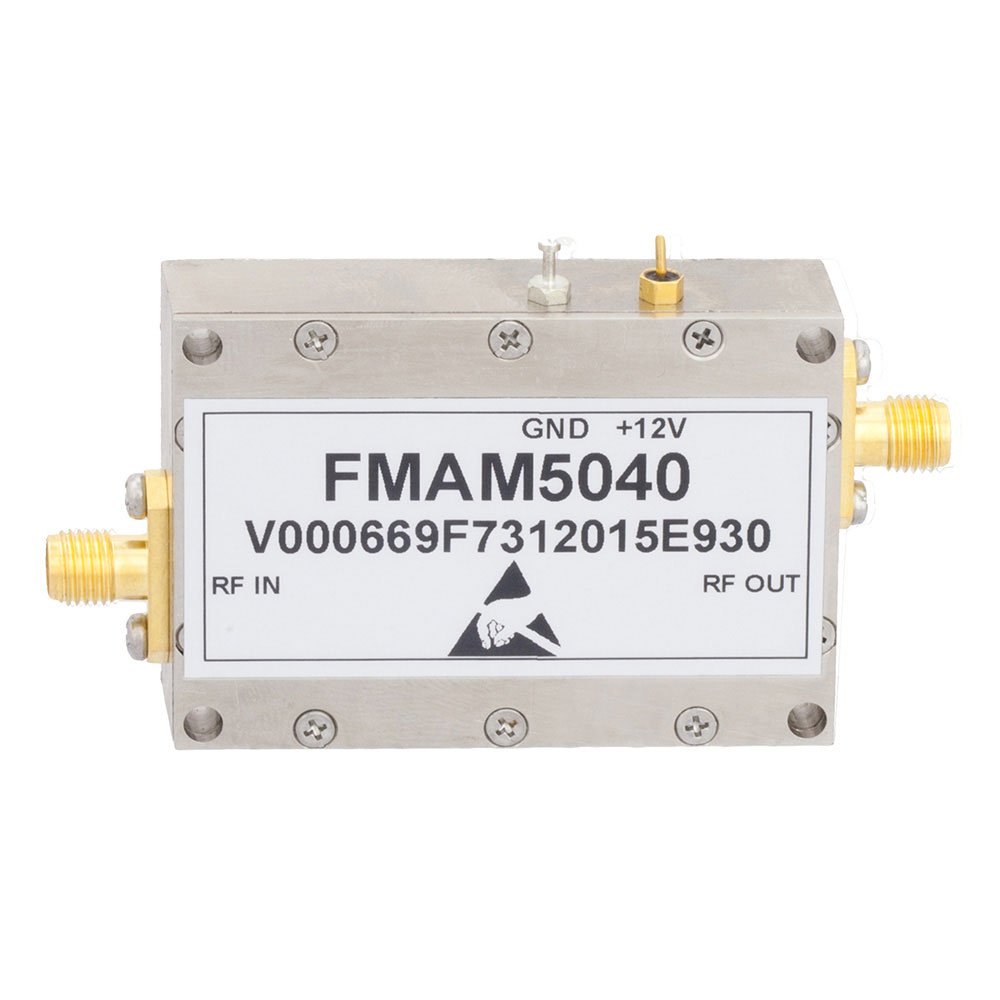

The FMAM5040 is a high-power RF amplifier manufactured by Fairview Microwave, designed for operation within the 860 MHz to 960 MHz frequency range. It delivers a typical gain of 30 dB and achieves a saturated output power (Psat) of 6 Watts at the P1dB compression point. The device features a third-order intercept point (IP3) of 50 dBm, indicating strong linearity characteristics for its class. It operates on a supply voltage between 11.5 V and 13 V and utilizes SMA connectors for both input and output interfaces.

Feature Summary

• High power output capability with 6 Watt P1dB performance
• Linear signal amplification with 50 dBm IP3 specification
• Standardized SMA connector interface for easy integration

Applications

• RF test and measurement instrumentation
• Wireless communication system signal boosting
• Broadband amplifier modules in electronic testing setups

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the received unit matches the specific model designation and connector type. Check for physical damage to the SMA interfaces before installation. Ensure that the operating environment remains within the specified electrical limits to maintain performance integrity and prevent premature failure.

Selection Notes

Select this component when a high-power solution is required specifically within the sub-1 GHz band. Consider the 30 dB gain and 6 Watt output as primary sizing factors for system link budgets. Evaluate the SMA interface compatibility against existing board layouts. Compare thermal management requirements against other available options if higher power densities are needed.

Part Context

This part belongs to Fairview Microwave's portfolio of radio frequency amplifiers. These components are engineered to provide reliable signal conditioning across various industrial and commercial applications. The product line emphasizes robust construction and consistent electrical performance for demanding RF environments.

Replacement Considerations

No public confirmed substitute part numbers are available.
