FMAM5043

Overview

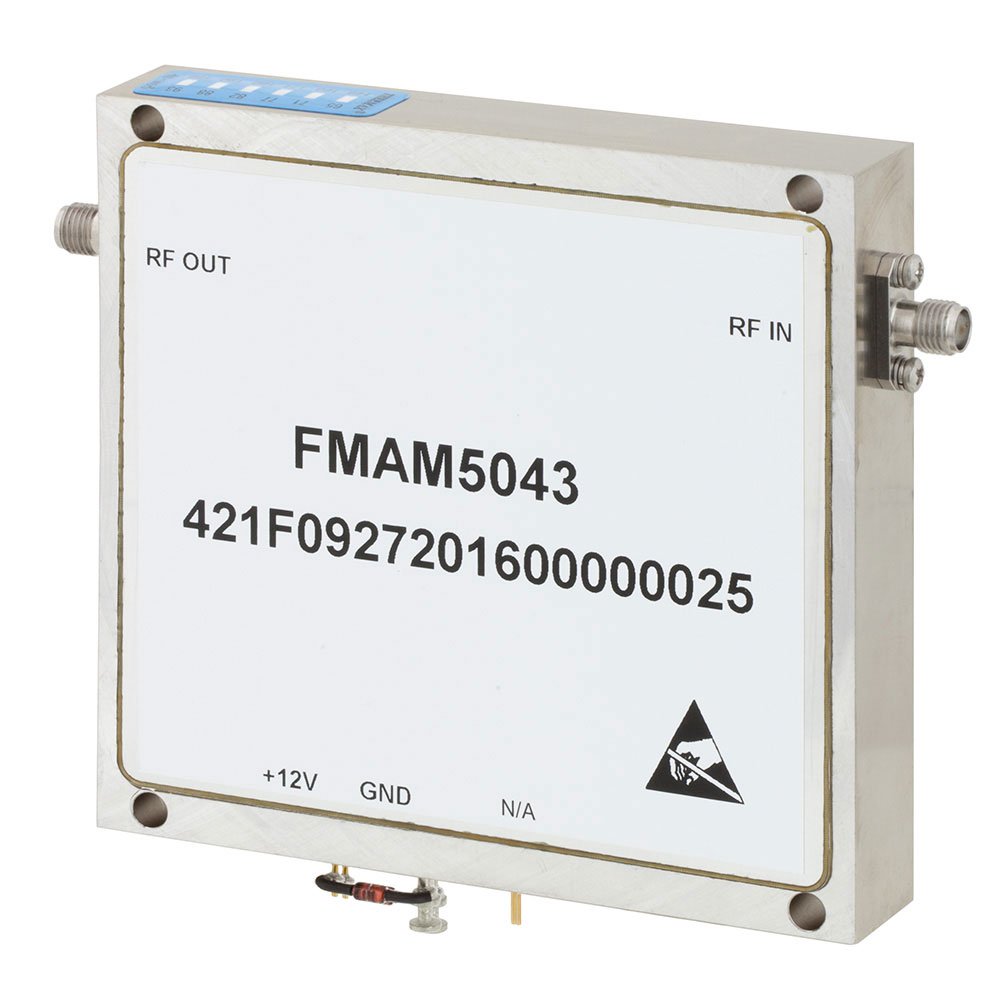

The FMAM5043 is a high-power RF amplifier module manufactured by Fairview Microwave, designed for operation within the 8.5 GHz to 11 GHz frequency range. It delivers a typical P1dB output power of 7 Watts (38.5 dBm) and provides a gain of 30 dB with a flatness of ±0.75 dB. The device requires a maximum supply voltage of 12 Vdc and draws up to 7.5 A of operating current. It features a typical Voltage Standing Wave Ratio (VSWR) of 2:1 and utilizes SMA connectors for interface connections.

Feature Summary

• High power output capability at 7 Watt P1dB
• Operates in the 8.5 GHz to 11 GHz microwave frequency band
• Includes integrated heatsink for thermal management
• Utilizes SMA connector interfaces

Applications

• Microwave communication systems
• Test and measurement instrumentation
• Electronic warfare applications

Procurement Notes

Verify the specific datasheet version and technical specifications directly with Fairview Microwave or authorized distributors before procurement. Confirm that the required supply current of 7.5 A and voltage of 12 Vdc are supported by the system design. Ensure mechanical compatibility with the module's mounting requirements and heatsink integration needs.

Selection Notes

Select this component when a high-output power level of 7 Watts is required in the 8.5-11 GHz range. Consider the significant power supply current demand of 7.5 A during system planning. Evaluate the need for external cooling solutions if the integrated heatsink is insufficient for the specific enclosure environment.

Part Context

This part belongs to the Fairview Microwave RF Amplifier category, specifically within their high-power amplifier lineup. It is categorized as a general-purpose power amplifier module intended for wireless and RF integrated circuit applications requiring substantial signal amplification in microwave bands.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
