FMAM5056

Overview

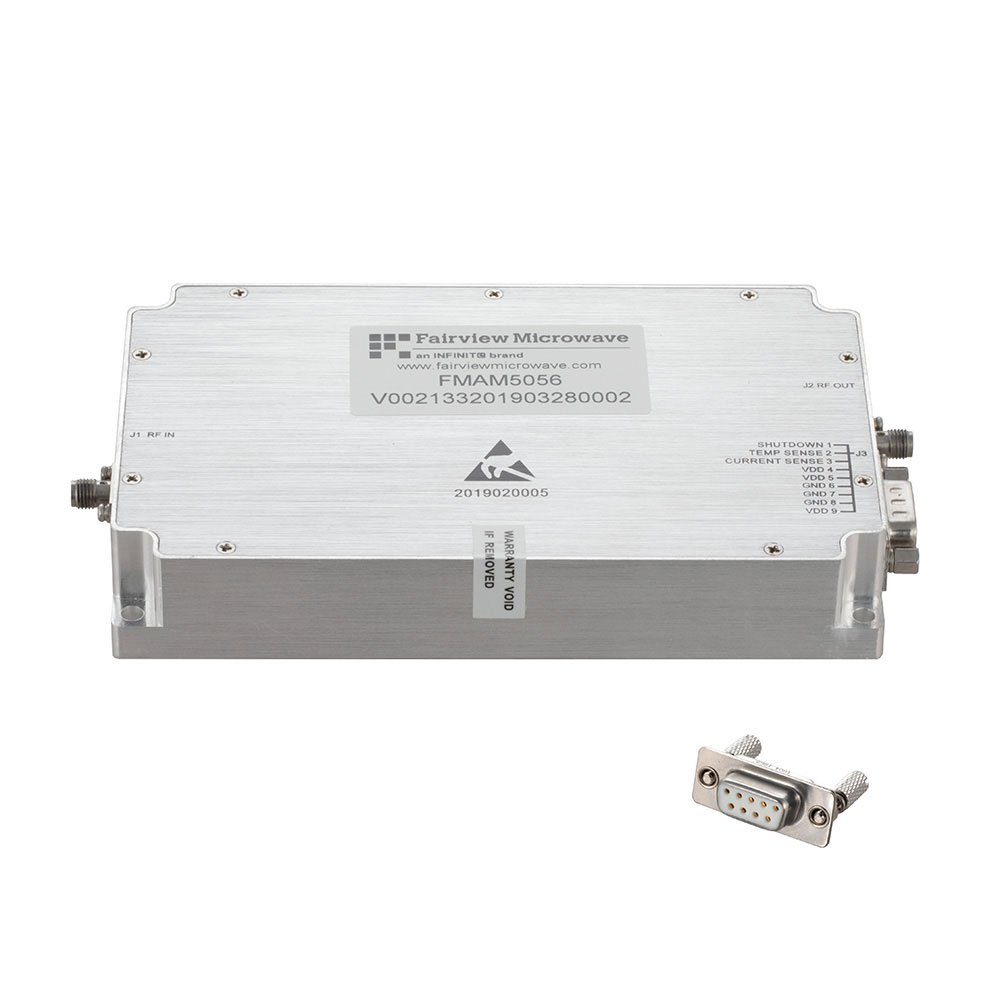

The FMAM5056 is a general-purpose RF power amplifier manufactured by Fairview Microwave. It operates within a frequency range of 1.5 MHz to 100 MHz and provides a gain of 47 dB. The unit requires a supply voltage between 24 V and 32 V, drawing a supply current of 5 A. It features SMA connectors for input and output interfaces.

Feature Summary

• General-purpose RF power amplification
• Wideband operation from 1.5 MHz to 100 MHz
• High gain performance at 47 dB
• SMA connector interface

Applications

• Broadband signal amplification
• RF test and measurement equipment
• General purpose radio frequency systems

Procurement Notes

Verify the specific datasheet version for the FMAM5056 to confirm exact thermal requirements and pinout configurations. Ensure that the power supply circuitry can deliver the required 5 A current at the specified voltage range. Confirm mechanical mounting specifications if heatsinking is necessary for continuous operation.

Selection Notes

Select this component when wideband amplification below 100 MHz is required. The high supply current indicates significant power consumption; ensure adequate thermal management. Compare against other models in the series for specific gain or frequency constraints.

Part Context

This part belongs to the Fairview Microwave RF Amplifier family. These modules are designed for robust performance in various RF applications. The FMAM5056 specifically targets lower frequency bands compared to the GHz-range modules in the same product line.

FAQ

What is the operating frequency range?

The FMAM5056 operates from 1.5 MHz to 100 MHz.

What type of connectors does it use?

It uses SMA connectors for both input and output.
