Product Detailed Parameters
- Description：POWER AMP 500MHZ-2.5GHZ P1DB SMA
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：500MHz ~ 2.5GHz
- P1dB：43dBm
- Gain：50dB
- Noise Figure：-
- RF Type：General Purpose
- Voltage - Supply：24V ~ 32V
- Current - Supply：13A
- Test Frequency：-
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

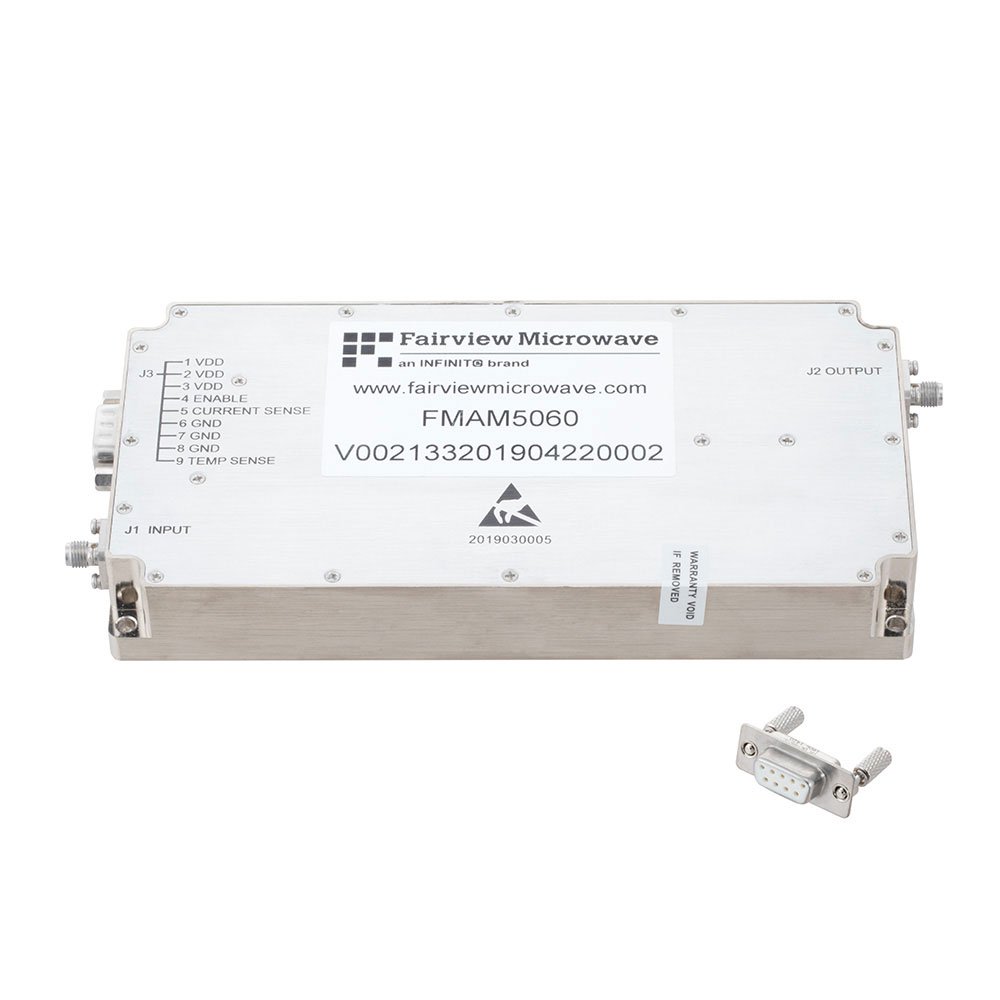

The FMAM5060 is an EMC power amplifier manufactured by Fairview Microwave, designed for operation within the frequency range of 500 MHz to 2.5 GHz. It provides a gain of 50 dB and delivers output power levels between 47.8 dBm and 50 dBm, equivalent to 60.25 Watts. This component is engineered to meet electromagnetic compatibility standards, ensuring reliable performance in demanding RF applications requiring high power amplification across its specified bandwidth.
Feature Summary
- Designed specifically for Electromagnetic Compatibility (EMC) testing environments
- Provides high output power capability up to 60.25 Watts
- Operates with a fixed gain of 50 dB across the designated frequency band
Applications
- Electromagnetic Compatibility (EMC) emission testing
- Radiated immunity testing setups
- RF signal generation for compliance verification
Procurement Notes
Verify the specific output power variant required, as specifications indicate a range of 47.8 to 50 dBm. Confirm connector types and cooling requirements suitable for continuous high-power operation. Ensure the supplier provides documentation confirming compliance with relevant EMC testing standards for the intended application environment.
Selection Notes
Select this model when high-power amplification is required for frequencies between 500 MHz and 2.5 GHz. The 50 dB gain suits applications needing significant signal boosting. Consider thermal management solutions due to the high output power levels. Verify that the amplifier's power range aligns with the specific test standards being applied.
Part Context
Fairview Microwave produces specialized RF components for testing and measurement. The FMAM5060 belongs to their EMC power amplifier series, distinct from general-purpose low-noise or broadband amplifiers. It addresses niche requirements in regulatory compliance testing where precise high-power signal generation is critical.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data.
