Product Detailed Parameters
- Description：POWER AMP 1000MHZ-2GHZ P1DB SMA
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：1GHz ~ 2GHz
- P1dB：-
- Gain：53dB
- Noise Figure：-
- RF Type：General Purpose
- Voltage - Supply：24V ~ 32V
- Current - Supply：20A
- Test Frequency：-
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

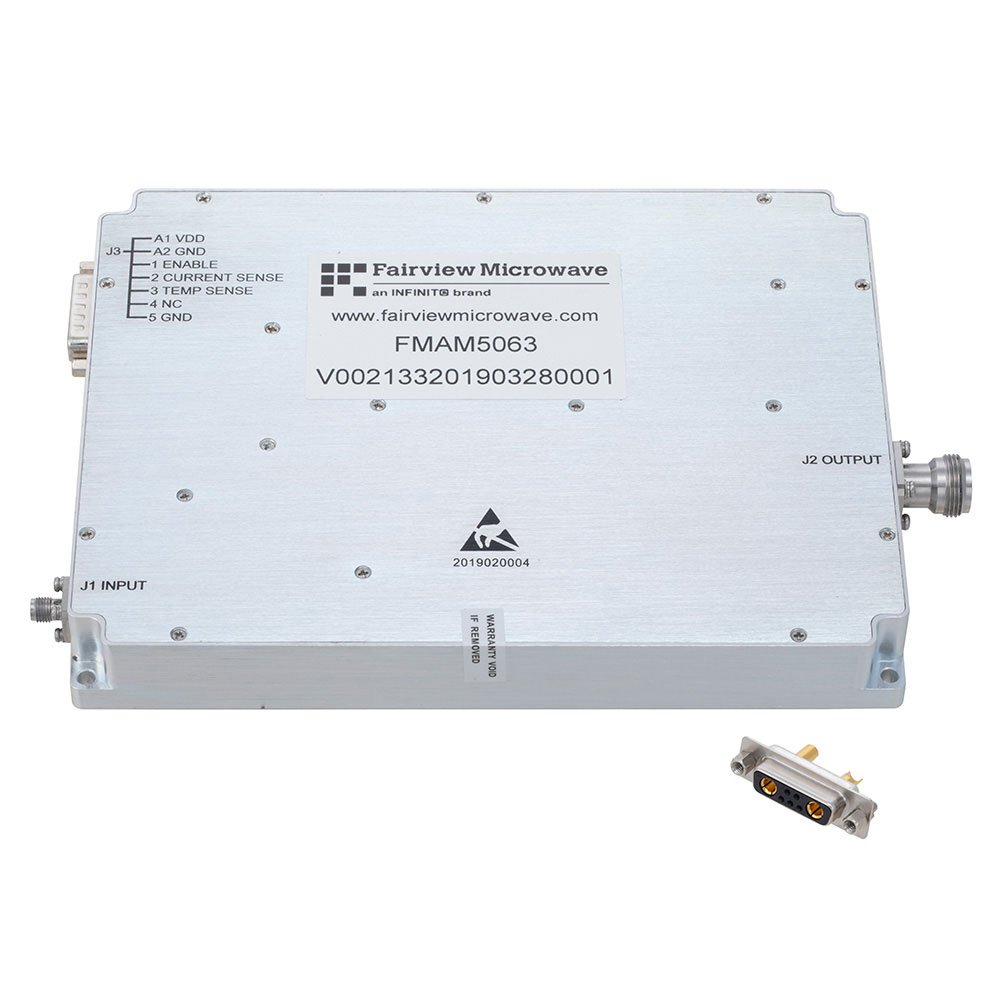

The FMAM5063 is a general-purpose RF power amplifier manufactured by Fairview Microwave, designed for operation within the 1 GHz to 2 GHz frequency range. This component delivers a gain of 53 dB and requires a supply voltage between 24 V and 32 V. It draws a supply current of 20 A during operation. The device utilizes SMA connectors for both input and output interfaces. It is configured for chassis mounting and is packaged in a bag for distribution.
Feature Summary
- Provides high gain amplification suitable for general-purpose RF applications
- Operates effectively across the 1 GHz to 2 GHz frequency spectrum
- Features SMA connector interfaces for standard integration
Applications
- General-purpose RF signal amplification
- Chassis-mounted RF system integration
- Broadband communication equipment
Procurement Notes
Verify the specific datasheet version for the FMAM5063 to confirm detailed electrical characteristics and mechanical dimensions. Ensure that the required 24 V to 32 V power supply and 20 A current capacity are available in the target application environment. Confirm chassis mounting requirements and SMA interface compatibility before procurement.
Selection Notes
Select this model when a high-gain solution is required for frequencies between 1 GHz and 2 GHz. The significant 20 A supply current requirement necessitates robust power management infrastructure. Verify that the chassis mounting style aligns with the physical constraints of the intended enclosure design.
Part Context
This component belongs to the Fairview Microwave RF Amplifier product line, specifically categorized as a general-purpose amplifier. It is distinct from low-noise or specialized military-grade variants within the manufacturer's portfolio, focusing on broad utility within its specified frequency band.
Replacement Considerations
No public substitute part numbers are documented for this specific model. Evaluate other Fairview Microwave amplifiers with similar frequency ranges and gain specifications if direct replacement is necessary.
