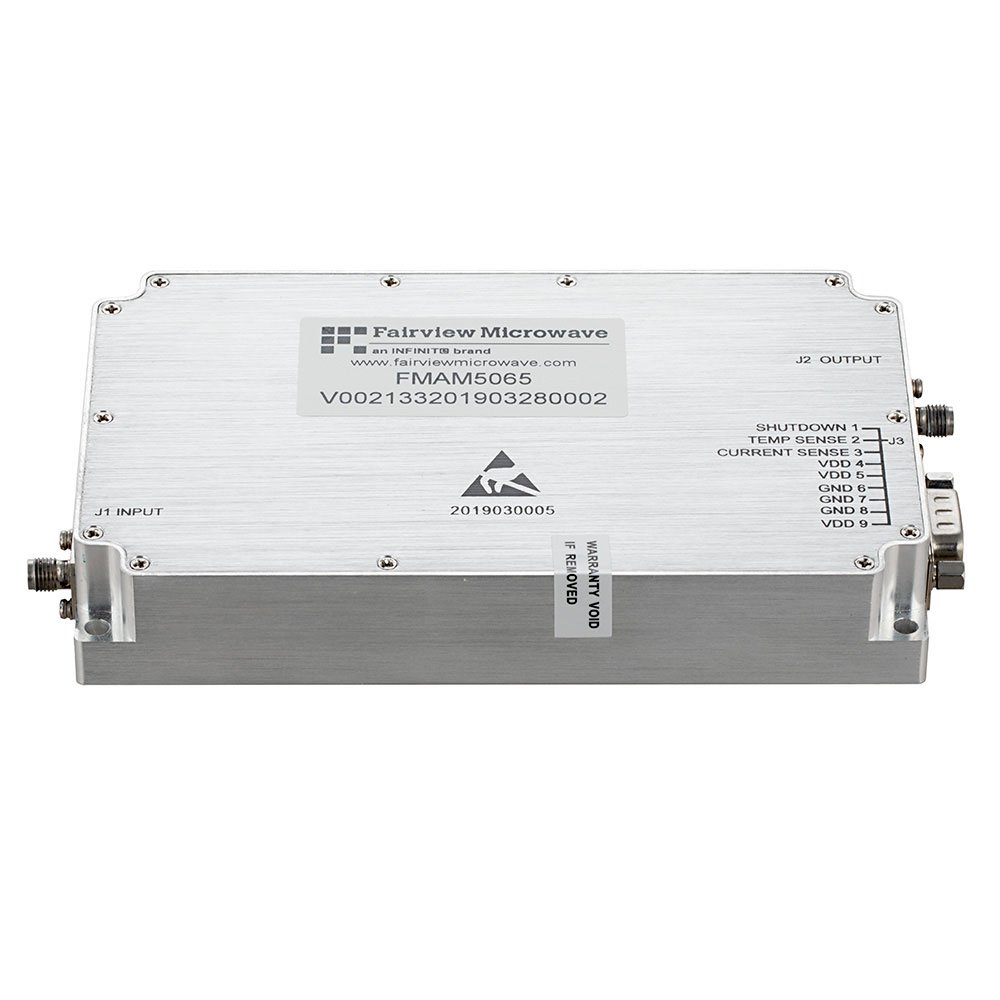

FMAM5065

Overview

The FMAM5065 is a general-purpose RF power amplifier manufactured by Fairview Microwave, designed for operation within the 20 MHz to 520 MHz frequency range. It delivers a gain of 51 dB and supports an output power of 100 W (50 dBm). The unit requires a supply voltage between 24 V and 32 V and draws a supply current of 9 A. This component is categorized under EMC power amplifiers and wireless & RF integrated circuits.

Feature Summary

• Provides high-output power capability suitable for demanding RF applications
• Operates across a broad frequency spectrum from 20 MHz to 520 MHz
• Engineered for use in electromagnetic compatibility testing environments

Applications

• Electromagnetic compatibility (EMC) testing systems
• General-purpose RF signal generation
• Broadband RF power amplification

Procurement Notes

Verify specific connector types and thermal management requirements before integration. Confirm that the host system can provide the necessary 24 V to 32 V DC supply with adequate current capacity. Ensure the application environment matches the specified frequency range. Check for any regional distribution restrictions or lead time variations with authorized suppliers.

Selection Notes

Select this model when high output power is required at lower RF frequencies. Compare against other models in the FMAM series for different frequency bands or power levels. Consider the significant current draw and ensure power supply infrastructure supports the 9 A requirement. Evaluate thermal dissipation needs due to high power output.

Part Context

This component belongs to the Fairview Microwave FMAM series of radio frequency amplifiers. It is classified as a general-purpose RF amplifier and falls under the broader category of wireless and RF integrated circuits. The manufacturer specializes in microwave and RF components for various industrial and communication applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Fairview Microwave directly for equivalent or upgraded models within their product line.
