FMAM5072

Overview

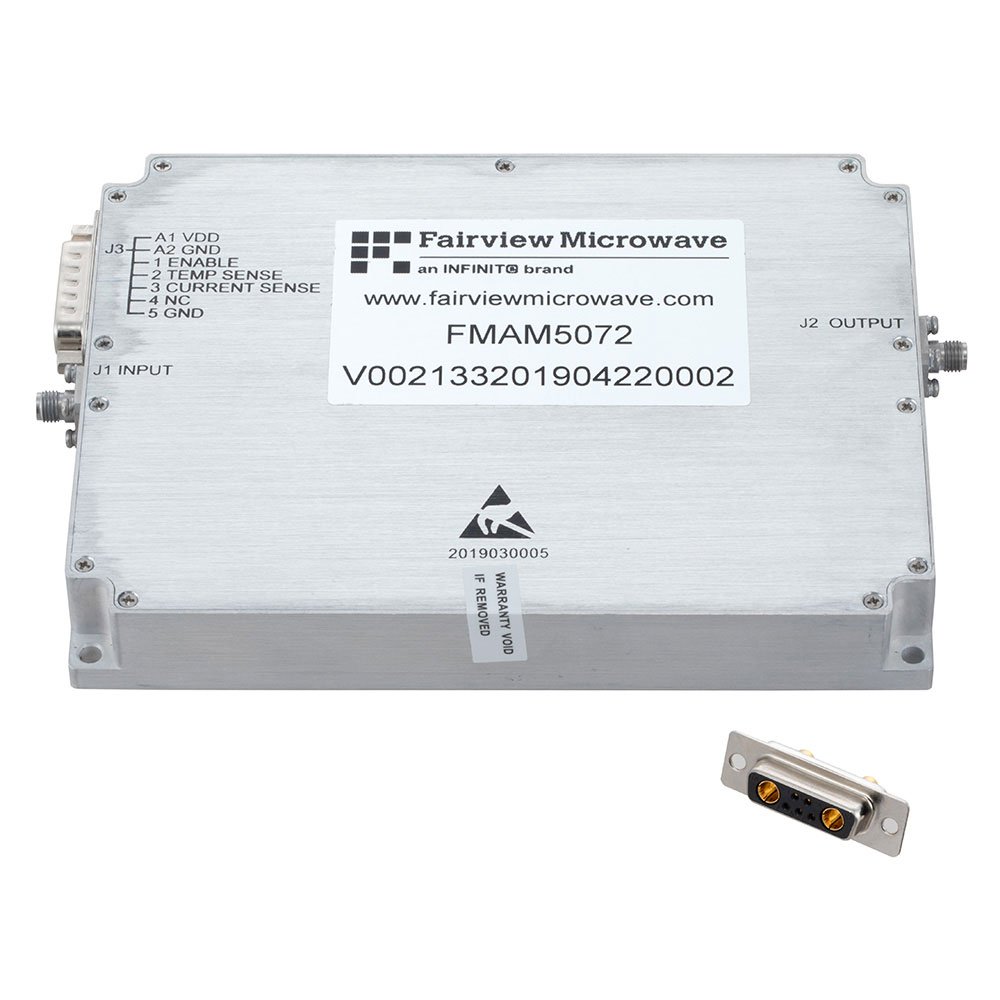

The FMAM5072 is a general-purpose RF power amplifier manufactured by Fairview Microwave, designed for operation within the 8 GHz to 12 GHz frequency range. This component features a small signal gain of 46 dB with a gain flatness of ±2 dB. It delivers a saturated output power (Psat) of 46 dBm and maintains a P1dB compression point at 8000 MHz. The device utilizes SMA connectors for interface compatibility and is categorized as an RF amplifier IC suitable for high-frequency applications.

Feature Summary

• Provides high small signal gain of 46 dB across the designated microwave frequency band
• Delivers substantial saturated output power rated at 46 dBm
• Maintains consistent performance with specified gain flatness of ±2 dB
• Features SMA connector interfaces for standard integration

Applications

• Microwave communication systems requiring high gain amplification
• Test and measurement equipment operating in the 8-12 GHz range
• Radar system components needing high output power

Procurement Notes

Verify current availability status as this part may be obsolete or discontinued. Confirm specific datasheet revisions and connector types before procurement. Ensure supply chain sources provide authentic documentation matching the Fairview Microwave specifications. Check for alternative sourcing options if direct manufacturing support is unavailable.

Selection Notes

Select this component for applications requiring high gain and high saturated power in the 8-12 GHz band. Consider the SMA interface for ease of integration into existing test setups. Evaluate thermal management requirements given the high output power capabilities. Verify that the gain flatness meets system linearity requirements.

Part Context

Fairview Microwave produces specialized RF amplifiers for demanding microwave applications. The FMAM5072 belongs to their general-purpose RF amplifier series, focusing on high-performance characteristics in the C and X bands. These components are typically used in professional engineering environments rather than consumer electronics.

Replacement Considerations

Check for active equivalents from Fairview Microwave or other manufacturers offering similar 8-12 GHz power amplifiers. Verify pinout compatibility and connector types when substituting. Ensure replacement parts meet the 46 dB gain and 46 dBm Psat requirements.
