FMAM5077

Overview

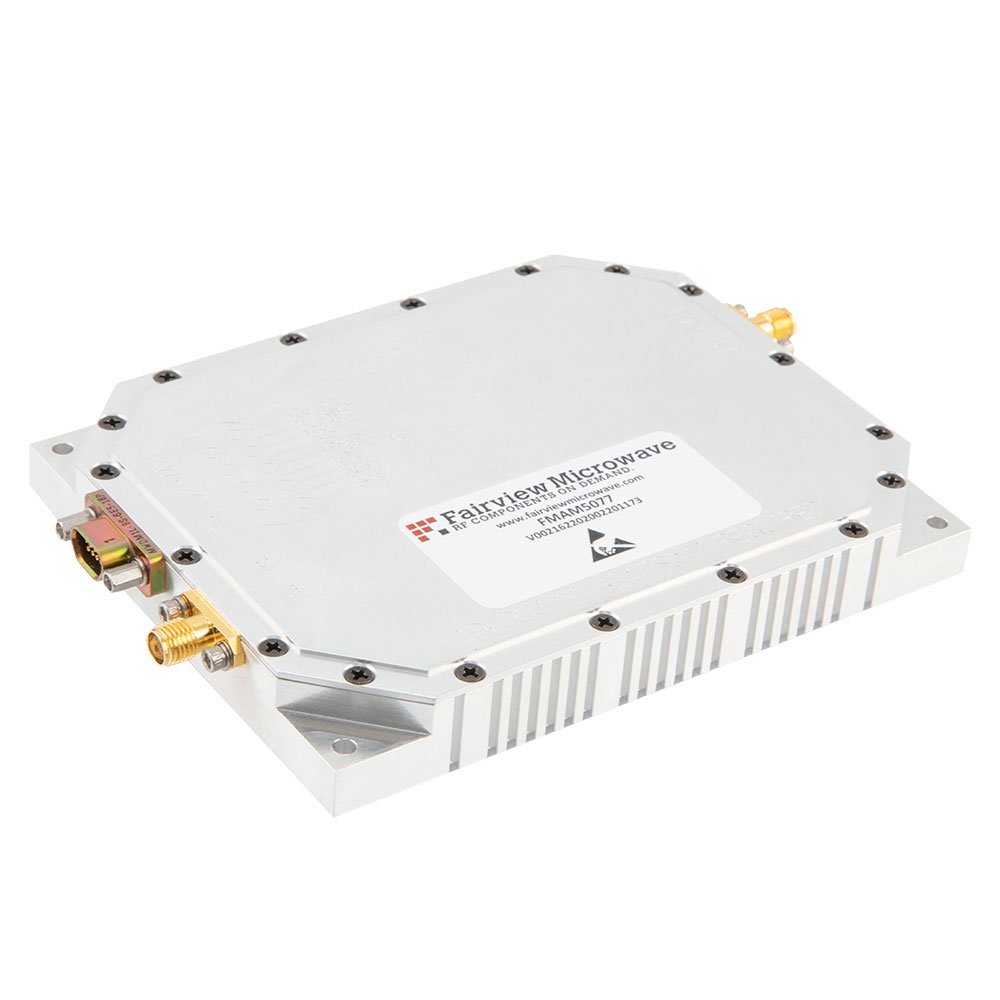

The FMAM5077 is a GaN power amplifier module designed for L-band applications, operating within the 800 MHz to 2 GHz frequency range. It delivers a saturated output power of 45W and achieves an efficiency of 45% under Class AB operation. The unit requires a supply voltage between 27V and 28V and utilizes SMA connectors for RF interfacing.

Feature Summary

• Utilizes Gallium Nitride (GaN) technology for high-power performance
• Operates in Class AB mode for optimized efficiency
• Designed specifically for L-band frequency applications

Applications

• L-band radar systems
• Military communication transmitters
• High-power signal generation

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the received unit matches the specific FMAM5077 designation and includes original manufacturer documentation. Ensure handling procedures comply with electrostatic discharge protocols during installation.

Selection Notes

Select this module when high output power and efficiency are required in the L-band spectrum. Consider the 27V to 28V supply requirement and SMA interface compatibility. Evaluate thermal management needs due to the 45W power rating and ensure the application environment supports the specified operating conditions.

Part Context

This component belongs to Fairview Microwave's portfolio of RF amplifiers. It represents a specialized solution for L-band frequencies, distinguishing itself from other modules by its specific 45W output capability and GaN construction. It serves as a dedicated power amplification stage for demanding radio frequency applications.

Replacement Considerations

No public confirmed substitute part numbers are available.
