Product Detailed Parameters
- Description：POWER AMP 4400MHZ-4.9GHZ P1DB SM
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：4.4GHz ~ 4.9GHz
- P1dB：33dBm
- Gain：48dB
- Noise Figure：-
- RF Type：General Purpose
- Voltage - Supply：27V ~ 32V
- Current - Supply：3.6A
- Test Frequency：4.4GHz
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

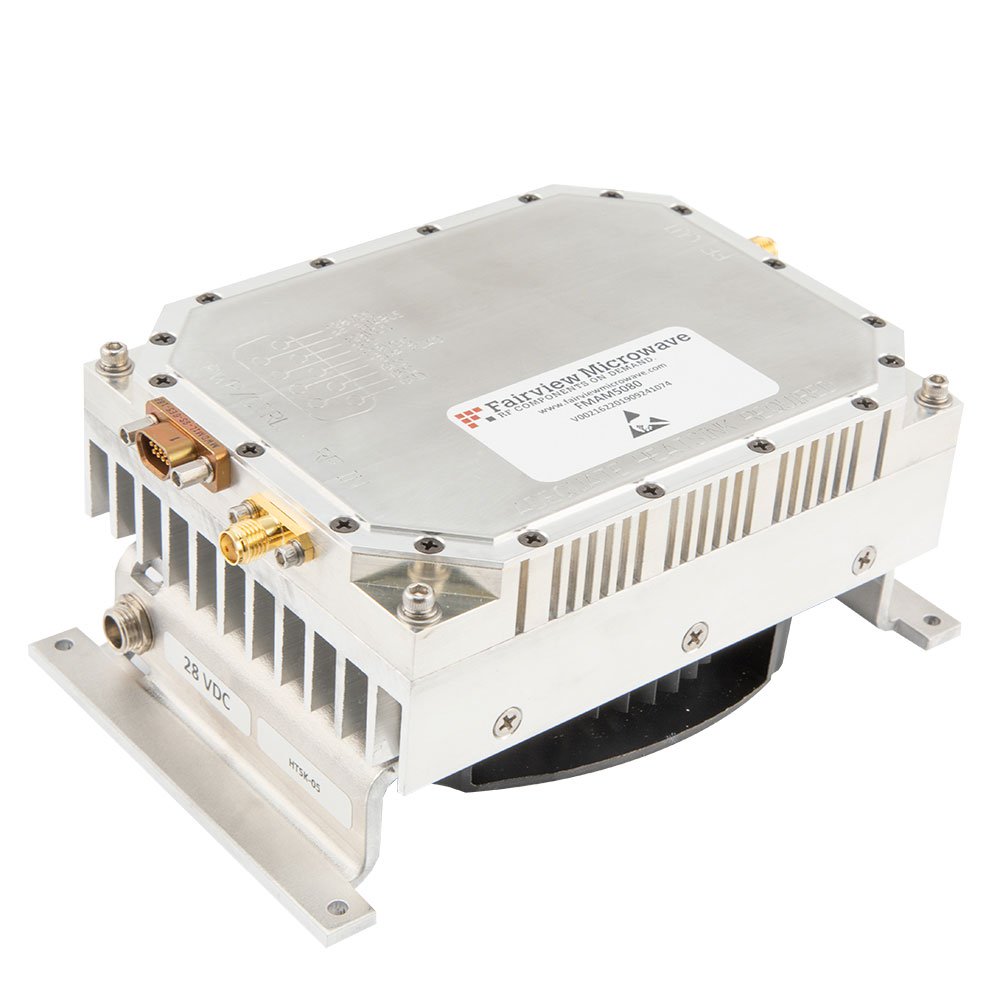

The FMAM5080 is a power amplifier manufactured by Fairview Microwave, designed for operation within the 4.4 GHz to 4.9 GHz frequency range. It delivers a gain of 48 dB and requires an operating supply voltage between 27 V and 32 V. The device draws an operating supply current of 3.6 A during active use.
Feature Summary
- Provides high gain amplification in the specified microwave frequency band
- Operates with a dedicated high-voltage DC power supply requirement
- Engineered as a power amplifier for signal transmission applications
Applications
- Microwave communication systems
- Test and measurement instrumentation
- Broadband signal processing equipment
Procurement Notes
Verify the specific datasheet version for complete electrical characteristics and thermal management requirements before integration. Confirm that the power supply unit can sustain the required 3.6 A current draw at voltages up to 32 V without instability. Ensure mechanical mounting provisions align with the heatsink specifications if applicable. Check for any regional distribution restrictions or lead time variations associated with this component series.
Selection Notes
Select this component when a fixed 48 dB gain is required across the 4.4 GHz to 4.9 GHz spectrum. Consider the significant power consumption and heat dissipation needs due to the 3.6 A current draw. Evaluate compatibility with existing RF infrastructure regarding impedance matching and connector types. This model suits designs prioritizing high output power over low noise performance in the C-band or similar microwave ranges.
Part Context
This part belongs to the Fairview Microwave RF Amplifier product line, which specializes in broadband and narrowband solutions for wireless and test applications. The FMAM5080 represents a high-power segment of their portfolio, distinct from low-noise or medium-power variants found in other series codes.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires verifying identical frequency coverage, gain flatness, and power supply constraints.
