FMAM5107F

Overview

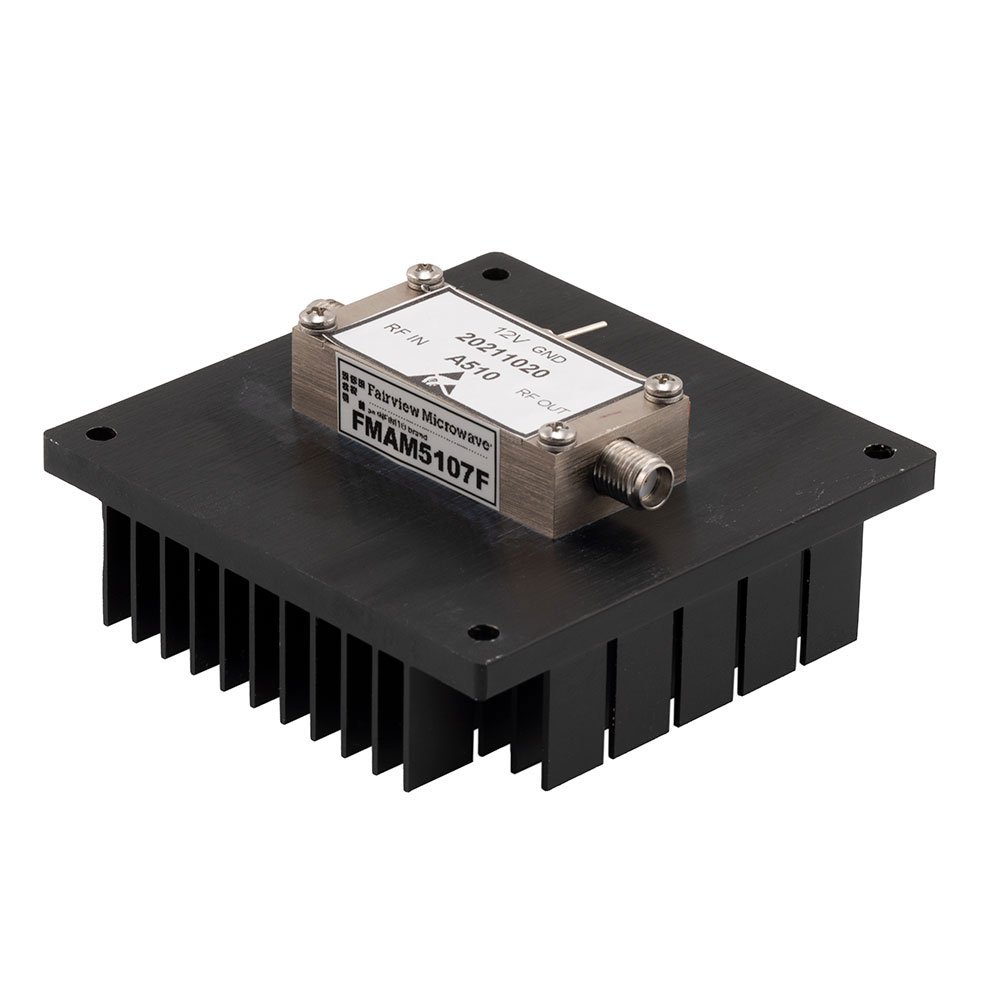

The FMAM5107F is a temperature-compensated low noise amplifier manufactured by Fairview Microwave. It operates within a frequency range of 6 GHz to 18 GHz and provides a minimum gain of 35 dB. The device features a 20 dBm P1dB output power level and utilizes SMA connectors with an integrated heatsink for thermal management. It requires a DC supply voltage between 12 V and 15 V, drawing a typical current of 400 mA. Constructed using GaAs technology, the unit supports operation across a temperature range from -55°C to +85°C.

Feature Summary

• Temperature compensation ensures stable performance across varying environmental conditions
• Integrated heatsink design facilitates efficient thermal dissipation during operation
• Low noise architecture optimized for sensitive signal reception applications

Applications

• Satellite communication ground stations
• Point-to-point microwave radio links
• Electronic warfare systems requiring wideband amplification

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the received unit matches the specific model designation and includes the required SMA interface and heatsink configuration. Ensure storage and handling procedures comply with electrostatic discharge protection standards to maintain device integrity prior to installation.

Selection Notes

Select this component when a wideband low noise solution is required for frequencies spanning 6 GHz to 18 GHz. The built-in temperature compensation makes it suitable for environments with significant thermal fluctuations. Consider the SMA connector type and external heatsink requirement during mechanical integration planning to ensure proper physical fit and thermal contact.

Part Context

This amplifier belongs to Fairview Microwave's portfolio of RF amplifiers designed for high-frequency applications. It complements other models in the series that cover different frequency bands such as 26.5-40 GHz or 2-8 GHz, providing engineers with scalable solutions for various wireless infrastructure needs while maintaining consistent interface and mounting characteristics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
