FMAM63000

Overview

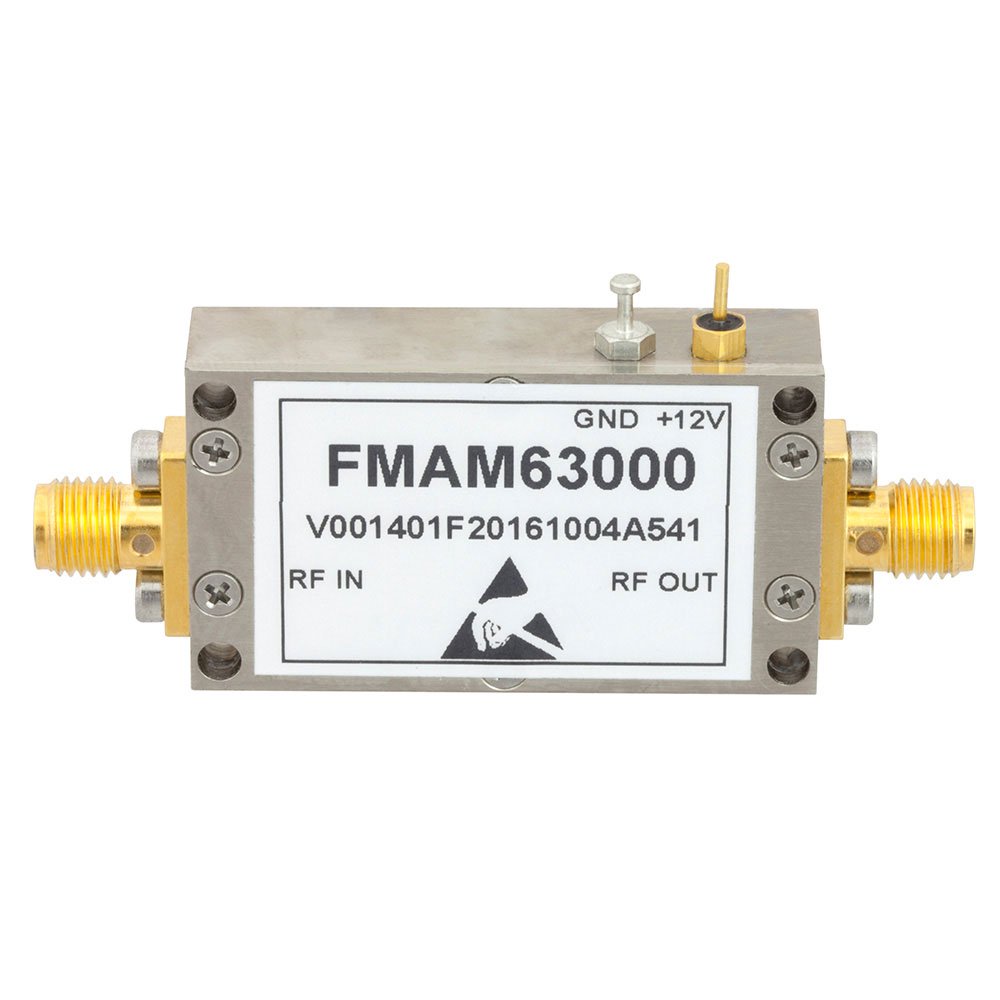

The FMAM63000 is a low noise amplifier manufactured by Fairview Microwave, designed for operation within the 10 MHz to 1 GHz frequency range. This component provides a gain of 32 dB and features a 17 dBm P1dB compression point. It incorporates input protection mechanisms and achieves a noise figure of 1 dB. The device utilizes SMA connectors for interface connections. The product status is listed as obsolete, indicating it is no longer in active production.

Feature Summary

• Low noise performance with a 1 dB noise figure
• Input protection circuitry integrated into the design
• SMA connector interface for signal transmission

Applications

• RF signal amplification in communication systems
• Test and measurement equipment front ends
• Receiver chain signal conditioning

Procurement Notes

Verify availability through authorized distributors or surplus channels due to the obsolete product status. Confirm that the SMA interface and electrical specifications meet system requirements before integration. Check for potential end-of-life restrictions or supply chain limitations associated with discontinued components.

Selection Notes

Consider the 10 MHz to 1 GHz operating range when evaluating suitability for specific frequency bands. The 32 dB gain and 1 dB noise figure are key parameters for sensitive receiver applications. Ensure compatibility with existing SMA connector infrastructure and verify power supply requirements against system constraints.

Part Context

This component belongs to the Fairview Microwave RF amplifier family, specifically categorized as a low noise amplifier. It is part of a series that includes variants like the FMAM63002, which operates at higher frequencies up to 1.5 GHz. The FMAM63000 represents an earlier generation or lower frequency option within this product line.

Replacement Considerations

The FMAM63002 is a related model from the same manufacturer but operates from 30 MHz to 1.5 GHz with different gain and noise characteristics. Direct substitution requires verification of frequency coverage and electrical parameter compatibility.
