FMAM63001

Overview

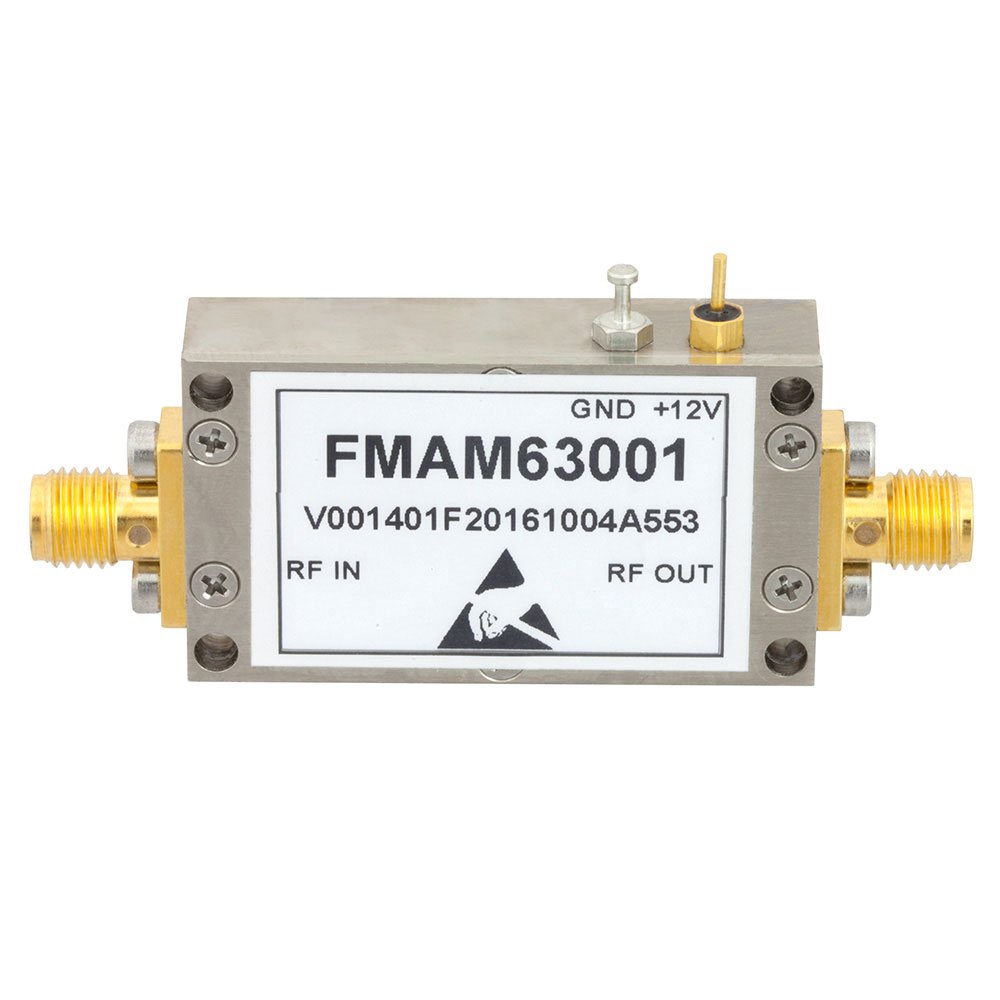

The FMAM63001 is a low noise amplifier manufactured by Fairview Microwave, designed for operation within the frequency range of 10 MHz to 1 GHz. It features an input protection mechanism and delivers a gain of 40 dB with a noise figure of 1 dB. The device provides a 1 dB compression point (P1dB) of 17 dBm and utilizes SMA connectors for interfacing.

Feature Summary

• Input protection circuitry integrated into the design
• Low noise figure specification for signal integrity
• High gain capability for weak signal amplification

Applications

• Radar systems
• Wireless communication modules
• RF signal processing circuits

Procurement Notes

Verify the specific datasheet version for the FMAM63001 before integration. Confirm that the SMA interface and operating voltage requirements align with your system design. Ensure input protection specifications meet your environmental standards. Check availability status as distribution may vary by region.

Selection Notes

Select this component when a high-gain, low-noise solution is required for frequencies up to 1 GHz. The 1 dB noise figure makes it suitable for sensitive receiver front-ends. Verify that the 40 dB gain does not cause saturation in your specific application chain. Ensure the SMA connector type matches your board layout.

Part Context

This part belongs to the Fairview Microwave RF Amplifier category, specifically under Wireless & RF Integrated Circuits. It is distinct from other models like the FMAM63002, which operates at different frequencies and gain levels. The product is packaged individually in bags for handling.

Replacement Considerations

No officially confirmed substitute part numbers are available in the provided documentation. Evaluate alternatives based on matching frequency ranges, gain, and noise figure specifications if direct replacement is necessary.
