FMAM63004

Overview

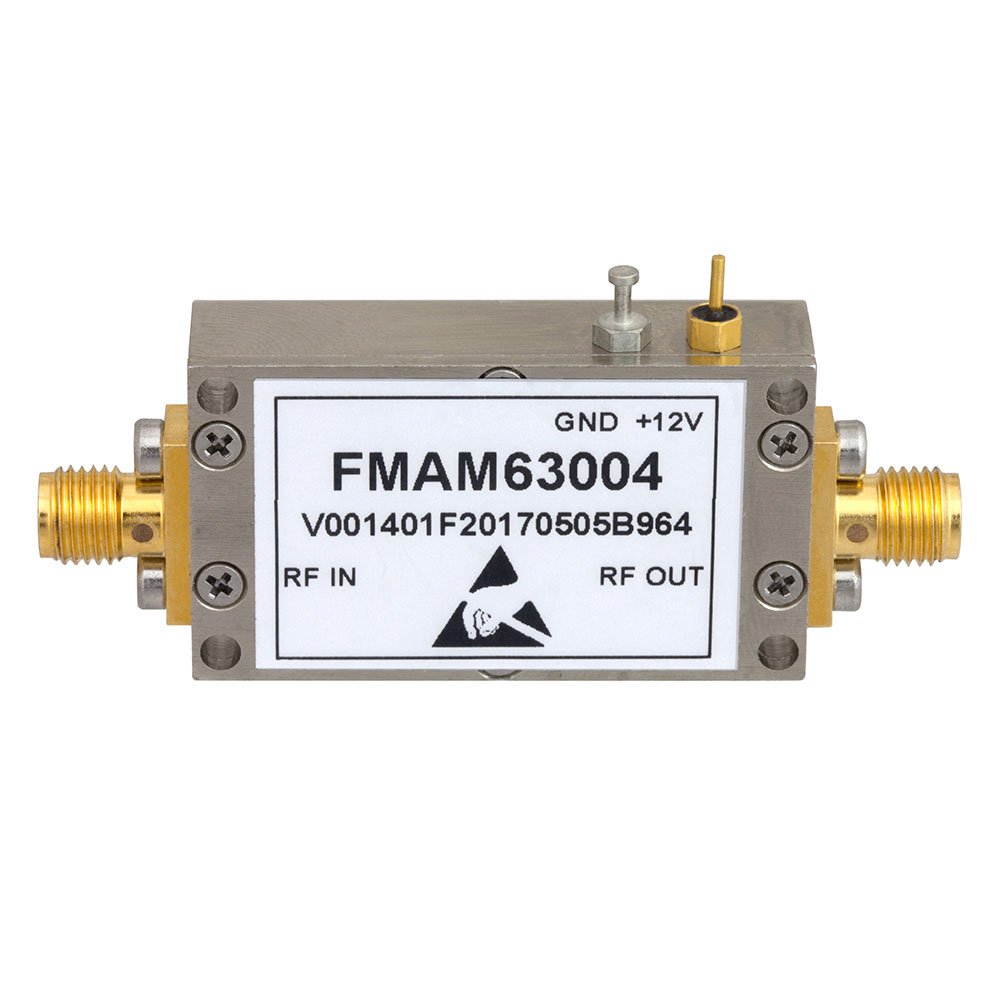

The FMAM63004 is a low noise amplifier manufactured by Fairview Microwave, designed for RF applications within the 900 MHz to 1.2 GHz frequency range. It provides a gain of 30 dB with a noise figure of 1.2 dB. The unit features an input-protected architecture and delivers a 1 dB compression point (P1dB) of 10 dBm. It utilizes SMA connectors for interfacing and is supplied in bag packaging.

Feature Summary

• Input protection circuitry integrated into the amplifier design
• Low noise figure specification optimized for signal integrity
• SMA connector interface for standard RF connections

Applications

• RF signal amplification in communication systems
• Test and measurement equipment front ends
• Wireless infrastructure components

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the received unit matches the FMAM63004 designation and includes original manufacturer documentation. Inspect packaging integrity upon receipt to ensure the SMA connectors are undamaged. Validate performance specifications against the official datasheet prior to integration into critical systems.

Selection Notes

Select this model when operation requires amplification specifically between 900 MHz and 1.2 GHz. The 30 dB gain and 1.2 dB noise figure make it suitable for sensitive receiver stages. Ensure system requirements align with the 10 dBm P1dB output capability. Verify that SMA interfaces are compatible with existing board layouts and cable assemblies.

Part Context

This component belongs to the Fairview Microwave RF Amplifier product line. It falls under the Wireless & RF Integrated Circuits subcategory. The manufacturer specializes in providing specialized RF modules and amplifiers for various industrial and commercial applications.

Replacement Considerations

Consult Fairview Microwave technical support for verified substitute part numbers. Cross-reference specifications such as gain, noise figure, and frequency range when evaluating alternatives.
